STAIR TREADS

We offer straight stair treads in grating, slit plank type flooring and plank type flooring. The majority of the stair treads are kept in stock for immediate delivery.

We manufacture stair treads in several different materials. Many of the stair treads are stocked for immediate delivery. Custom-made stair treads are manufactured according to measurements from the customer and are made to order.

Stair treads

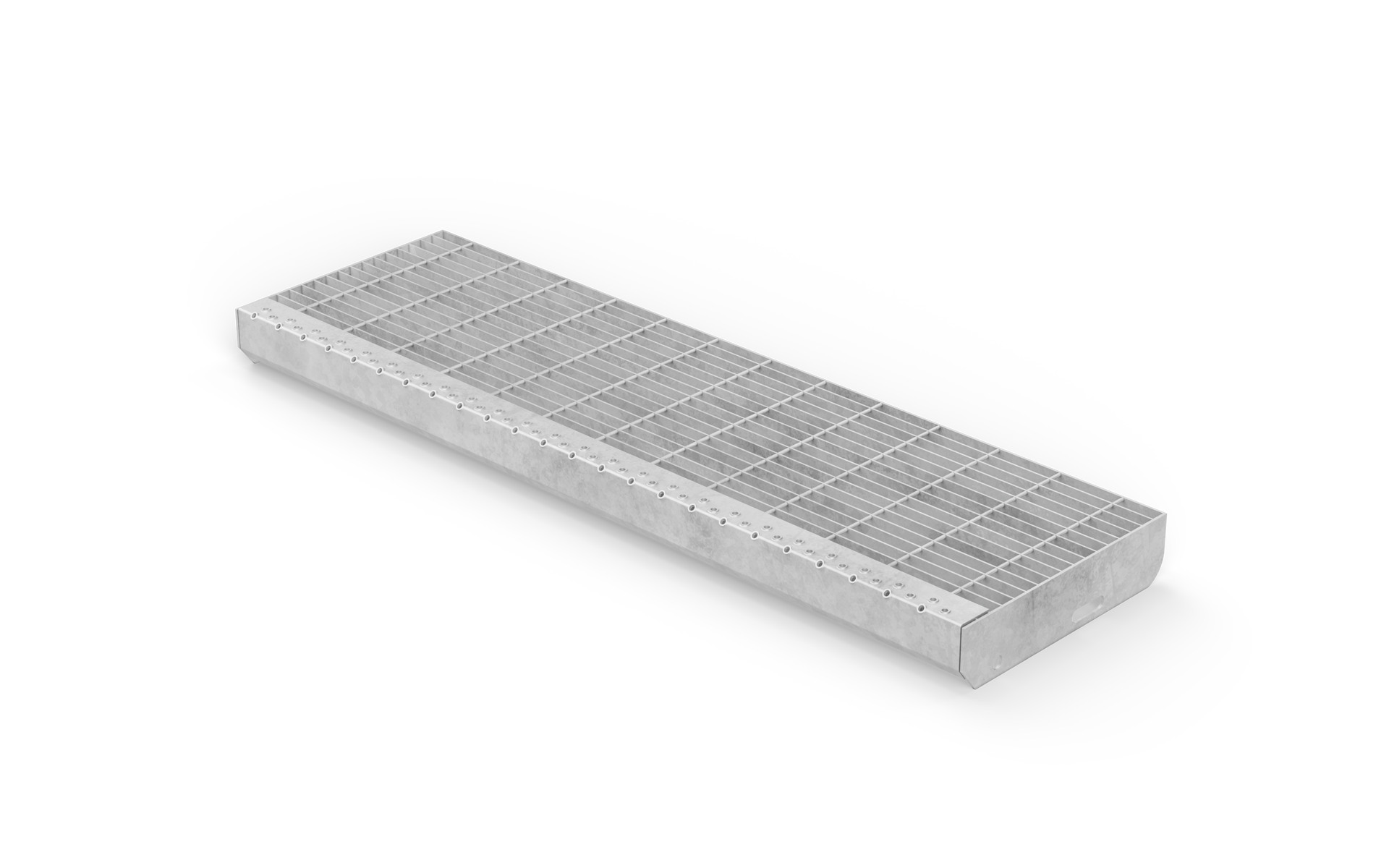

We manufacture stair treads from grating in several different mesh width openings and materials. TH6-S with mesh opening c/c 34 x 75 mm is our most common stair tread. This stair tread is also on stock for quick deliveries. If you need a tighter mesh width opening our stair tread TN6-S with mesh width opening c/c 17 x 75 mm is usually used.

We also offer stair treads in plank type flooring and slit plank type flooring. Please contact us for more information about different mesh widths and alternative versions.

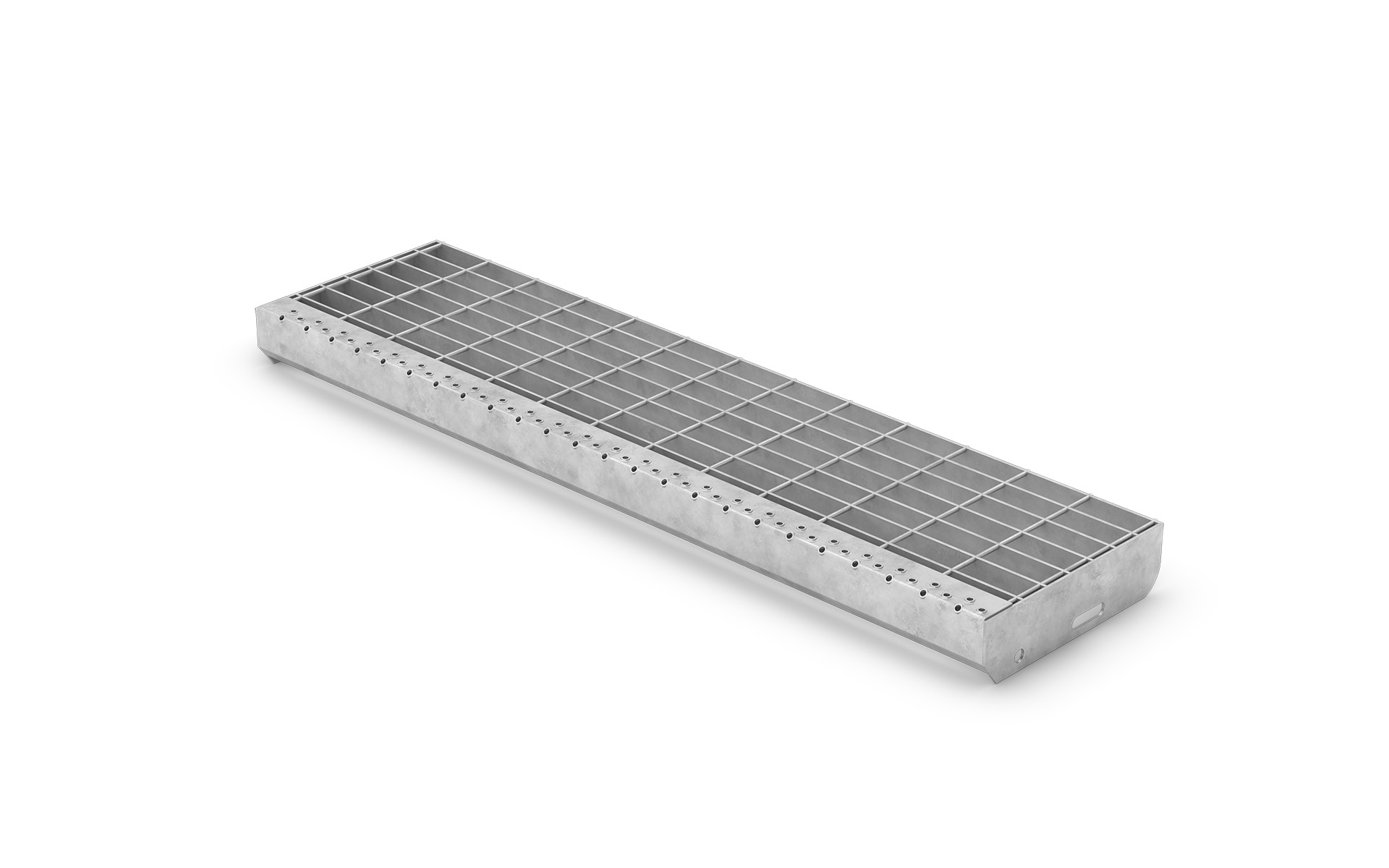

TH6-S, is manufactured from pressure welding grating with a mesh width opening c/c 34 x 75 mm. The stair tread is manufactured from the same type of grating but has a safety front edge that clearly marks the front edge and, in addition, provides increased anti-slip protection.
Finish: Hot dip galvanized

Format L x D (mm) Part no. Stocked
400 x 130 143304131
400 x 160 143304161
500 x 130 143305131
500 x 160 143305161
500 x 200 143305201
600 x 130 143306131
600 x 160 143306161
600 x 200 143306201
600 x 230 143306231
600 x 260 143306261
700 x 130 143307131
700 x 160 143307161
700 x 200 143307201
700 x 230 143307231
700 x 260 143307261
800 x 130 143308131
800 x 160 143308161
800 x 200 143308201
800 x 230 143308231
800 x 260 143308261
800 x 300 143308301
900 x 200 143309201
900 x 230 143309231
900 x 260 143309261
900 x 300 143309301
1000 x 200 143310201
1000 x 230 143310231
1000 x 260 143310261
1000 x 300 143310301
1100 x 230 143311231
1100 x 260 143311261
1100 x 300 143311301
1200 x 230 143312231
1200 x 260 143312261
1200 x 300 143312301
1300 x 260 143313261
1300 x 300 143313301
1400 x 260 143314261
1400 x 300 143314301
1500 x 260 143315261
1500 x 300 143315301
1600 x 300 143316301
1800 x 300 143318301

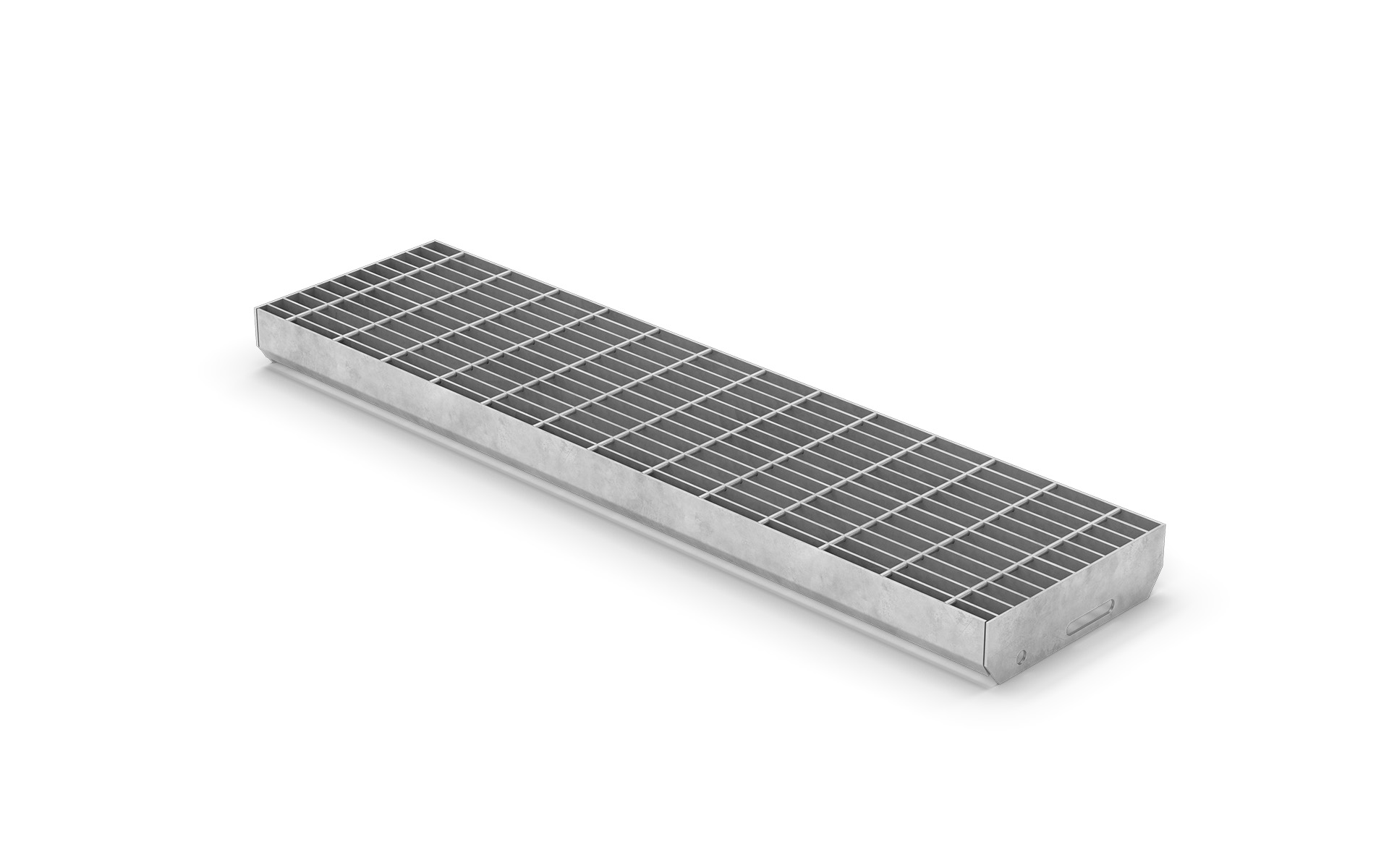

TD6 is manufactured from pressure welded grating with mesh width opening c/c 22×75 mm.
Finish: Hot dip galvanized

Format L x D (mm) Part no. Stocked
600 x 230 D14206231
600 x 260 D14206261
600 x 300 D14206301
800 x 260 D14208261
800 x 300 D14208301

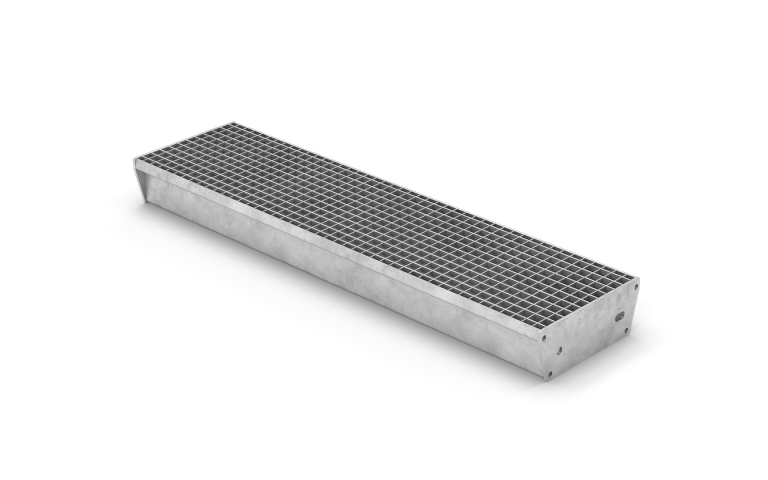

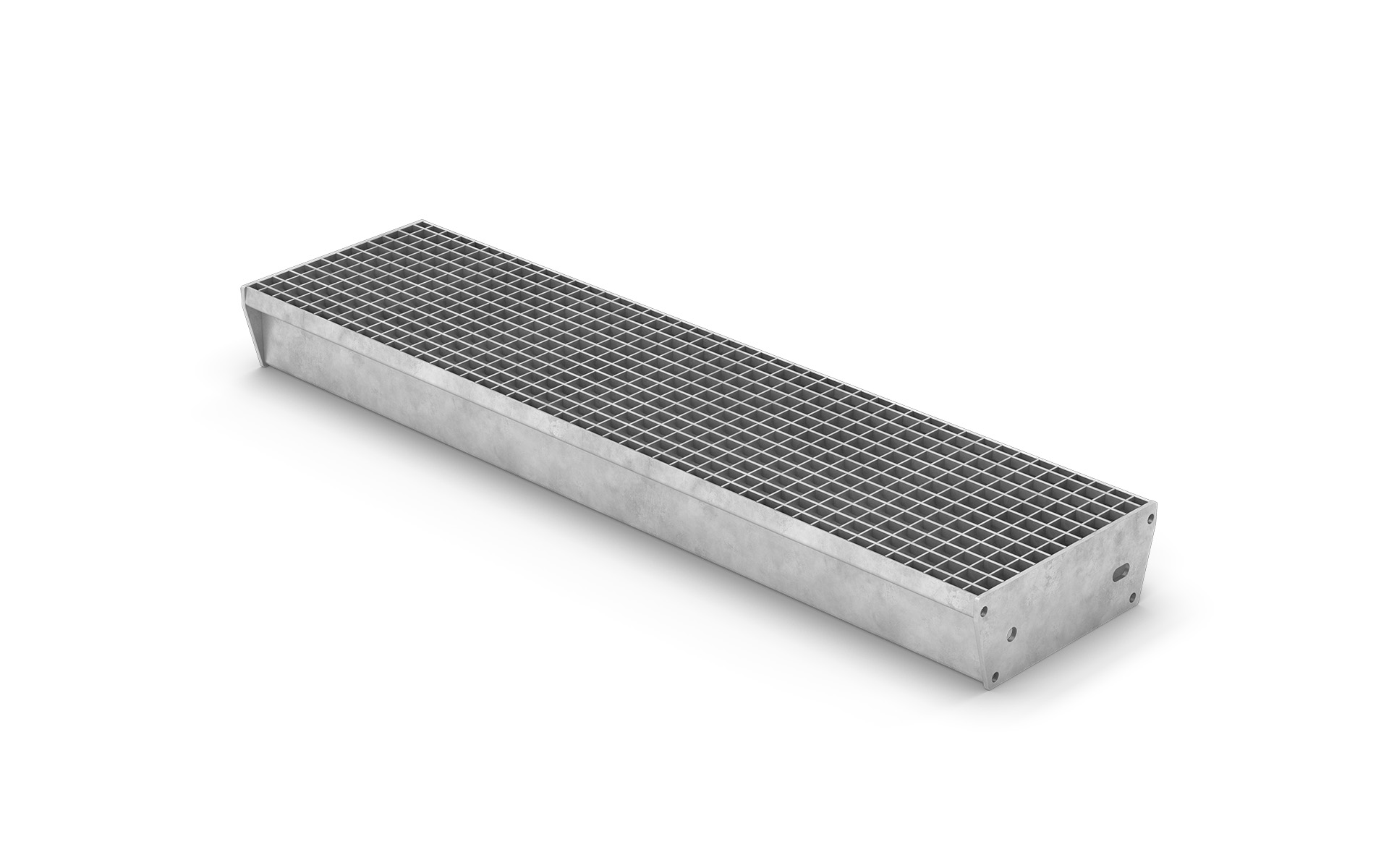

Stair tread in A-type grating. Mesh width opening c/c 22 x 22 mm.
Finish: Hot dip galvanized

Format L x D (mm) Part no. Stocked
600 x 230 14106231
700 x 230 14107231
800 x 230 14108231
900 x 230 14109231
1000 x 230 14110231

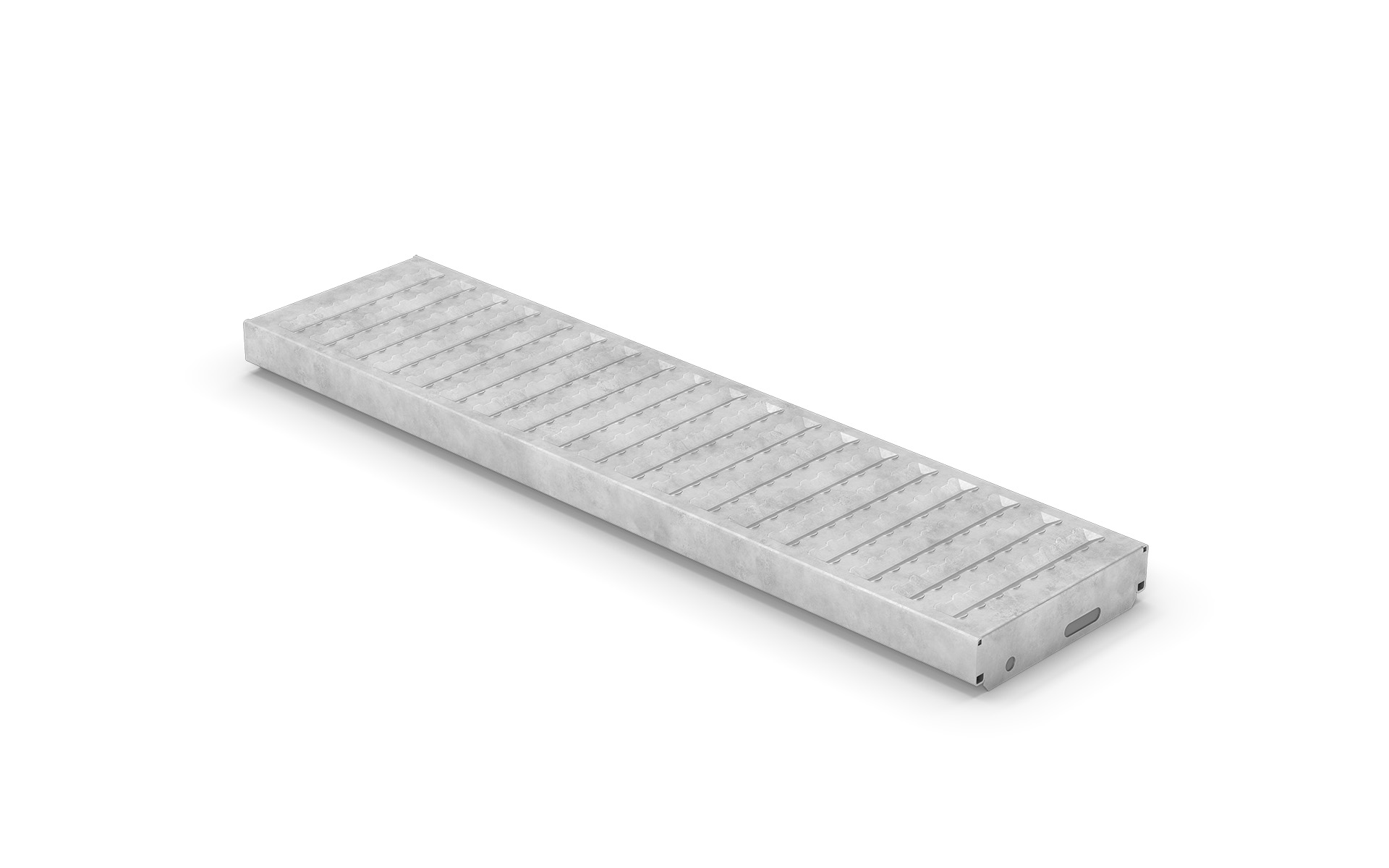

Stair tread TLDT is manufactured from solid plank type flooring. The top has an embossed pattern offering good anti-slip protection.
Finish: Hot dip galvanized

Format L x D (mm) Part no. Stocked
500 x 200 2503000
500 x 250 2503160
500 x 300 2505450
600 x 200 2503020
600 x 250 2503180
600 x 300 2505460
700 x 200 2503040
700 x 250 2503200
700 x 300 2505480
800 x 200 2503060
800 x 250 2503220
800 x 300 2505490
900 x 200 2503080
900 x 250 2503240
900 x 300 2505500
1000 x 200 2503100
1000 x 250 2503260
1000 x 300 2505510
1100 x 200 2503120
1100 x 250 2503280
1100 x 300 2505520
1200 x 200 2503140
1200 x 250 2503300
1200 x 300 2505530
1300 x 200 2503145
1300 x 250 2503320
1300 x 300 2505540
1400 x 200 2503150
1400 x 250 2503340
1400 x 300 2505550
1500 x 200 2503155
1500 x 250 2503360
1500 x 300 2505560

Stair tread TLDT is manufactured from holed plank type flooring. The top has an embossed pattern offering good anti-slip protection. In principle, the same as solid plank type flooring but supplemented with punched oval holes 15 x 69 mm.
Finish: Hot dip galvanized

Format L x D (mm) Part no. Stocked
500 x 200 2503010
500 x 250 2503170
500 x 300 2505660
600 x 200 2503030
600 x 250 2503190
700 x 200 2503050
700 x 250 2503210
700 x 300 2505680
800 x 200 2503070
800 x 250 2503230
800 x 300 2505690
900 x 200 2503090
900 x 250 2503250
900 x 300 2505700
1000 x 200 2503110
1000 x 250 2503270
1000 x 300 2505710
1100 x 200 2503130
1100 x 250 2503290
1100 x 300 2505720
1200 x 200 2503142
1200 x 250 2503310
1200 x 300 2505730
1300 x 200 2503147
1300 x 250 2503330
1300 x 300 2505740
1400 x 200 2503152
1400 x 250 2503350
1400 x 300 2505750
1500 x 200 2503157
1500 x 250 2503370
1500 x 300 2505760

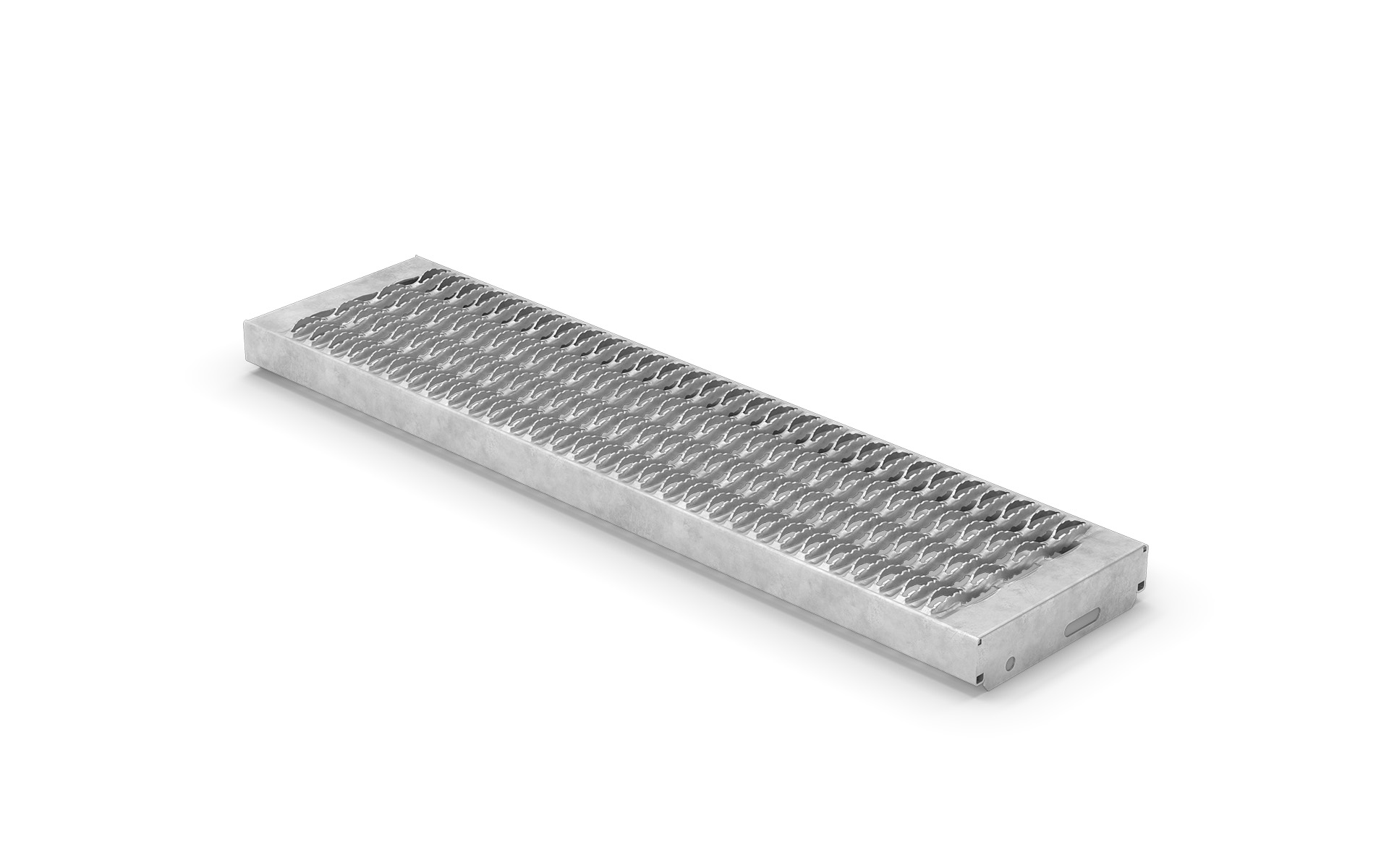

Stair tread TLDS is manufactured from slit plank type flooring. The serrated top provides extremely good anti-slip protection.
Finish: Hot dip galvanized

Format L x D (mm) Part no. Stocked
500 x 200 2506000
500 x 250 2506200
500 x 300 2506310
600 x 200 2506010
600 x 250 2506210
600 x 300 2506315
700 x 200 2506020
700 x 250 2506220
700 x 300 2506320
800 x 200 2506030
800 x 250 2506230
800 x 300 2506330
900 x 200 2506040
900 x 250 2506240
900 x 300 2506340
1000 x 200 2506050
1000 x 250 2506250
1000 x 300 2506350
1100 x 200 2506060
1100 x 250 2506260
1100 x 300 2506360
1200 x 200 2506070
1200 x 250 2506270
1200 x 300 2506370
1300 x 200 2506080
1300 x 250 2506280
1300 x 300 2506380
1400 x 200 2506090
1400 x 250 2506290
1400 x 300 2506390
1500 x 200 2506100
1500 x 250 2506300
1500 x 300 2506395

Stair tread TLDP is manufactured from perforated plank type flooring. The serrated top provides very good anti-slip protection. The planks have small openings (holes Ø 10 mm and 4 mm drainage holes). Provides greater protection against objects falling through the openings.
Finish: Hot dip galvanized

Format L x D (mm) Part no. Stocked
500 x 200 2506400
500 x 250 2506600
500 x 300 2506750
600 x 200 2506410
600 x 250 2506610
700 x 200 2506420
700 x 250 2506620
700 x 300 2506770
800 x 200 2506430
800 x 250 2506630
800 x 300 2506790
900 x 200 2506440
900 x 250 2506640
900 x 300 2506800
1000 x 200 2506450
1000 x 250 2506650
1000 x 300 2506810
1100 x 200 2506460
1100 x 250 2506660
1100 x 300 2506820
1200 x 200 2506470
1200 x 250 2506670
1200 x 300 2506830
1300 x 200 2506480
1300 x 250 2506680
1300 x 300 2506840
1400 x 200 2506490
1400 x 250 2506690
1400 x 300 2506850
1500 x 200 2506500
1500 x 250 2506700
1500 x 300 2506860

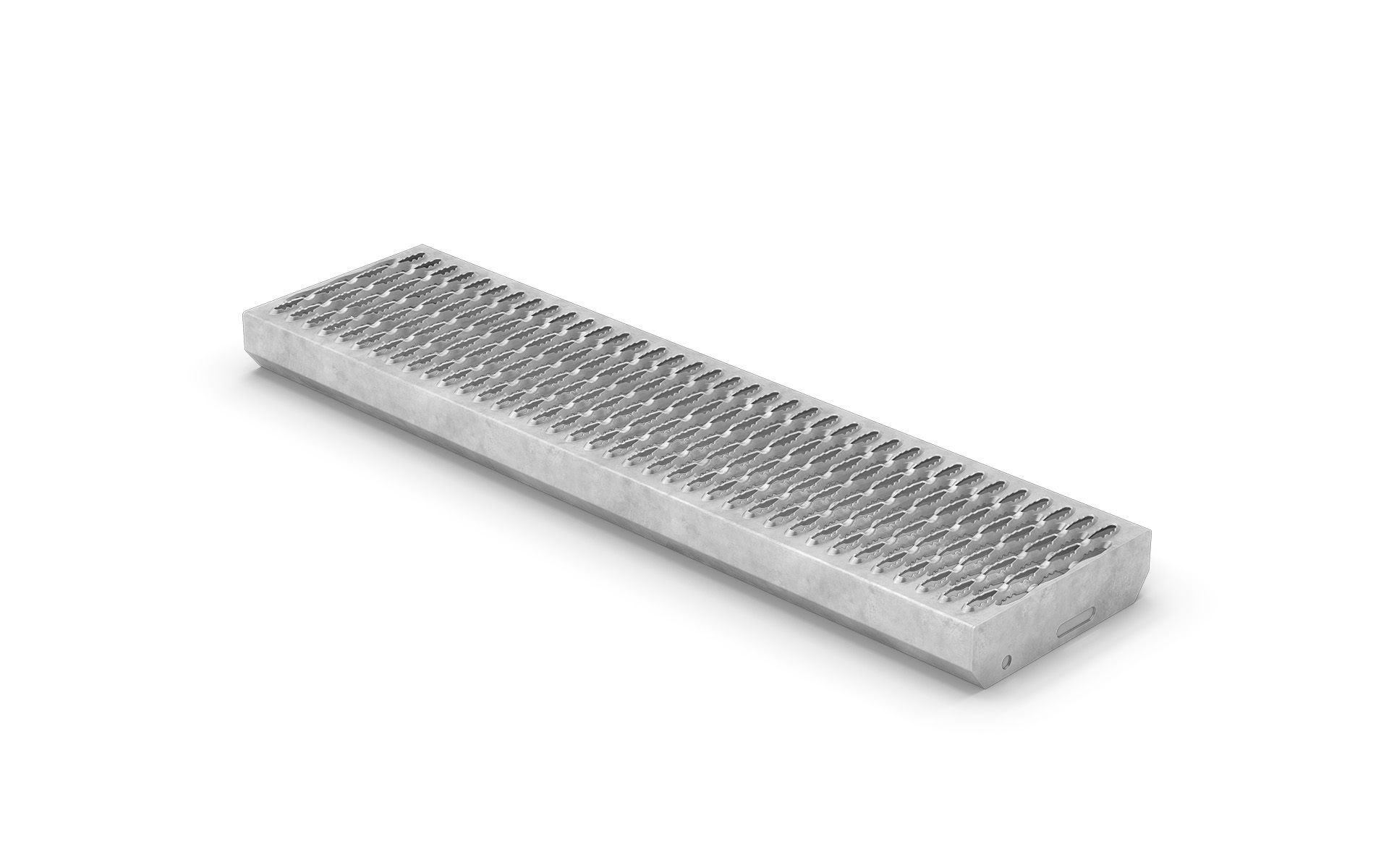

The TSD stair tread is manufactured from slit plank type flooring. The serrated top provides extremely good anti-slip protection.
Finish: Hot dip galvanized

Format L x D (mm) Part no. Stocked
501 x 130 TSD05131
606 x 200 TSD06201
696 x 200 TSD07201
696 x 260 TSD07261
801 x 200 TSD08201
801 x 260 TSD08261
906 x 260 TSD09261
906 x 300 TSD09301
996 x 260 TSD10261
996 x 300 TSD10301
1101 x 260 TSD11261
1101 x 300 TSD11301
1206 x 260 TSD12261
1206 x 300 TSD12301
1296 x 260 TSD13261
1401 x 260 TSD14261

Accessories

In order to create individual step heights without attaching stringers to the ground, we offer 3 different step bracket models. The various bracket pairs are adapted to the hole configuration of the staircase on gables and the depth of the steps. The step bracket pack includes a complete bracket pair and bolted joints for the step.
Finish: Hot dip galvanized

Step depth (mm) Part no. Stocked
160 18001601
230 18002301
300 18003001

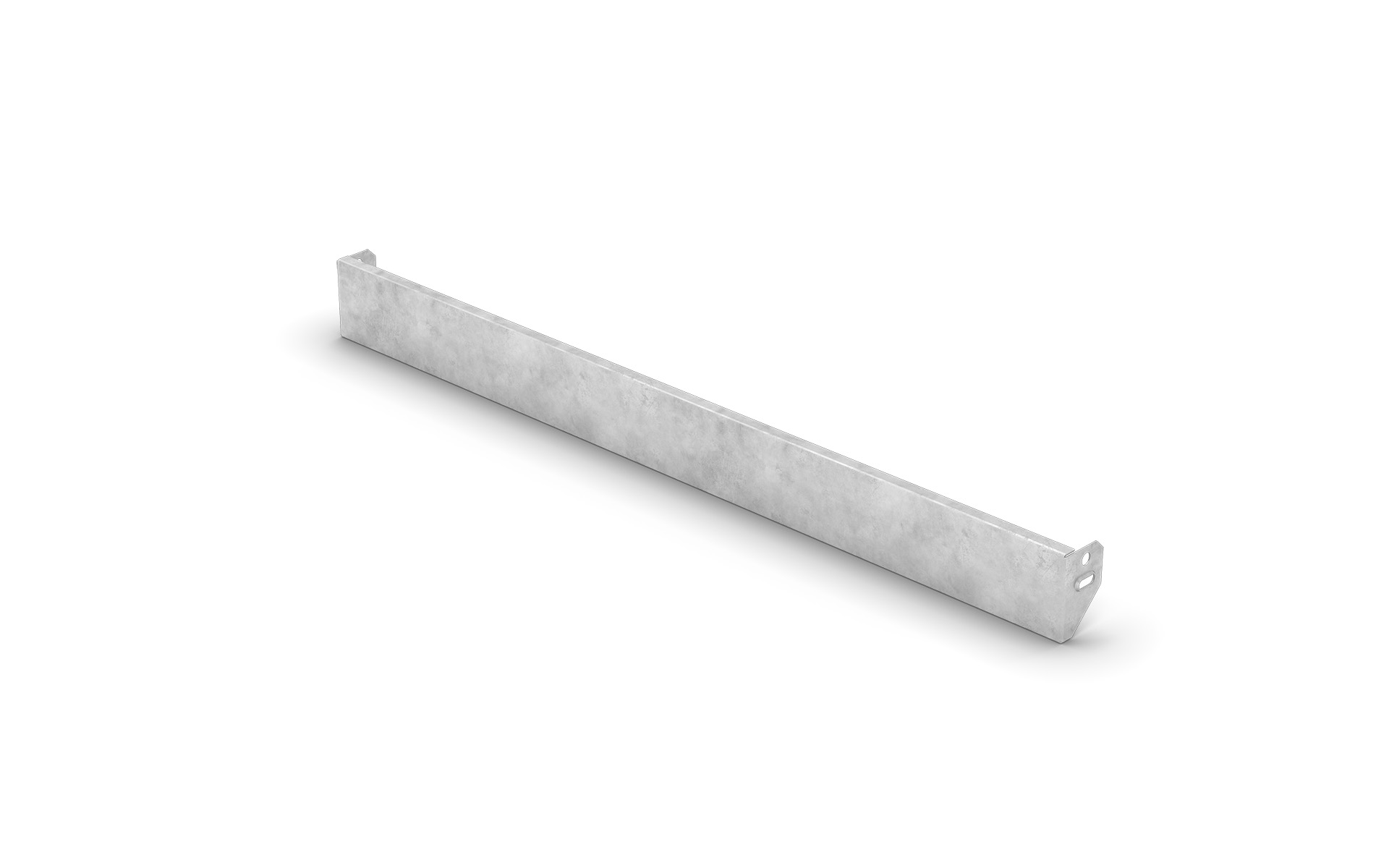

Loose, stock riser bars for straight flight staircases. The riser bars are screwed to the tread to satisfy child safety requirements between the treads. The riser bars are available in the lengths as shown in the table.
Finish: Hot dip galvanized

Längd (mm) Höjd (mm) Artikelnummer Lagerförd
700 92 14607001
800 92 14608001
900 92 14609001
1000 92 14610001
1100 92 14611001
1200 92 14612001
1300 92 14613001
1400 92 14614001
1500 92 14615001

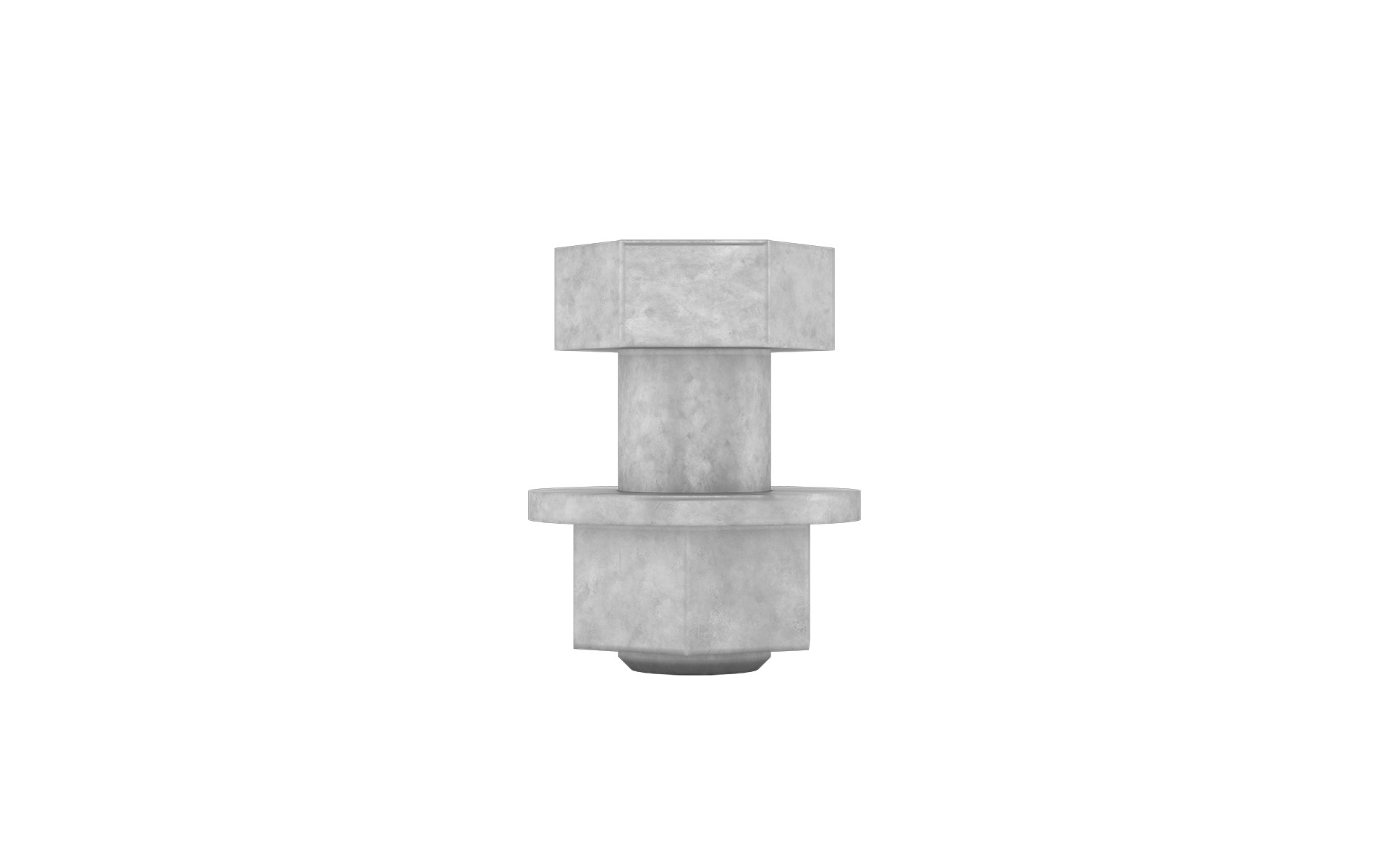

Nuts and bolts for stair treads. Standard pack = 100/carton.

Dimension Artikelnummer Lagerförd
M12 x 25 16412251
M12 x 40 16412401

Downloads

  Product manual edition 7

Open (73.86 MB (en-gb)

Stair treads, Straight flight staircases STEP-files

Open (974.55 KB (en-gb)
