Filtration

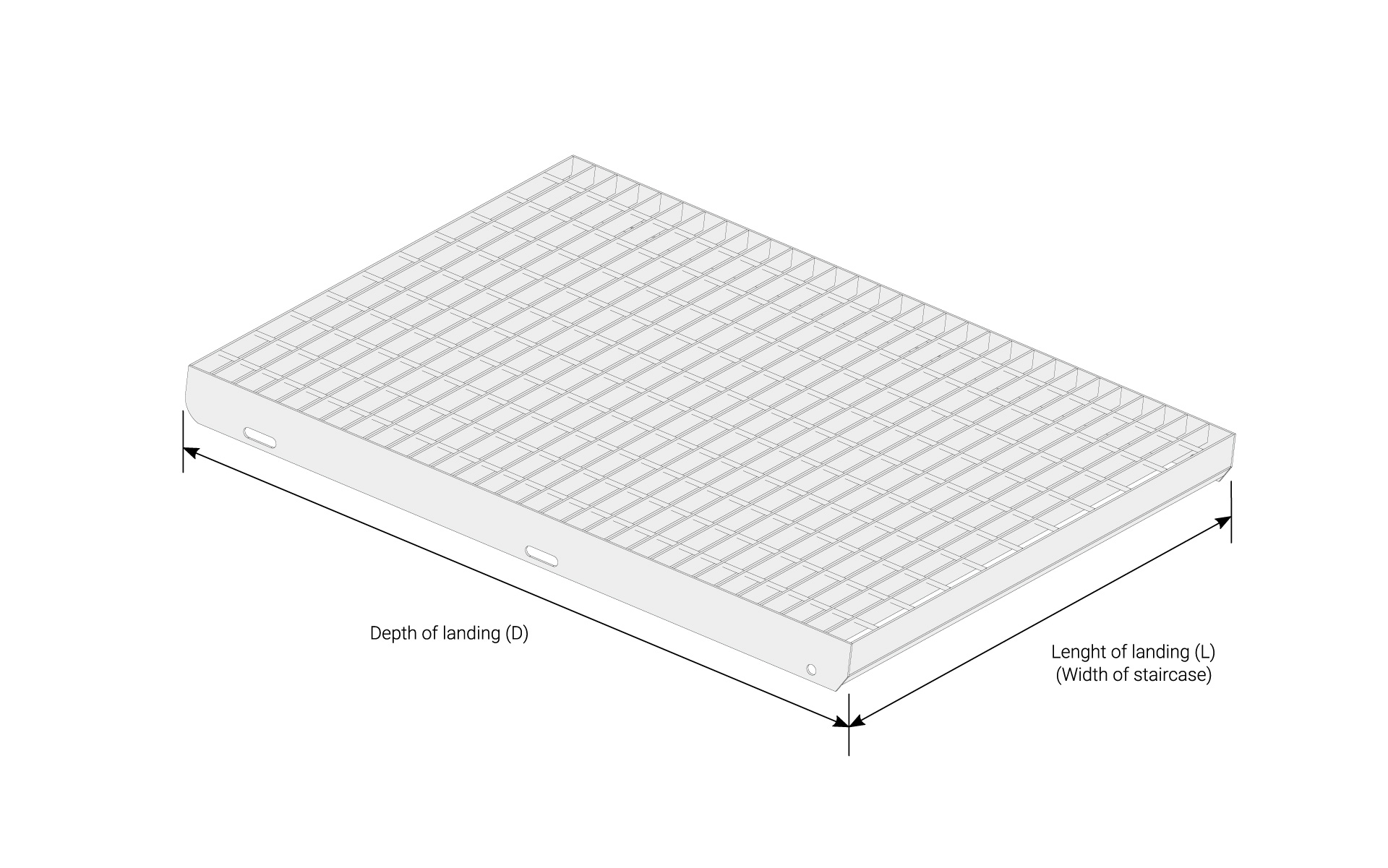

Dimensions for landings, Grating
TH6 are available with the standard depths 500, 700 and 1000 mm in the hot dip galvanized version.

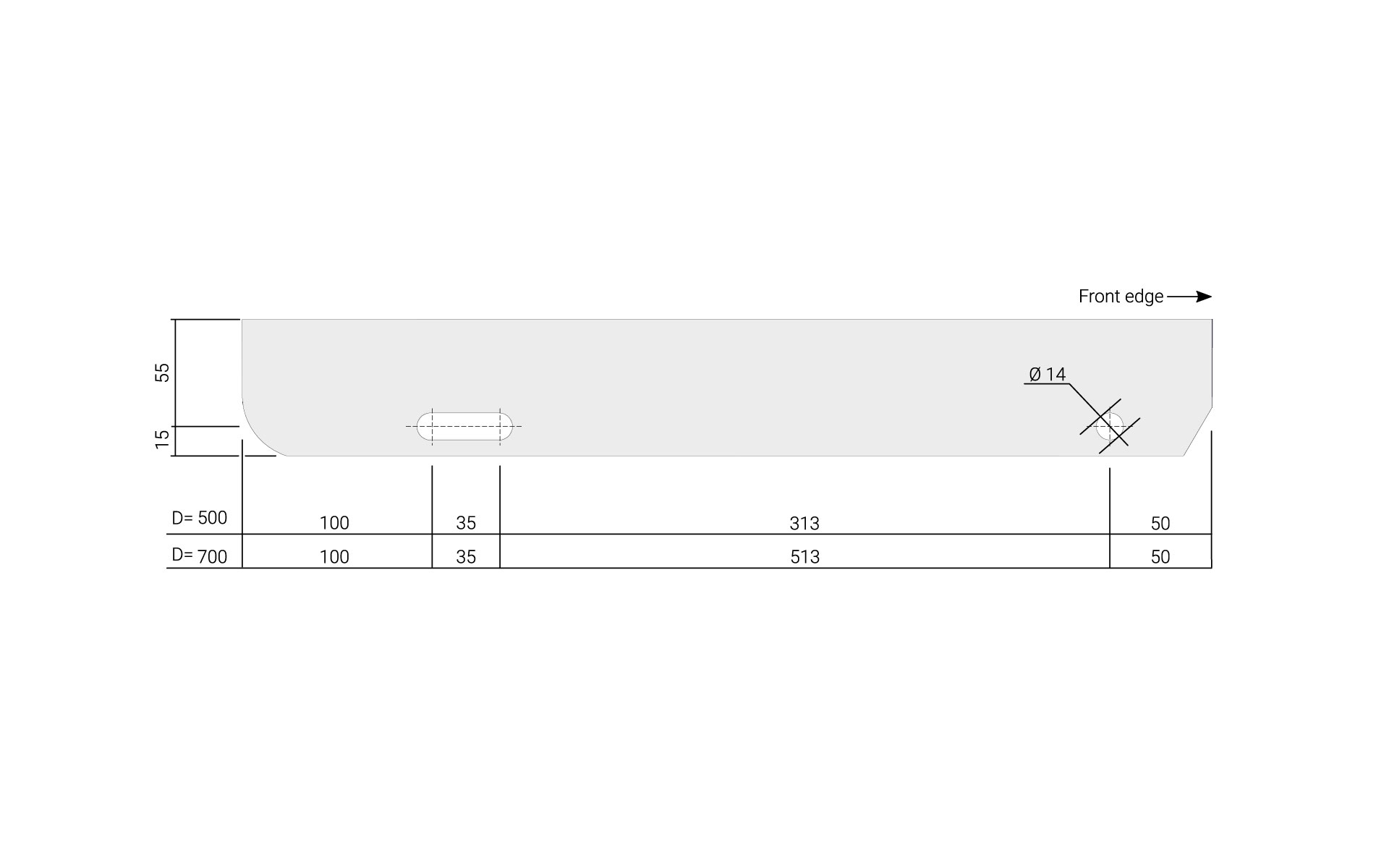

Landing end, Type 70 – Depth 500 – 700 mm
Hole diameter Ø 14 mm for M12 screw.

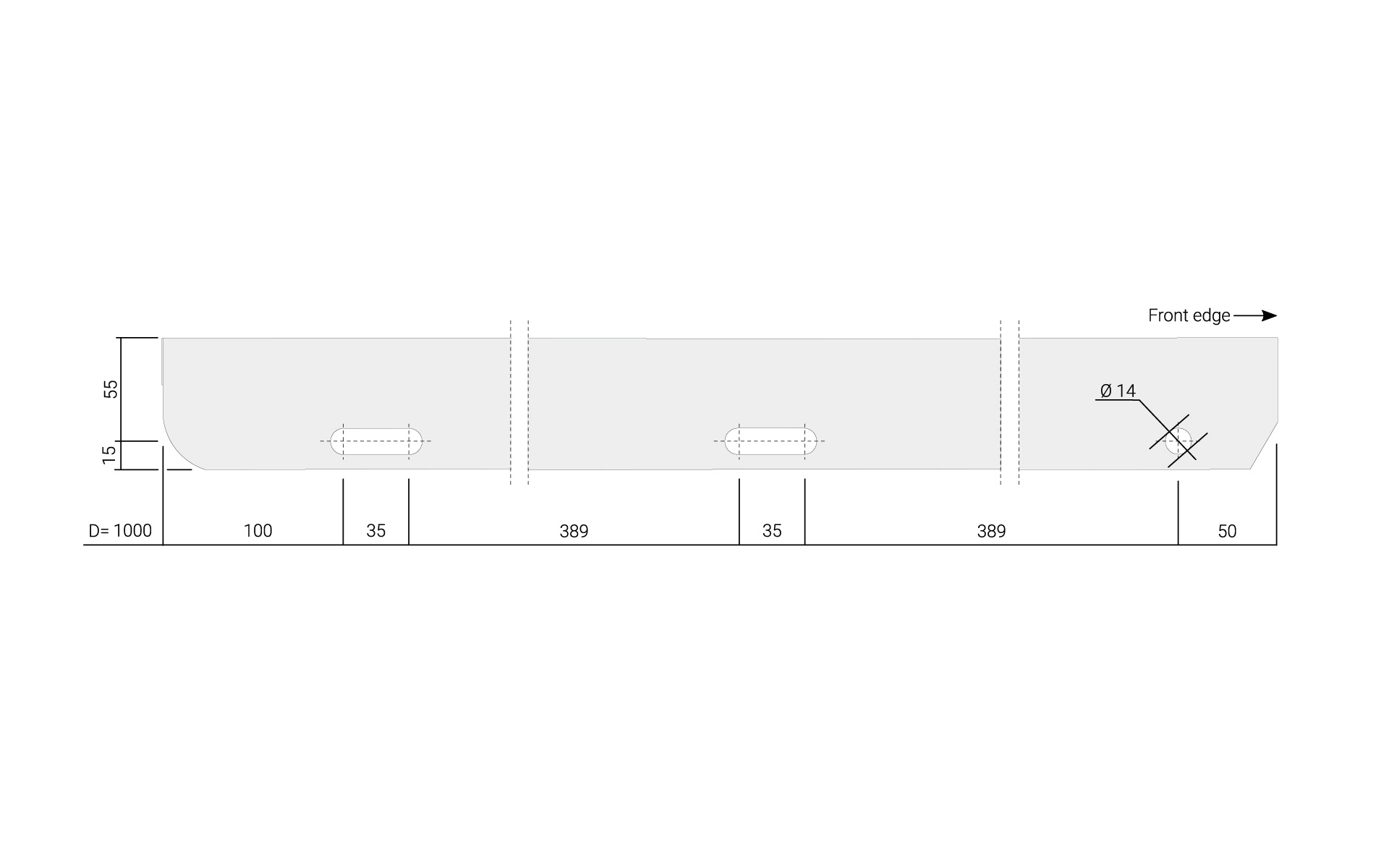

Landing end, Type 70 – Depth 1000mm
Hole diameter Ø 14 mm for M12 screw.
Dimensions for landings, Slit plank type flooring
The slit plank type flooring is available with standard depths 500, 700 and 1,000 mm in a hot dip galvanized version.
