WHEELCHAIR RAMPS
According to the building standards, there must be an entrance without stairs providing access to public spaces. Weland offers a wide range of stable, safe and easily assembled wheelchair ramps.
Our complete wheelchair ramps are manufactured in grating, including railings, stringers and requisite supporting legs. They are based on a simple, robust design in hot dipped steel, which adds to the stability and long durability. The incline of the gangways is adjustable, but is not permitted to exceed 1:12. Contrast markings are placed on the front edge of the ramp and at the start of the landing. Thanks to stocked standard components, we guarantee short delivery times. We also have a large stocked assortment of ramps in width 900 mm with short delivery times.
Wheelchair ramps
Complete wheelchair ramps with grating are designed according to your situation and wishes. We stock many different versions in order to provide prompt, reliable and high quality delivery. The standard width is 1300 mm and this is stocked in lengths from 1500 up to 6000 mm in intervals of 500 mm.

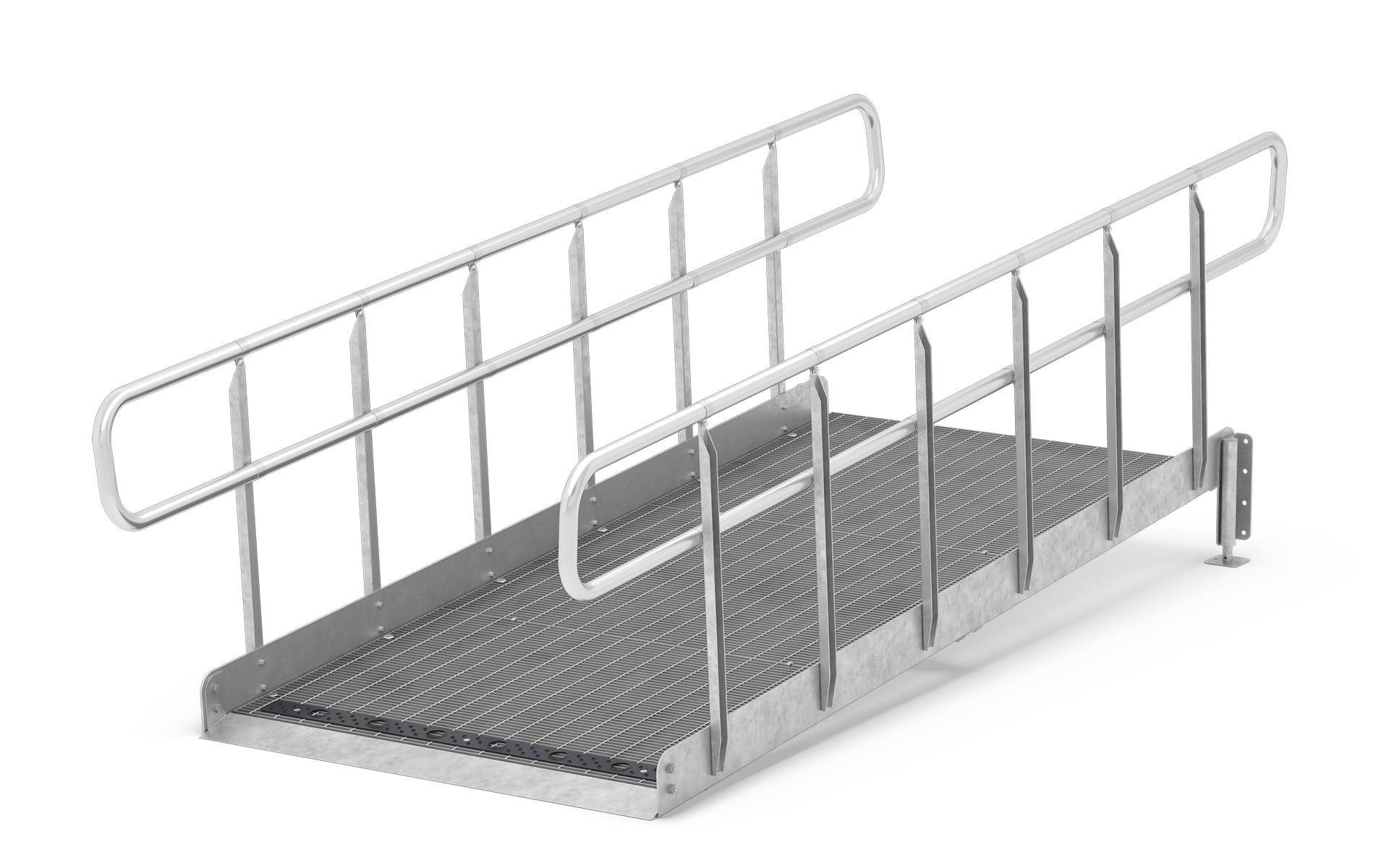

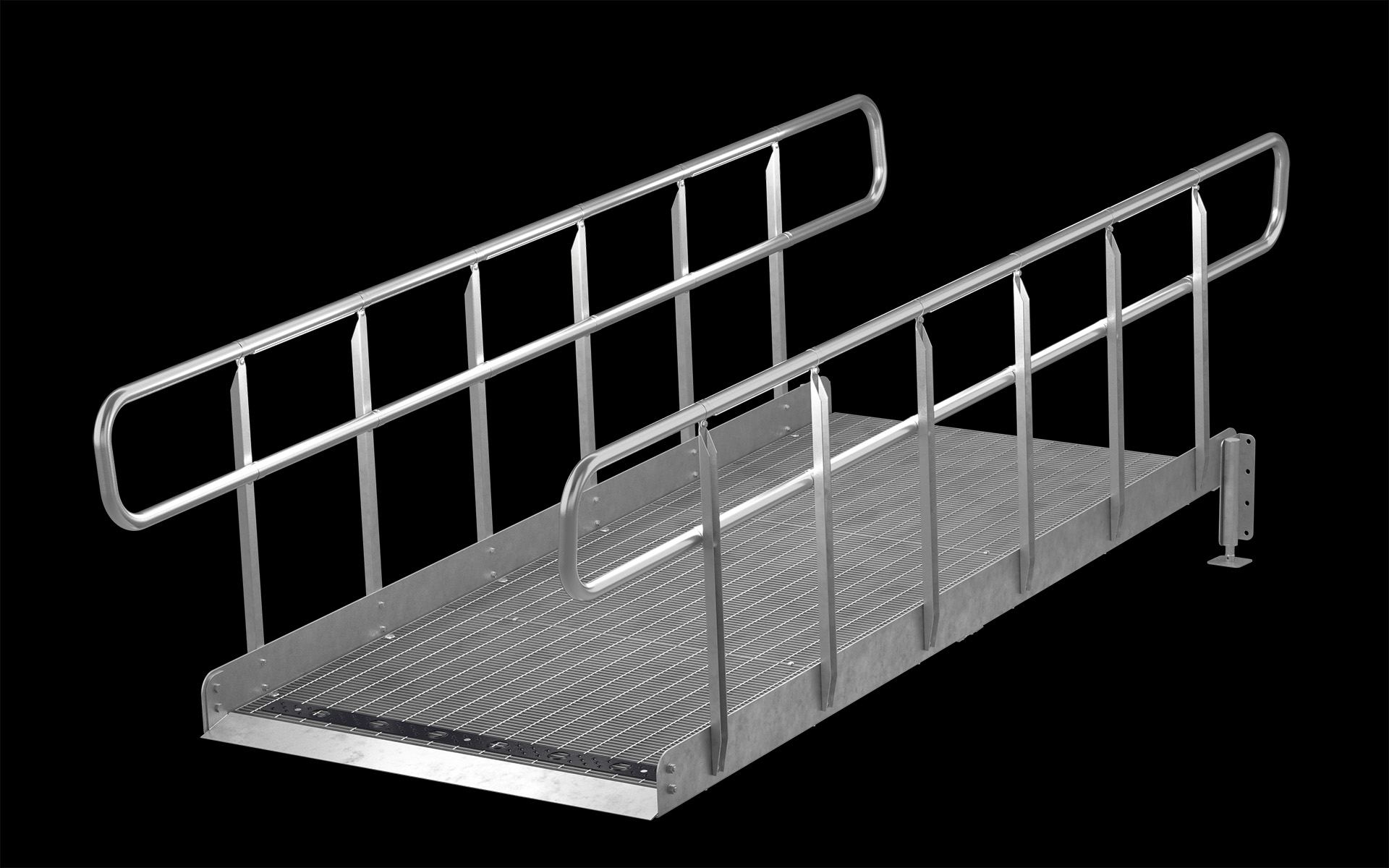

Wheelchair ramp with railings on both sides of the ramp.
Finish: Hot dip galvanized
| Name | Dimensions WxL (mm) | Part no. | Stocked |
|---|---|---|---|
| Wheelchair ramp | 1300×1500 | 174151311 | |
| Wheelchair ramp | 1300×2000 | 174201311 | |
| Wheelchair ramp | 1300×2500 | 174251311 | |
| Wheelchair ramp | 1300×3000 | 174301311 | |
| Wheelchair ramp | 1300×3500 | 174351311 | |
| Wheelchair ramp | 1300×4000 | 174401311 | |
| Wheelchair ramp | 1300×4500 | 174451311 | |
| Wheelchair ramp | 1300×5000 | 174501311 | |
| Wheelchair ramp | 1300×5500 | 174551311 | |
| Wheelchair ramp | 1300×6000 | 174601311 |

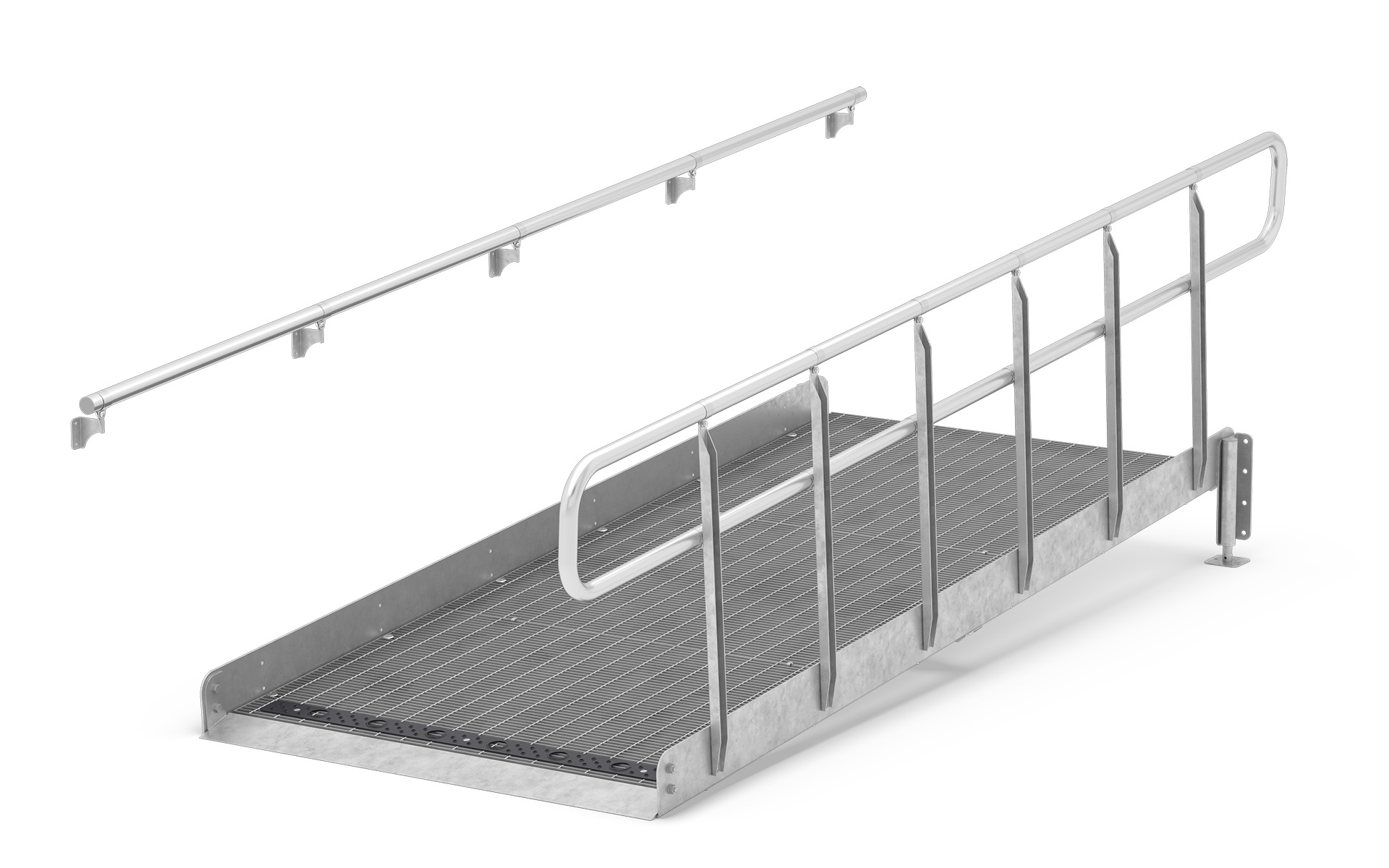

Wheelchair ramp with rail on one side and banister fitted along adjoining wall.
Finish: Hot dip galvanized
| Name | Dimensions WxL (mm) | Part no. | Stocked |
|---|---|---|---|
| Wheelchair ramp | 1300×1500 | 174151321 | |
| Wheelchair ramp | 1300×2000 | 174201321 | |
| Wheelchair ramp | 1300×2500 | 174251321 | |
| Wheelchair ramp | 1300×3000 | 174301321 | |
| Wheelchair ramp | 1300×3500 | 174351321 | |
| Wheelchair ramp | 1300×4000 | 174401321 | |
| Wheelchair ramp | 1300×4500 | 174451321 | |
| Wheelchair ramp | 1300×5000 | 174501321 | |
| Wheelchair ramp | 1300×5500 | 174551321 | |
| Wheelchair ramp | 1300×6000 | 174601321 |

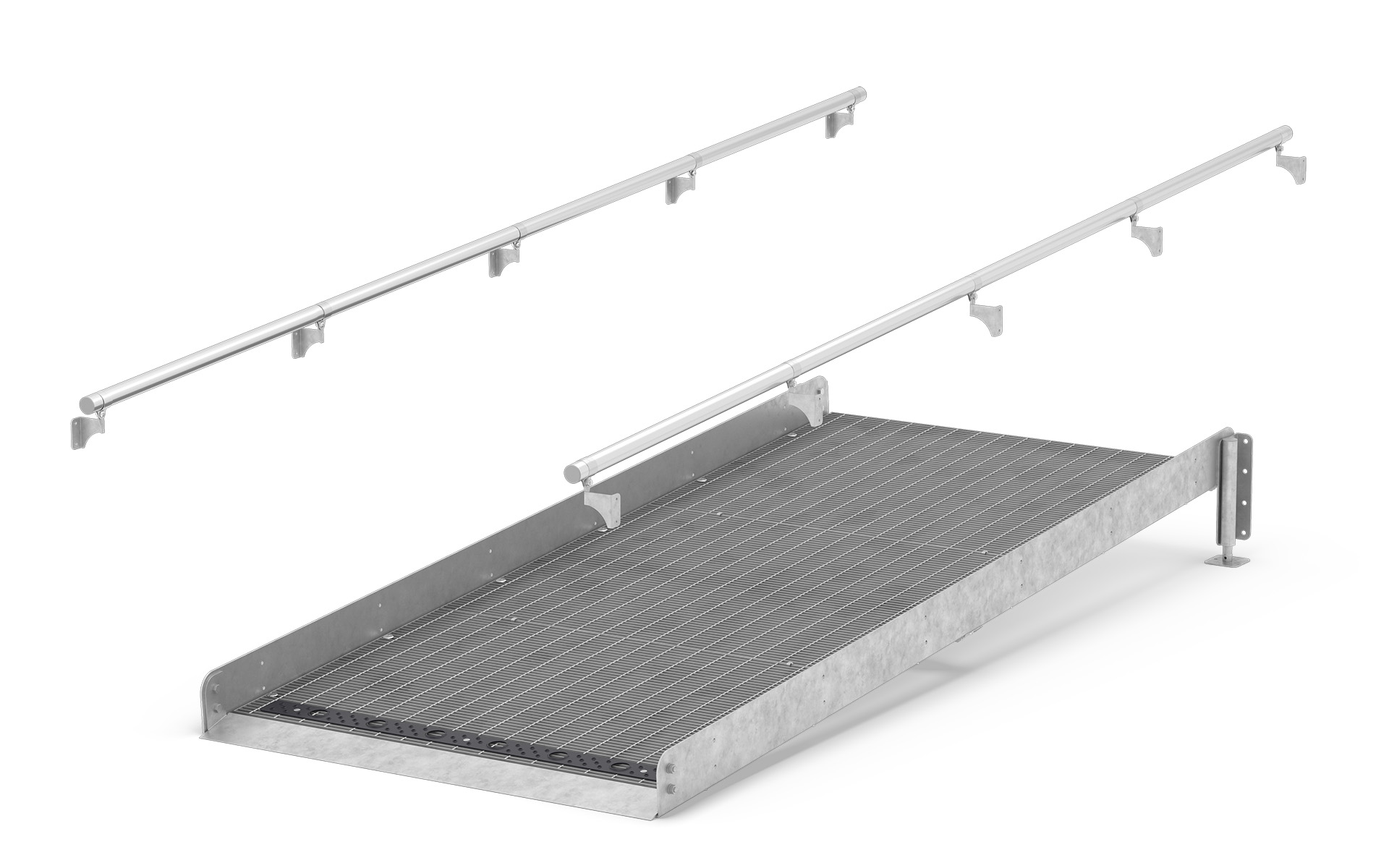

Wheelchair ramp with banister fitted along the wall on both sides.
Finish: Hot dip galvanized
| Name | Dimensions WxL (mm) | Part no. | Stocked |
|---|---|---|---|
| Wheelchair ramp | 1300×1500 | 174151322 | |
| Wheelchair ramp | 1300×2000 | 174201322 | |
| Wheelchair ramp | 1300×2500 | 174251322 | |
| Wheelchair ramp | 1300×3000 | 174301322 | |
| Wheelchair ramp | 1300×3500 | 174351322 | |
| Wheelchair ramp | 1300×4000 | 174401322 | |
| Wheelchair ramp | 1300×4500 | 174451322 | |
| Wheelchair ramp | 1300×5000 | 174501322 | |
| Wheelchair ramp | 1300×5500 | 174551322 | |
| Wheelchair ramp | 1300×6000 | 174601322 |

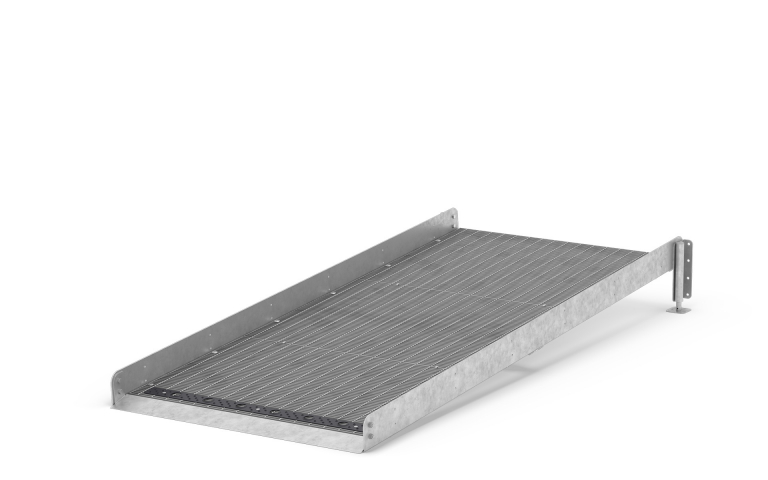

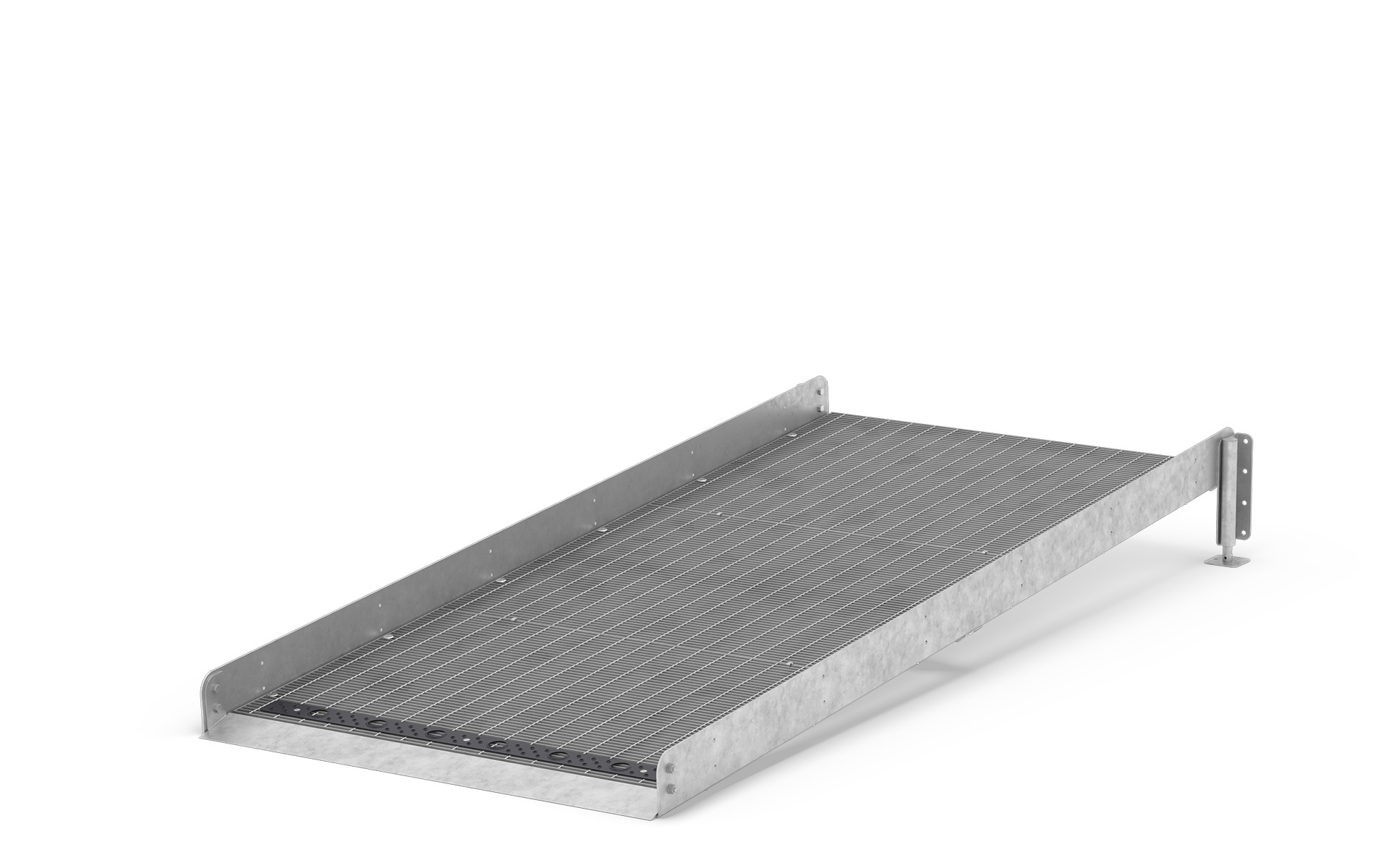

If you choose to make the railing yourself, we provide a wheelchair ramp without railing and banister.
Finish: Hot dip galvanized
| Name | Dimensions WxL (mm) | Part no. | Stocked |
|---|---|---|---|
| Wheelchair ramp | 1300×1500 | 174151300 | |
| Wheelchair ramp | 1300×2000 | 174201300 | |
| Wheelchair ramp | 1300×2500 | 174251300 | |
| Wheelchair ramp | 1300×3000 | 174301300 | |
| Wheelchair ramp | 1300×3500 | 174351300 | |
| Wheelchair ramp | 1300×4000 | 174401300 | |
| Wheelchair ramp | 1300×4500 | 174451300 | |
| Wheelchair ramp | 1300×5000 | 174501300 | |
| Wheelchair ramp | 1300×5500 | 174551300 | |
| Wheelchair ramp | 1300×6000 | 174601300 |
Railings

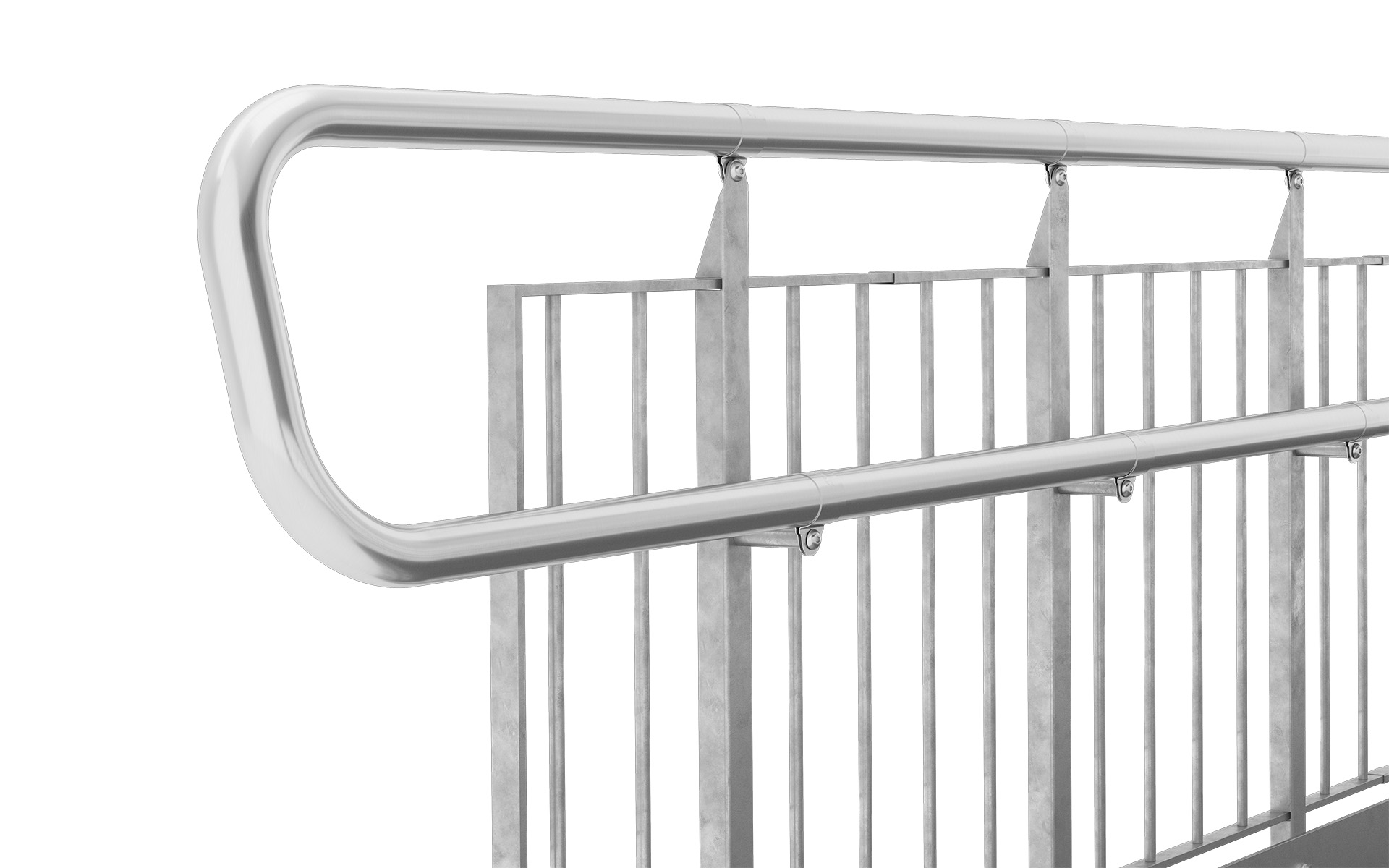

In our standard assortment, we offer two different types of railing. Our handrails are manufactured from industrial stainless steel with brushed untreated finish, with diameter 42 mm. Read more about stainless steel handrails here.
Accessories, railings

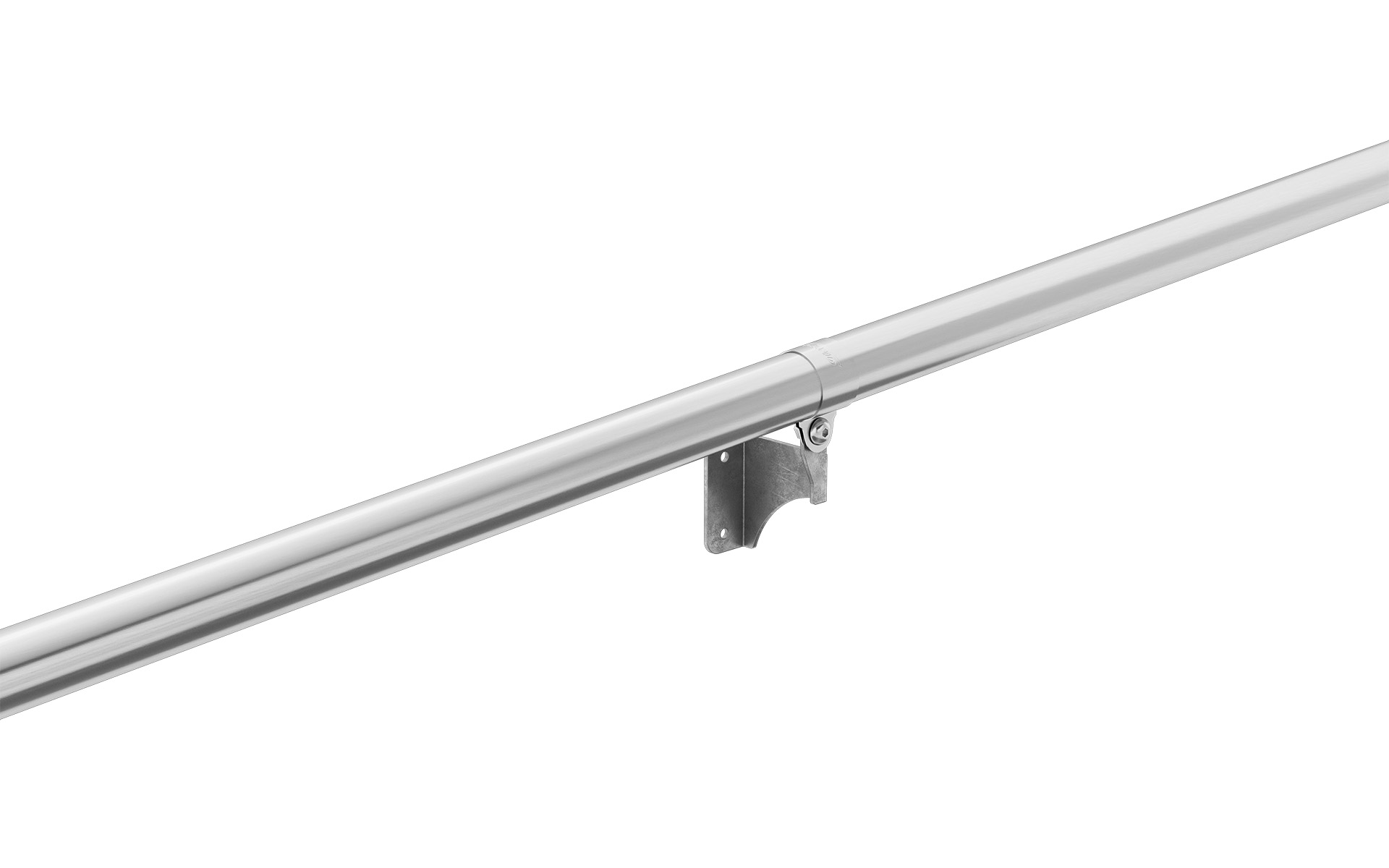

To increase the accessibility and safety of the wheelchair ramp, they can be provided with a banister. The banister is fitted on the wall.
To create a decorative and pleasing milieu, our wheelchair ramps can be provided with lighting. Lighting from the handrail can also act as a functional addition to light up unsafe environments.
Landings

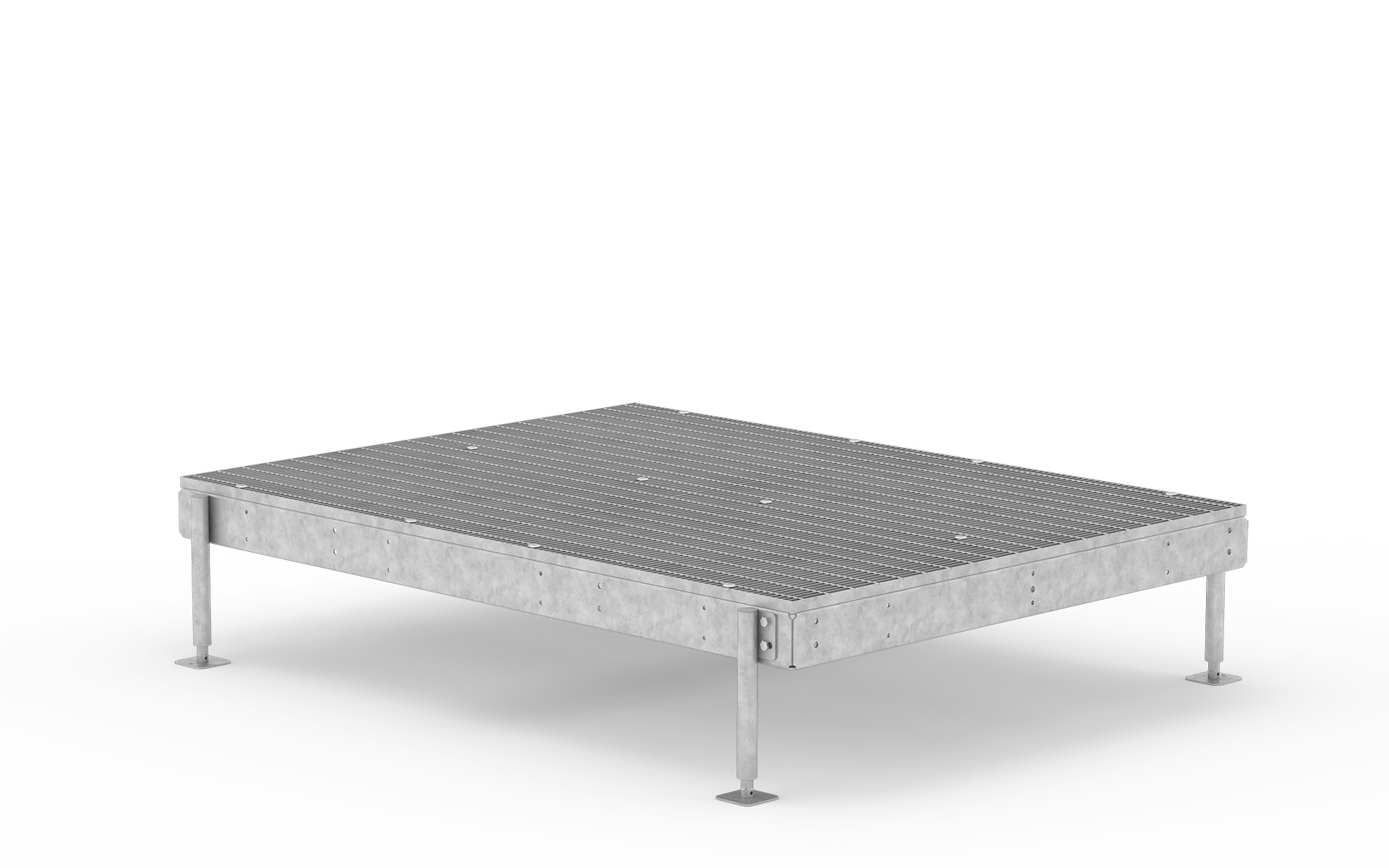

We keep in stock standard landings in grating for our wheelchair ramps. These landings are also used as intermediate or turning landings between two gangways. According to current regulations, intermediate landings have to be used when wheelchair ramps are longer than 6 metres. All material is hot dip galvanized as standard.
The landing’s support frame as well as grating with mesh width c/c 17 x 75 mm.
Finish: Hot dip galvanized
| Dimensions LxW (mm) | Part no. | Stocked |
|---|---|---|
| 1510×2010 | 174151201 | |
| 1510×1510 | 174151151 | |

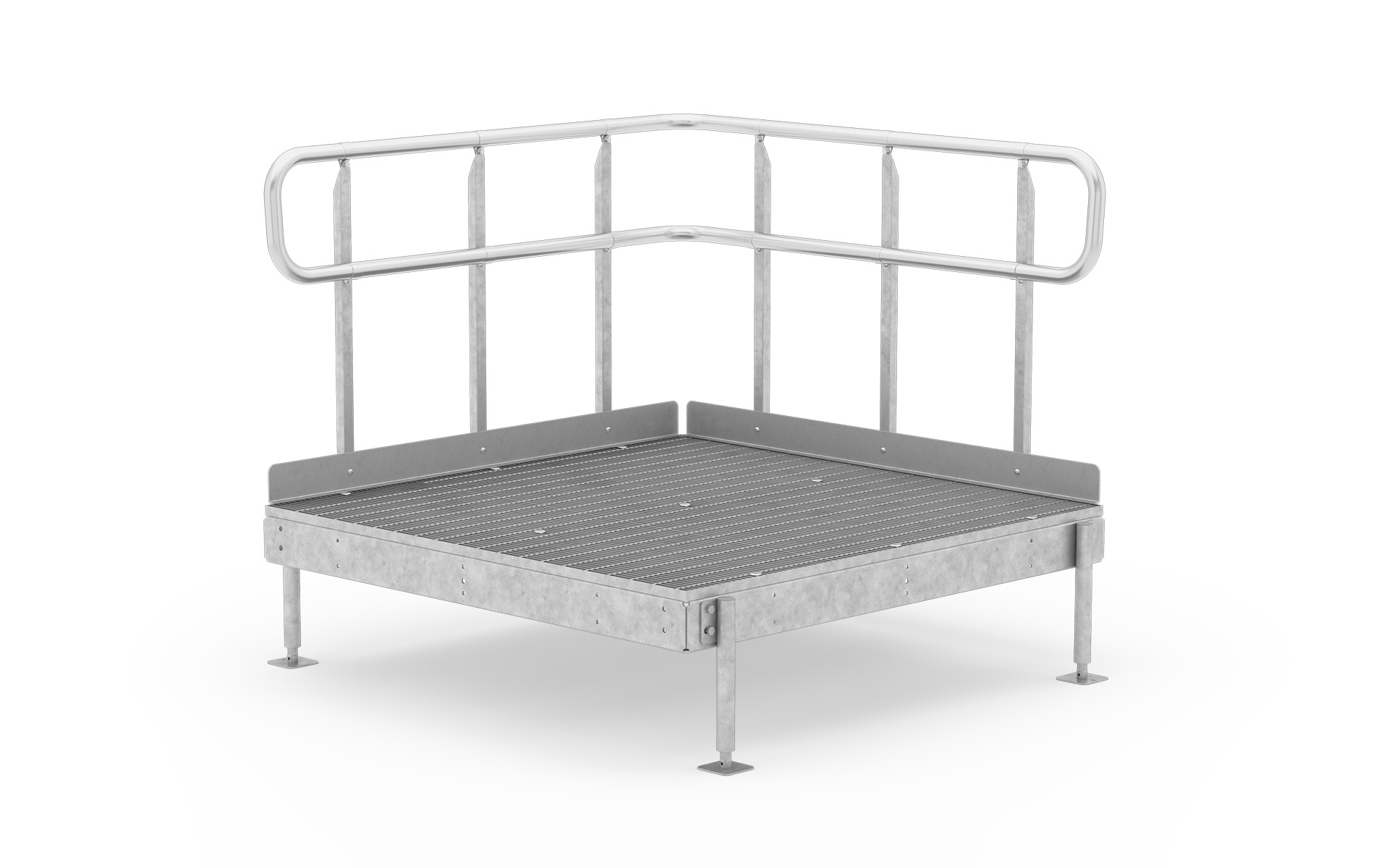

Railing in straight and angled versions as well as kick strip
Finish: Hot dip galvanized
| Name | Length (mm) | Part No. | Stocked |
|---|---|---|---|
| Railing and kick strip | 2000 | 174200 | |
| Railing and kick strip | 1500 | 174150 | |
| Railing and kick strip, Corner | 1500×1500 | 174150150 | |

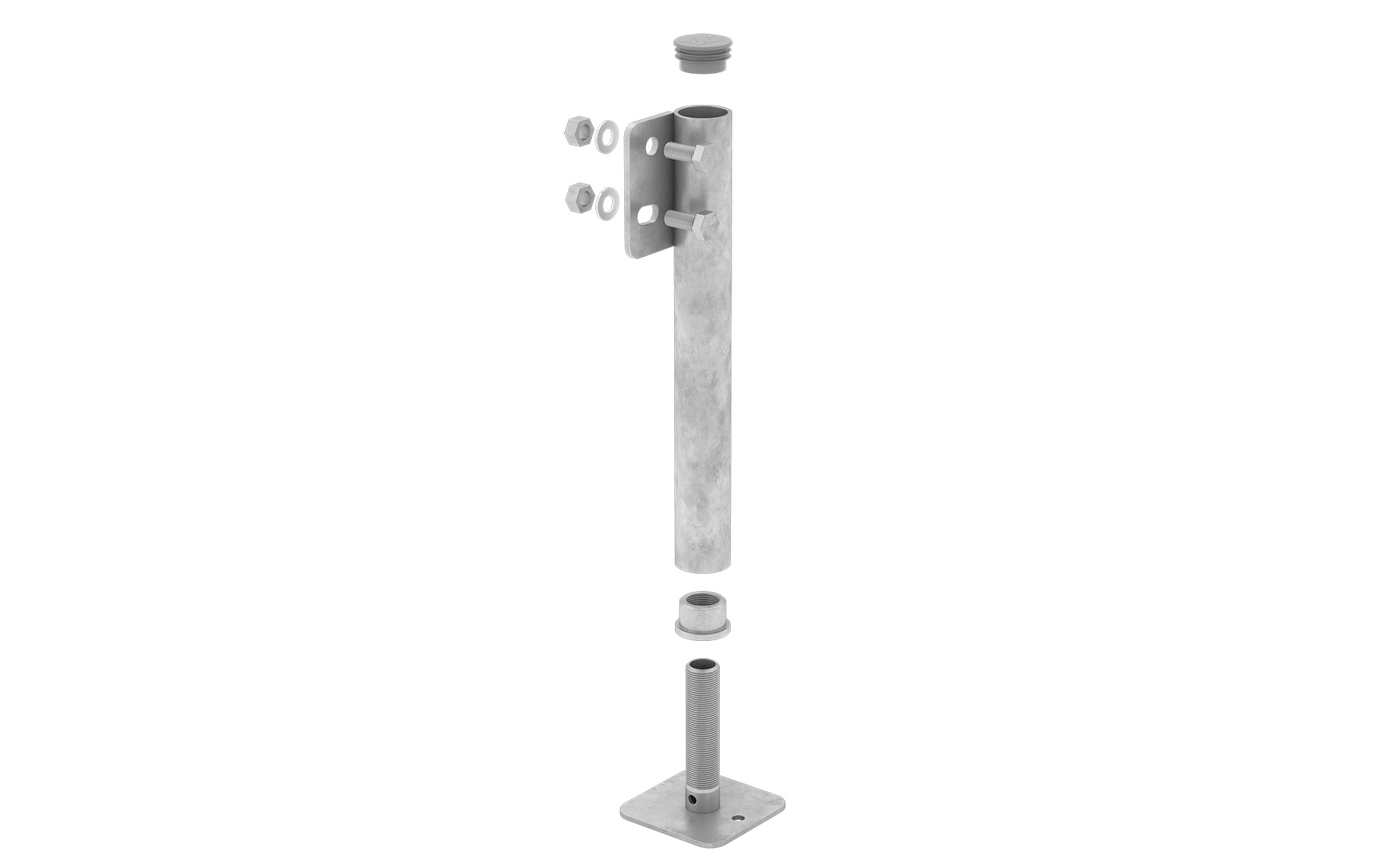

Steel tube support legs ø 42 mm in set of 4. A threaded bush is pushed into the tube at the bottom end. A footplate with a welded threaded pipe that matches into the threaded bushing gives an adjustment of 70 mm.
The lowest height to the upper plane is the support leg length +55 mm and maximum height +125 mm.
Finish: Hot dip galvanized
| Length (mm) | Part no. | Stocked |
|---|---|---|
| 350 | 1740350 | |
| 600 | 1740600 | |
| 1000 | 1741000 | |

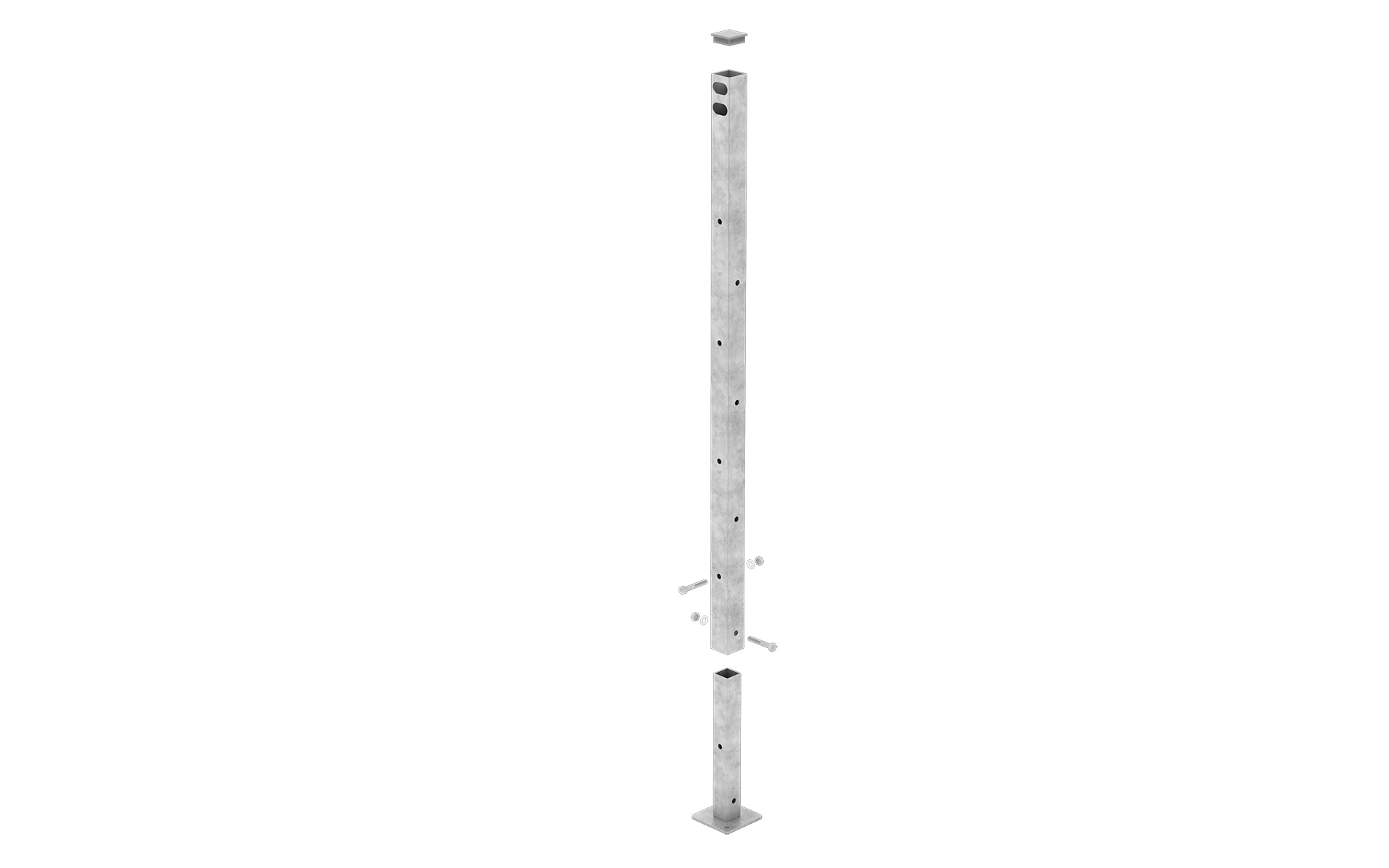

A complete and adjustable support leg with an adjustable length of 480 – 1600 mm. The support leg is made from square tube, CFCHS 60 x 60 x 3 mm, and is 1450 mm long. The square tube is cut to the requested length in connection with installation.
The support leg is delivered complete with leg, foot, plastic end cap and necessary nuts and bolts.
Support legs must be placed at every 3 metres.
| Name | Adjustable height (mm) | Part no. | Stocked |
|---|---|---|---|
| Support leg CFCHS | 480-1600 | 1741650 |
Surface treatment
Our gangways for the disabled are hot dip galvanized as standard. In our own plant, the ramps are surface treated to withstand great stress. The method provides a very robust protection against corrosion. For more information, please visit our page for surface treatment.
Hot dip galvanized
