SECTIONAL RAILING

Weland has a large range of sectional railing. This railing is used predominately in industry and in public areas.


As standard, the sectional railing is manufactured with 40 x 40 x 3 mm railing posts in CFHRS section with fixings for side installation or top installation. Our railing is dimensioned for 1.0 kN/m. The railing can be placed both indoors and outdoors. Naturally, you can order variants of the standard design, for example with wooden handrails, varnished, with fillings against walls, bends etc. Please contact us for advice on your project.

Models

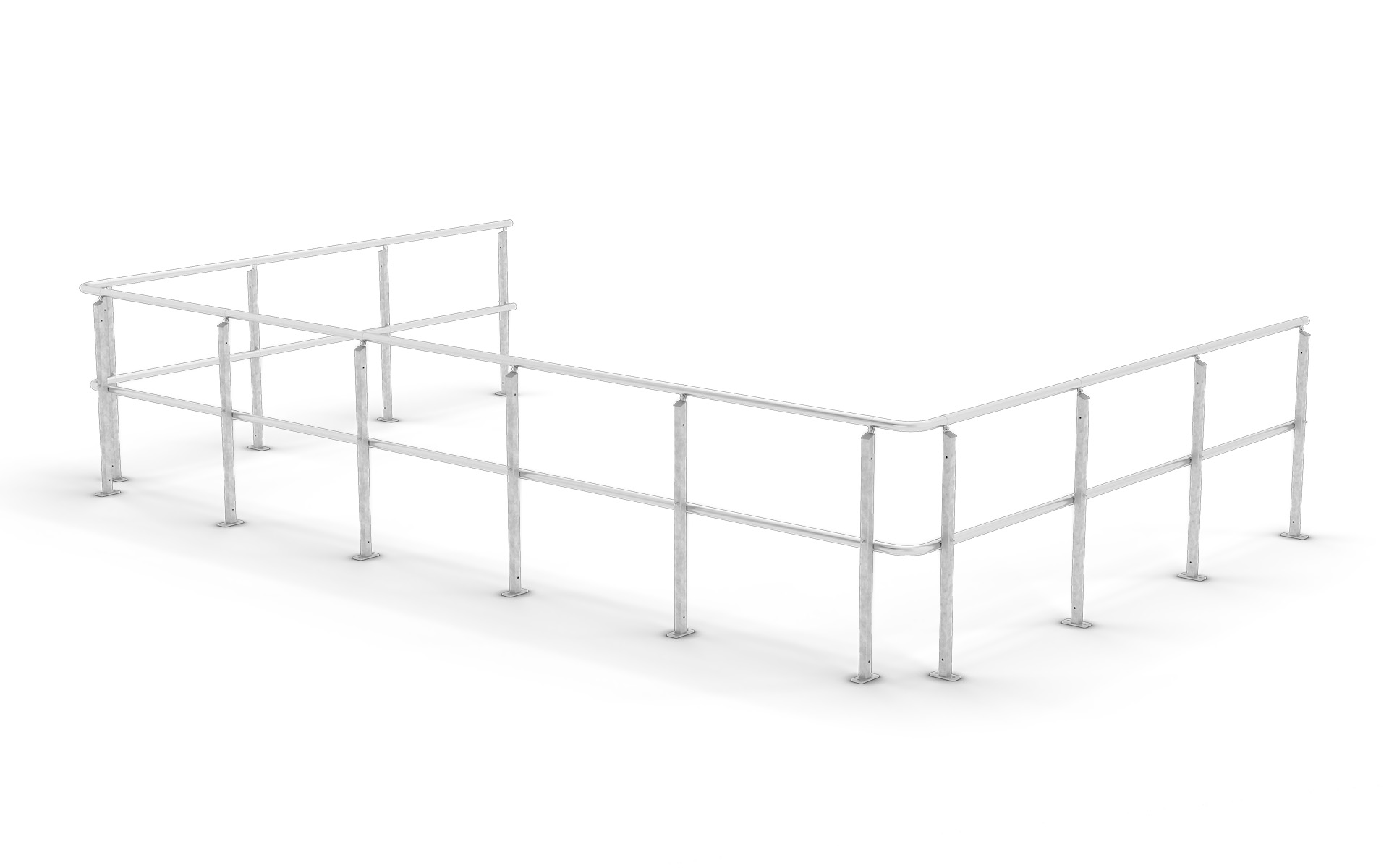

We manufacture several different models of sectional railing. All models are quickly and easily installed without welding; the handrail fastens to the railing posts using clamps and is then screwed into place. The railing can also be provided with corner sections. Round bar railing and intermediate rail are stocked for quick delivery.

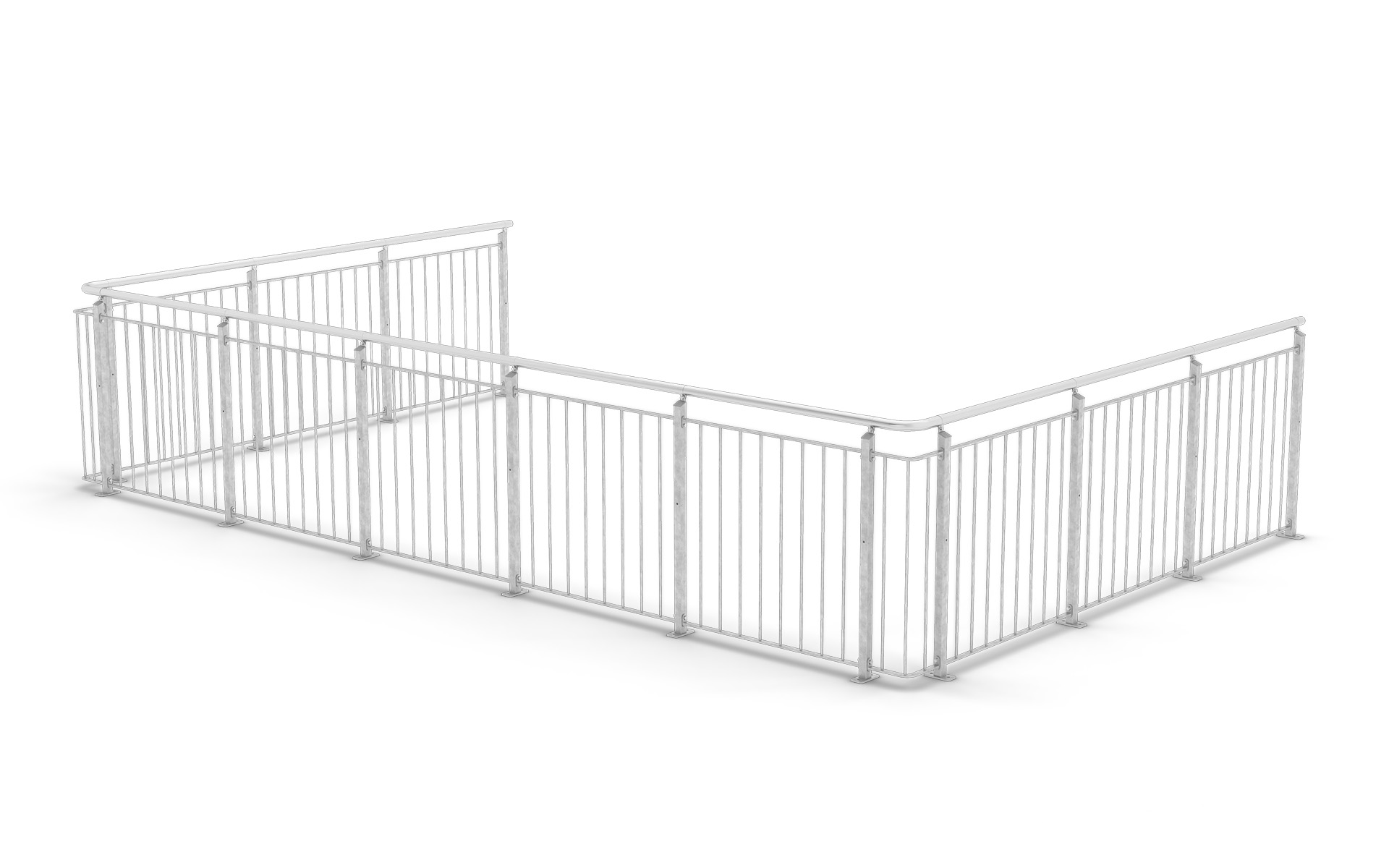

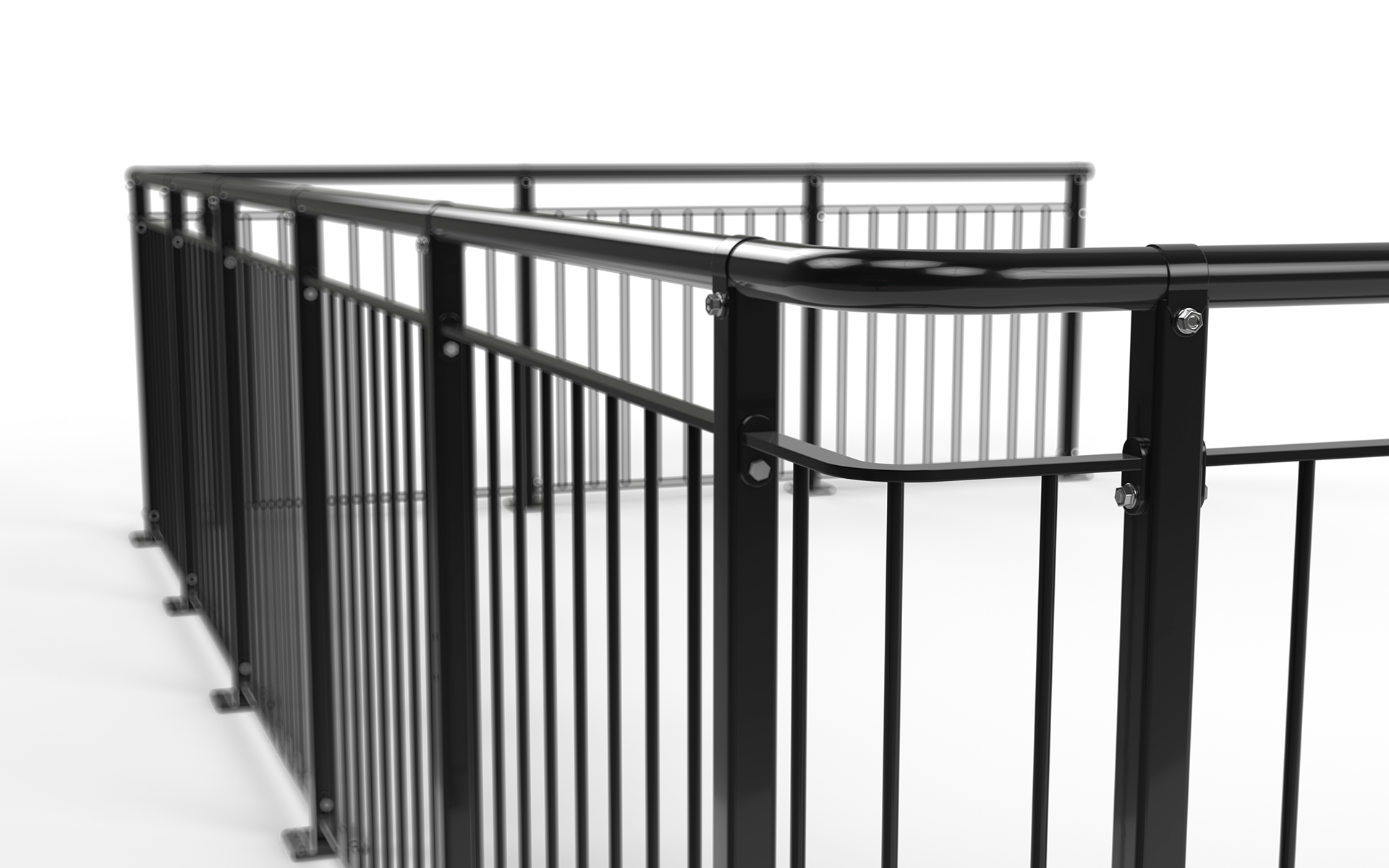

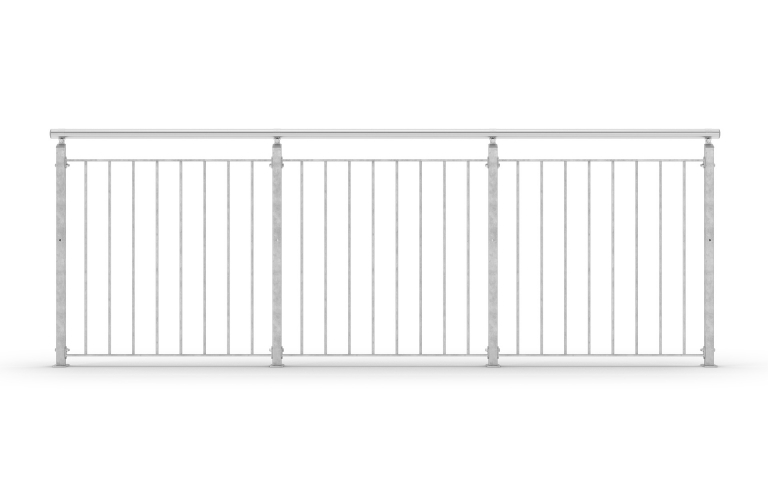

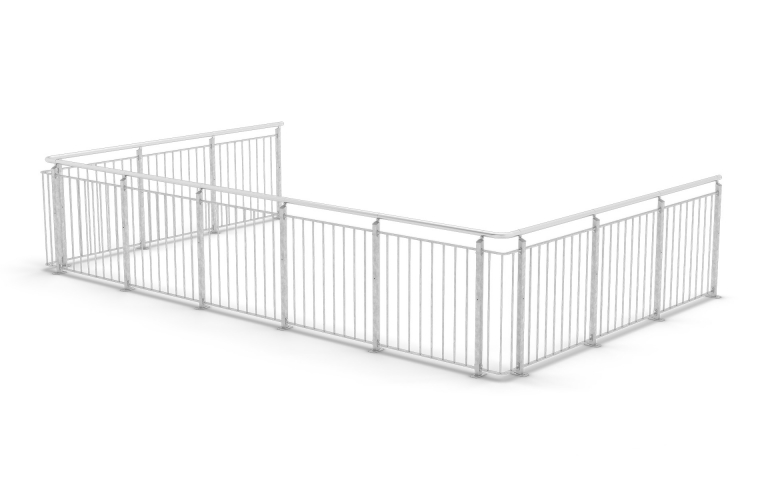

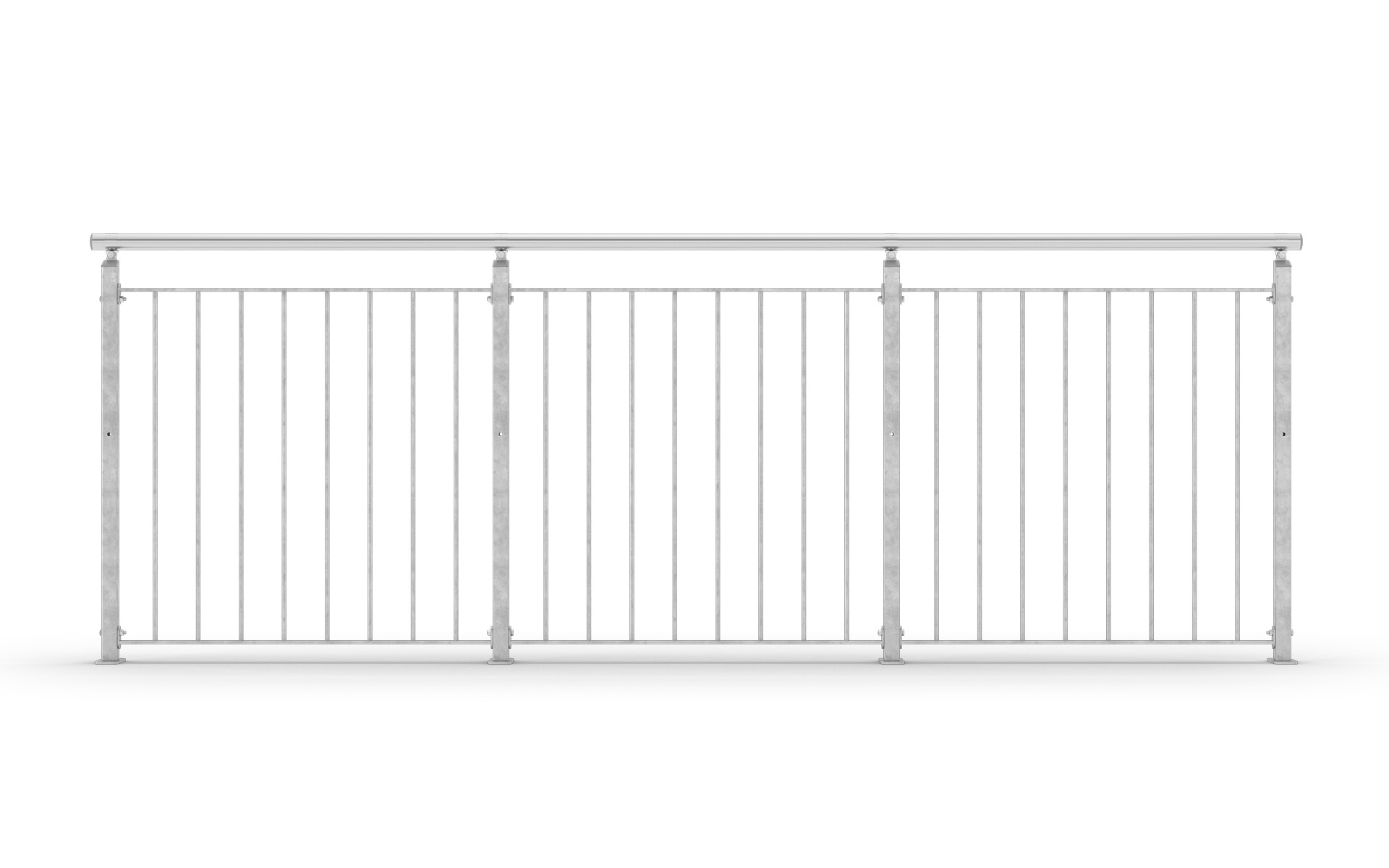

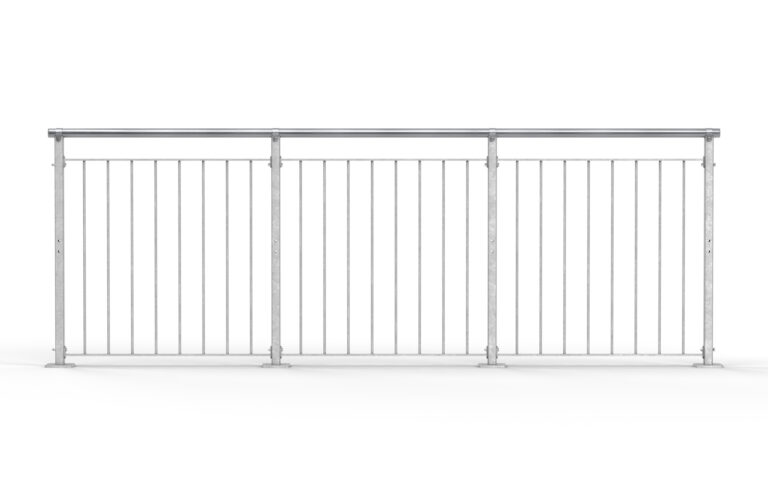

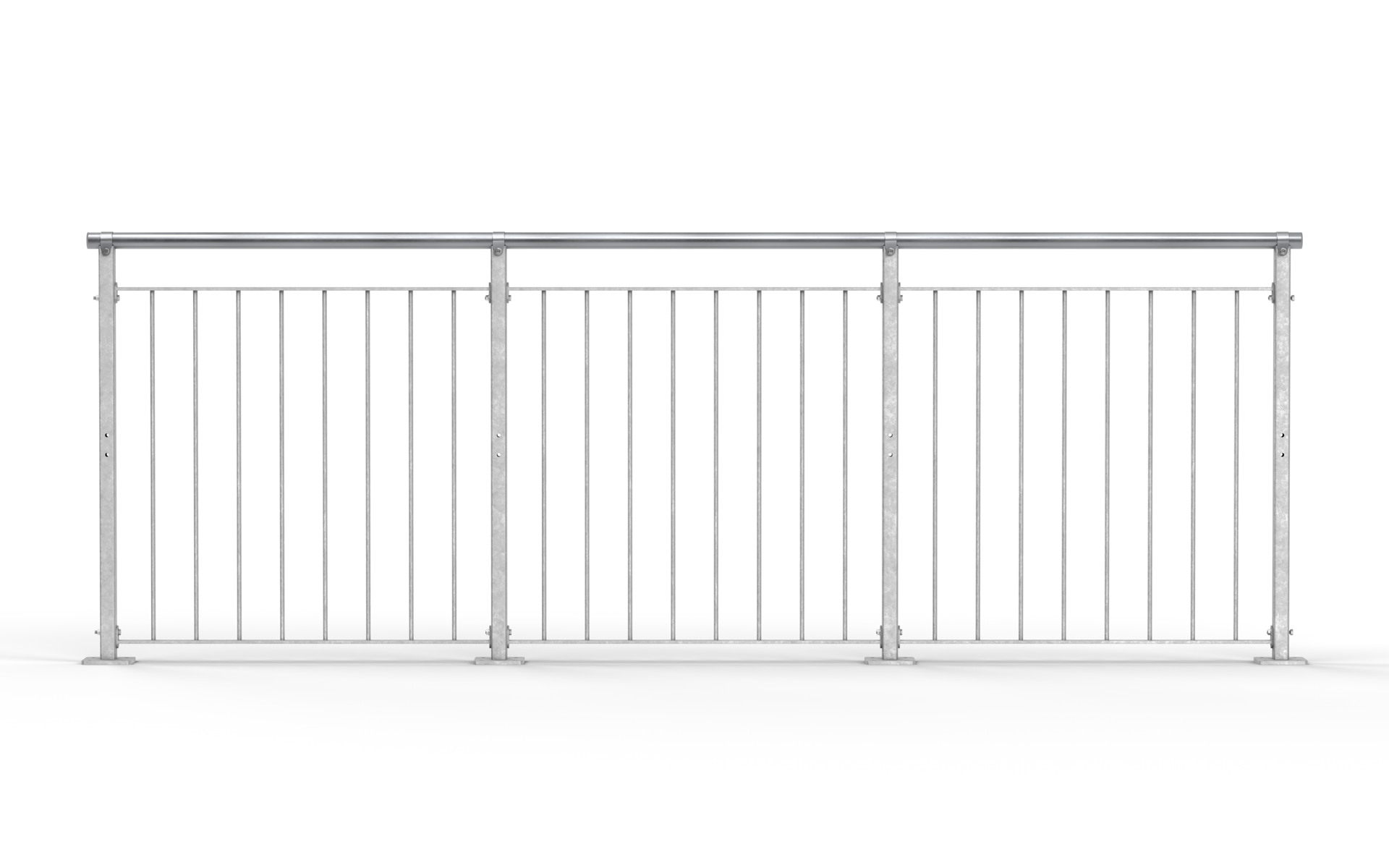

Railing, Round Bar

A railing focusing on form and design. Childproof with maximum opening 100 mm.

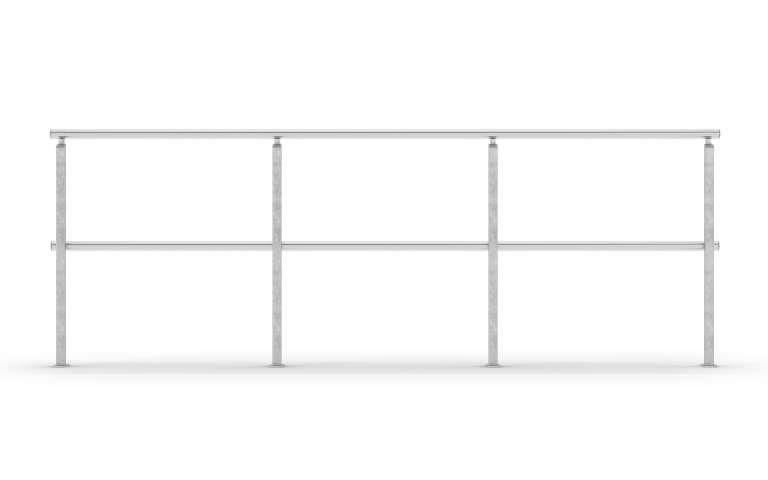

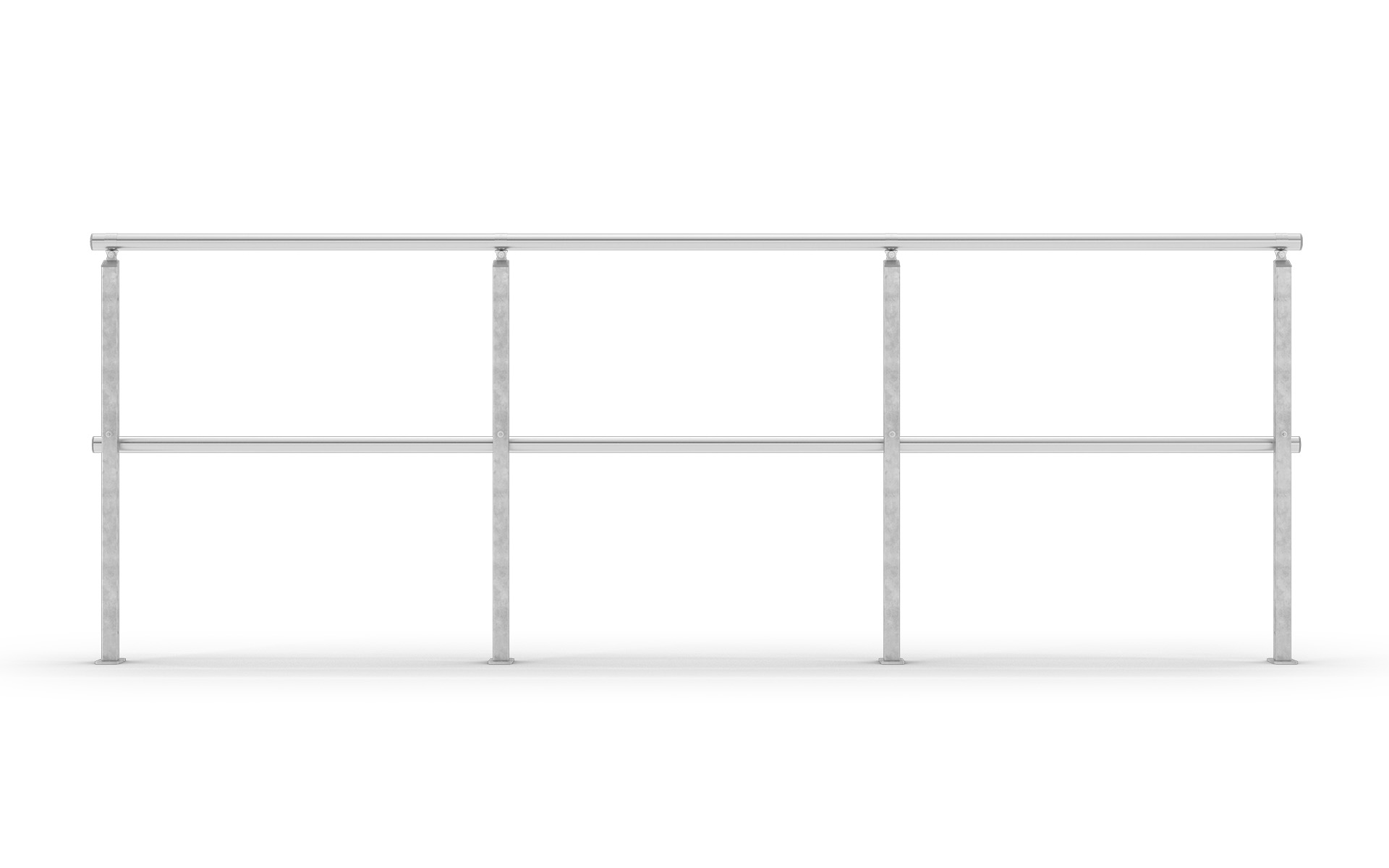

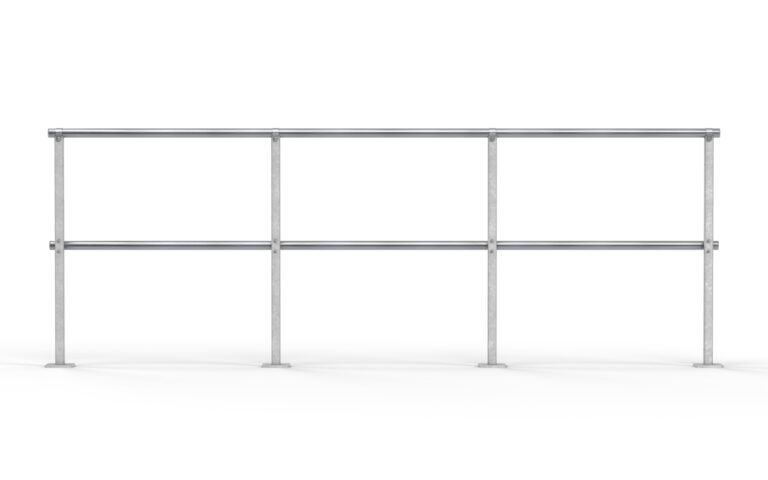

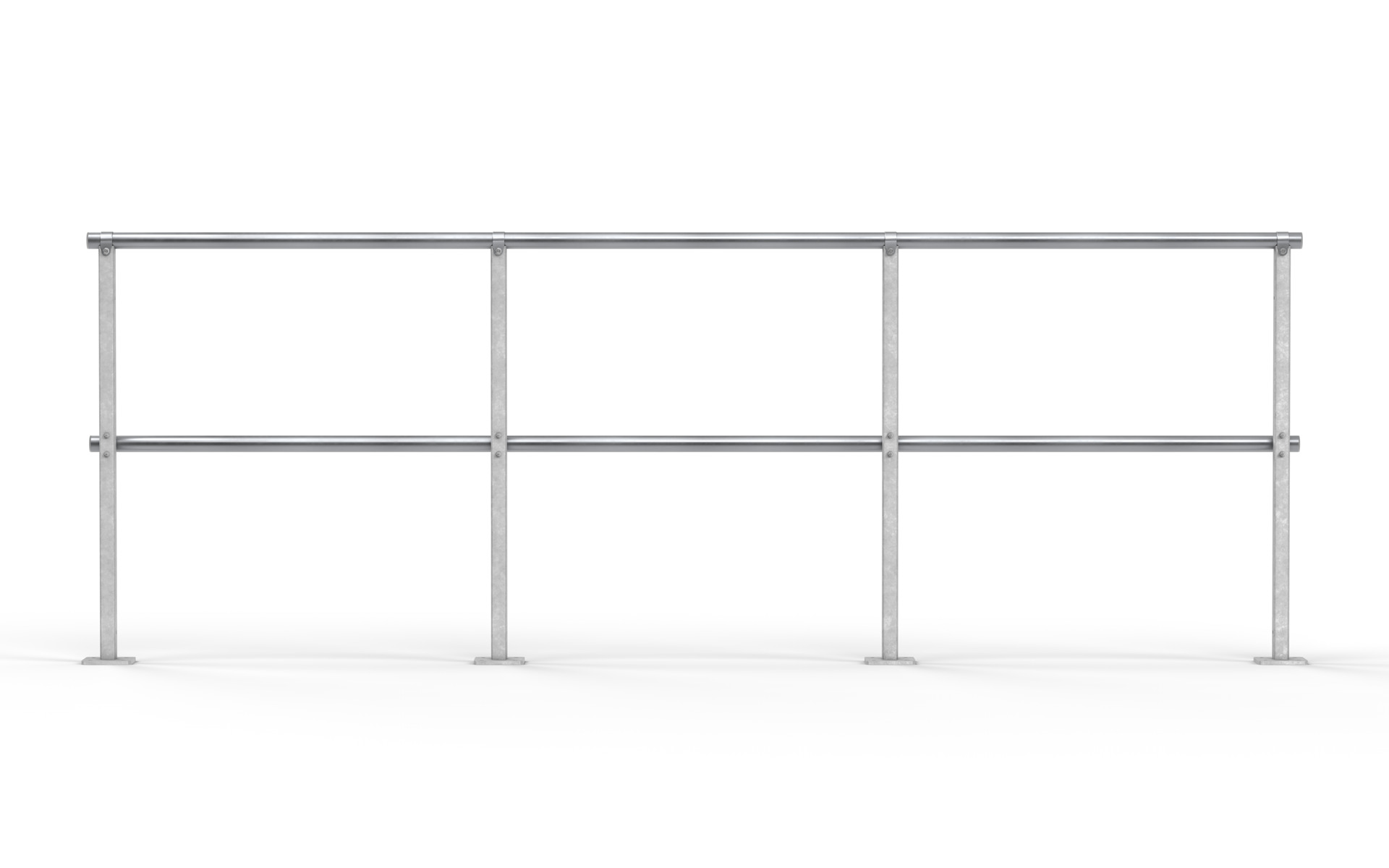

Railing, Intermediate Rail

The railing is provided with an intermediate rail and is an industrial railing. Not counted as childproof.

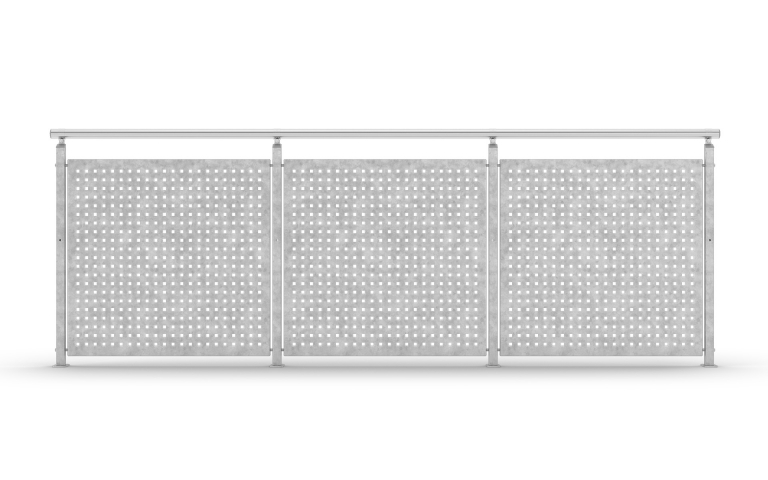

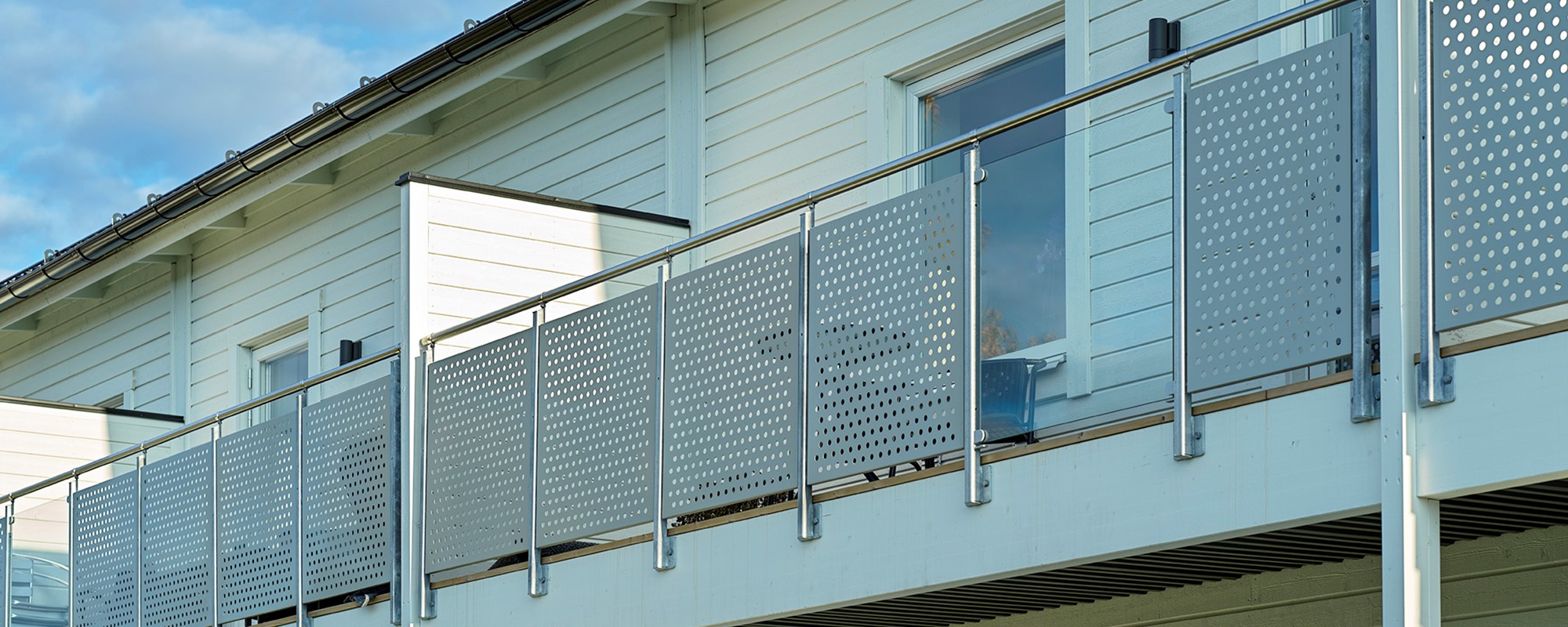

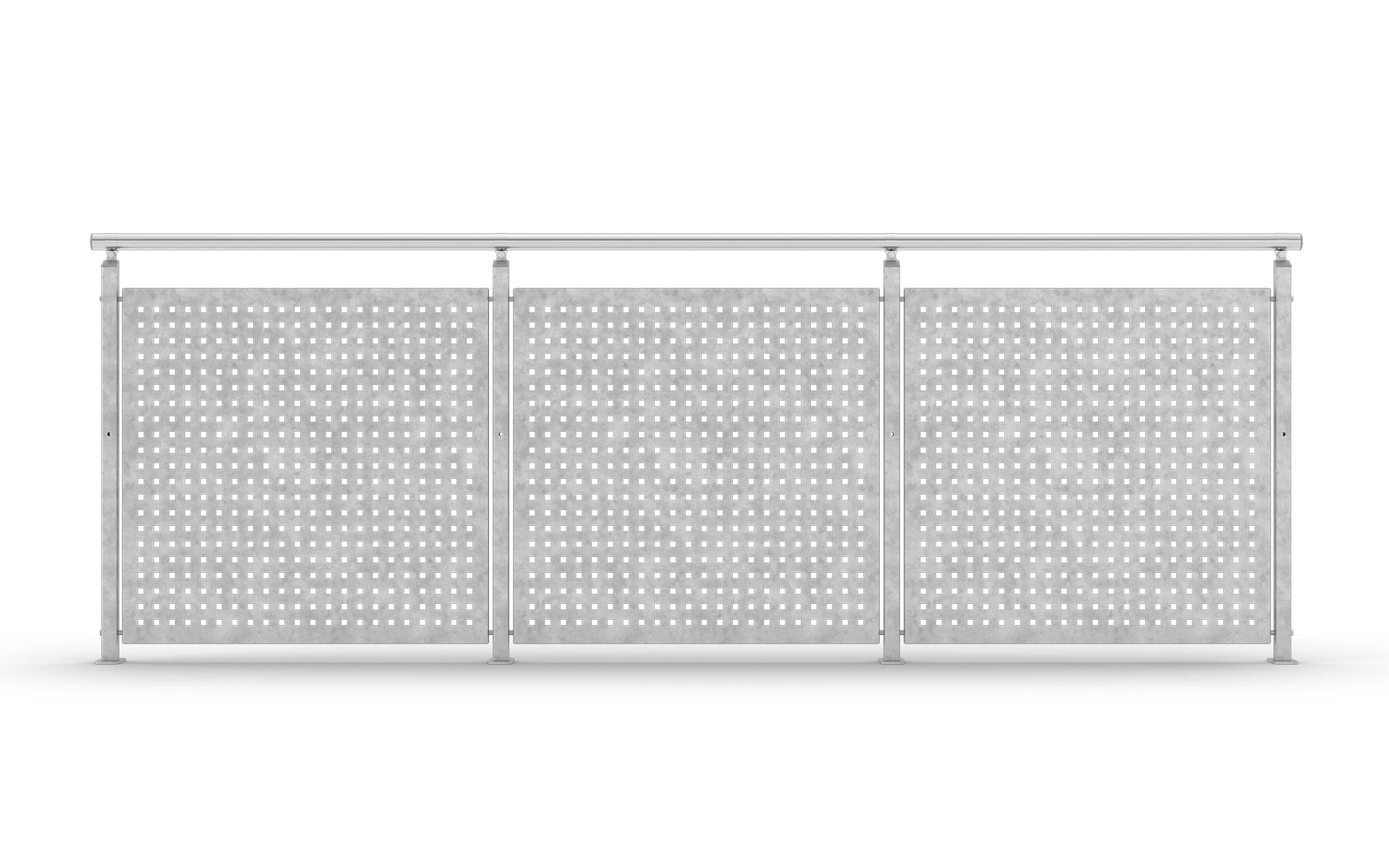

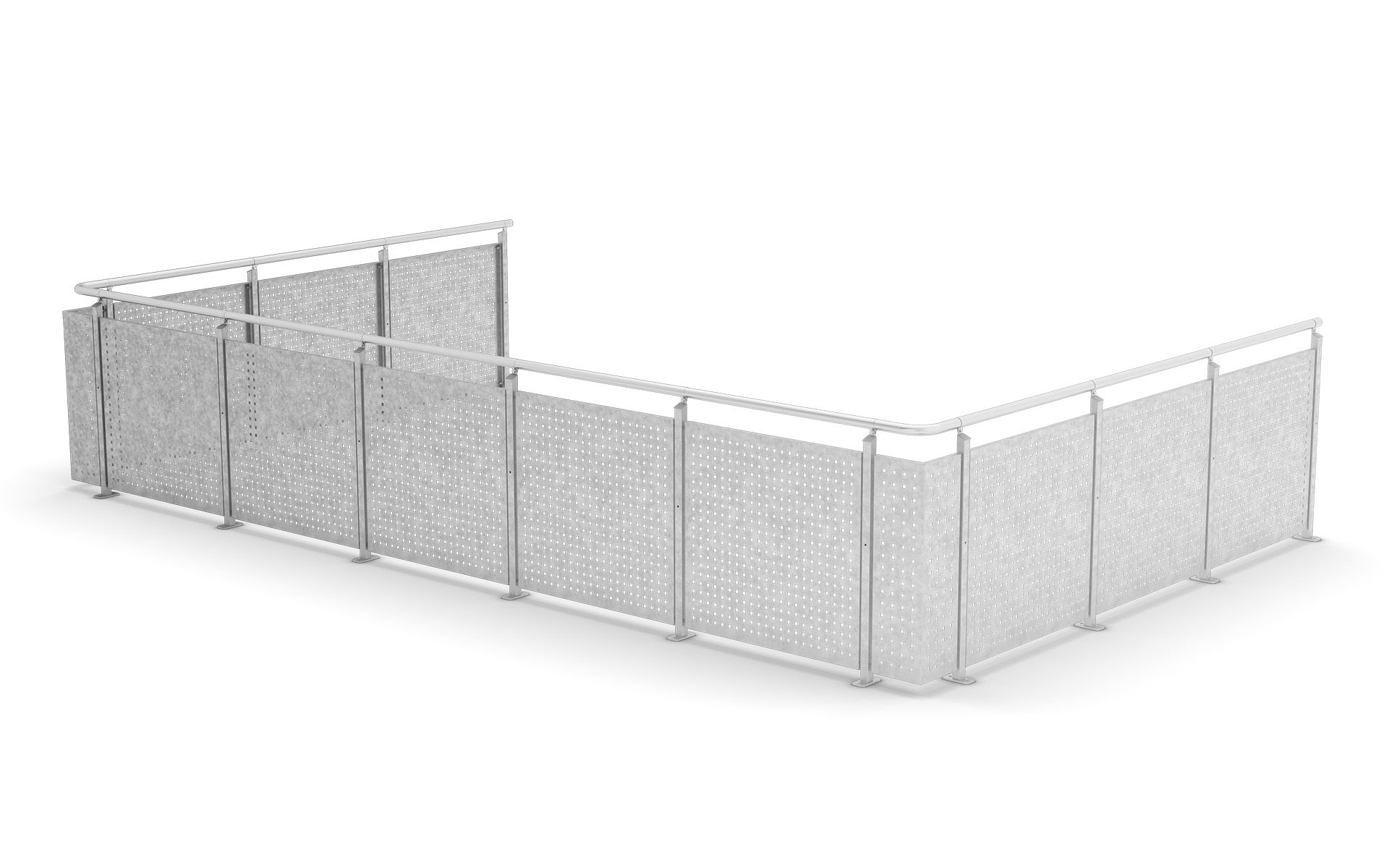

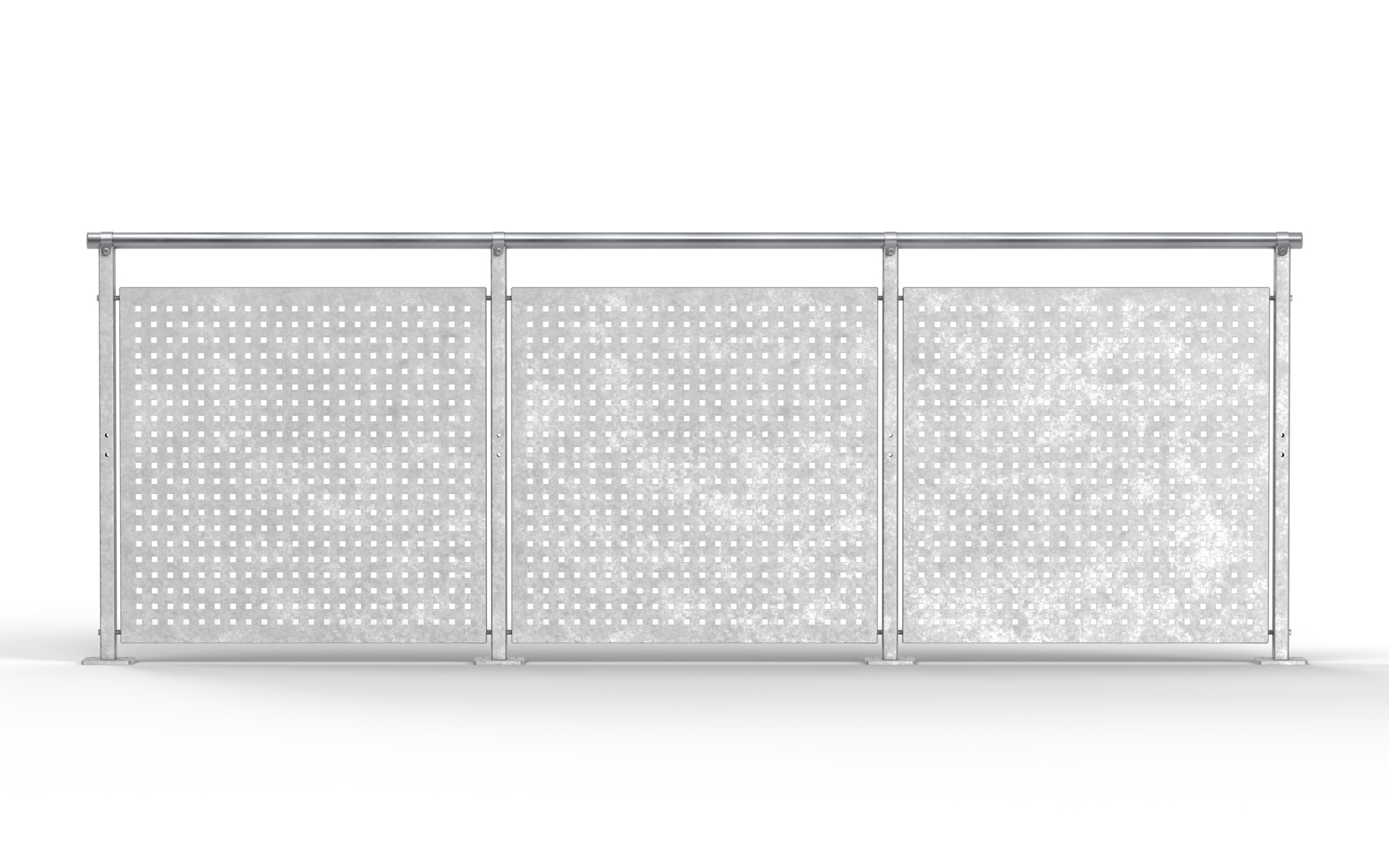

Railing, Sheet Metal

Railing in solid or perforated metal. Childproof with maximum opening 100 mm.

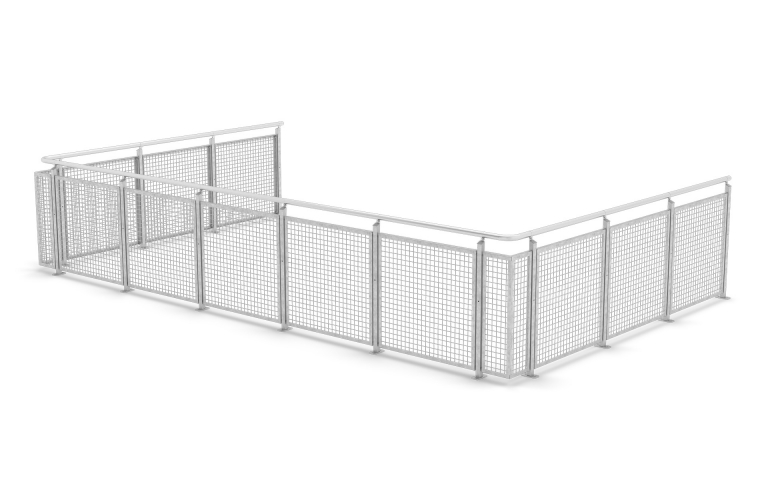

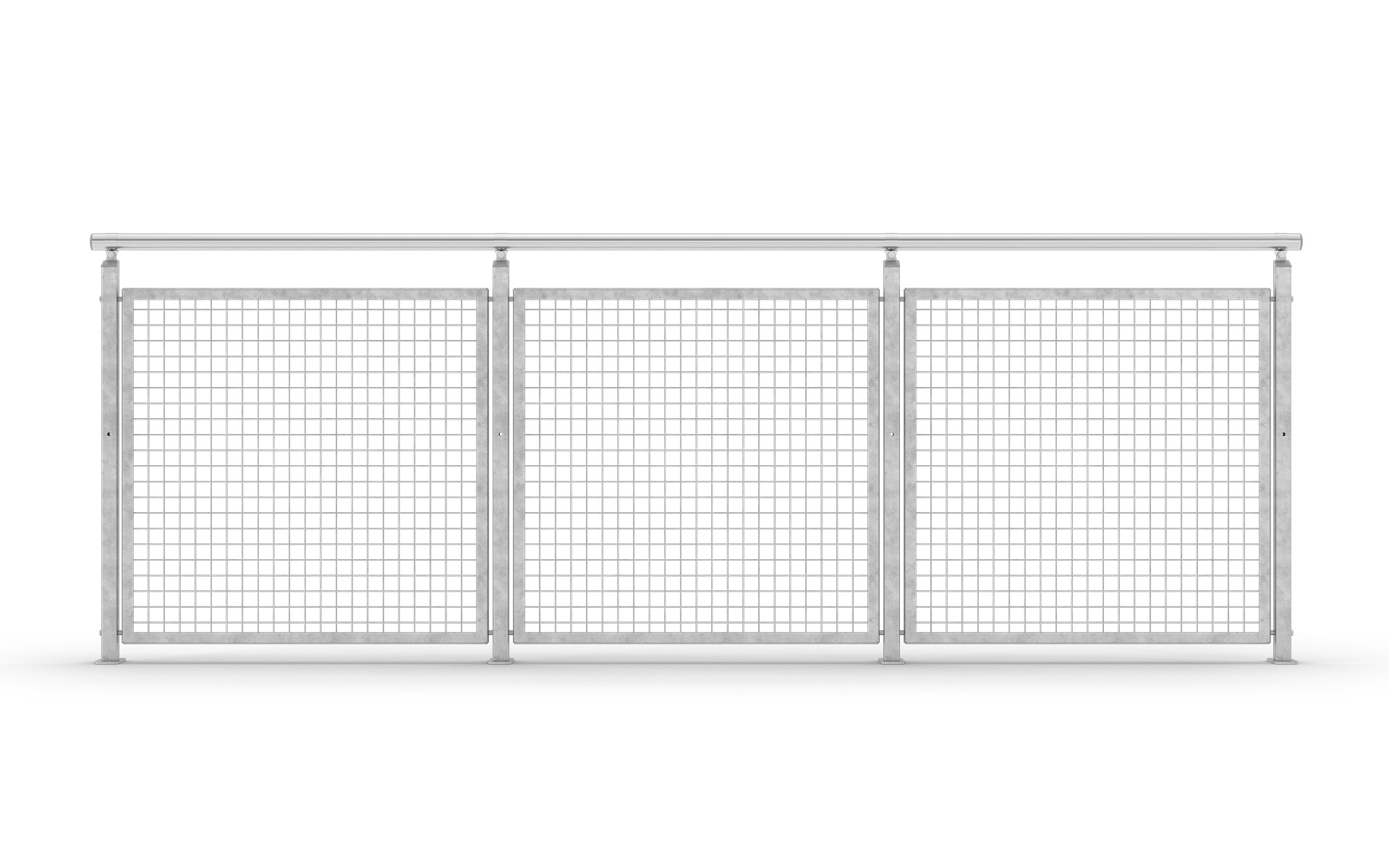

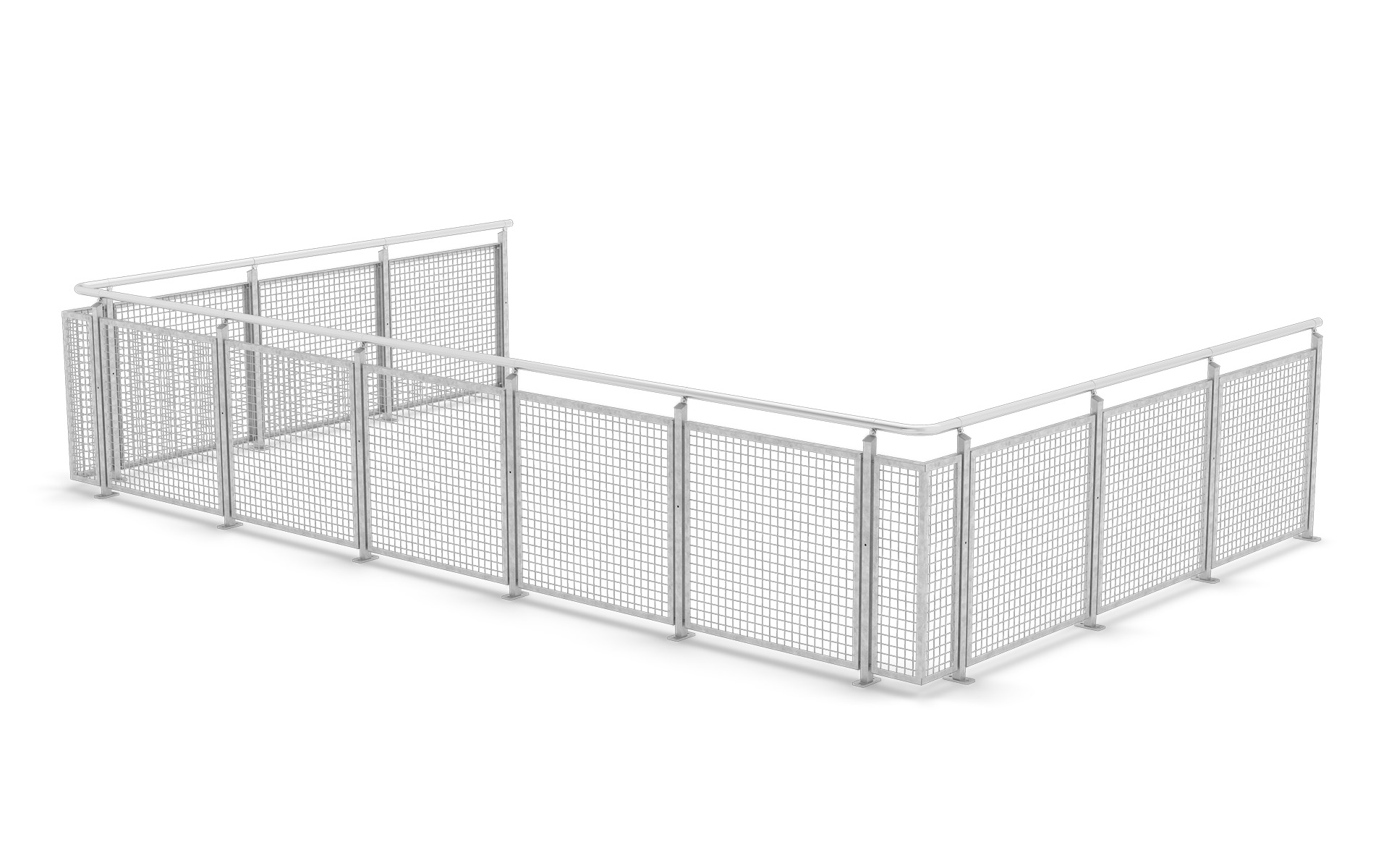

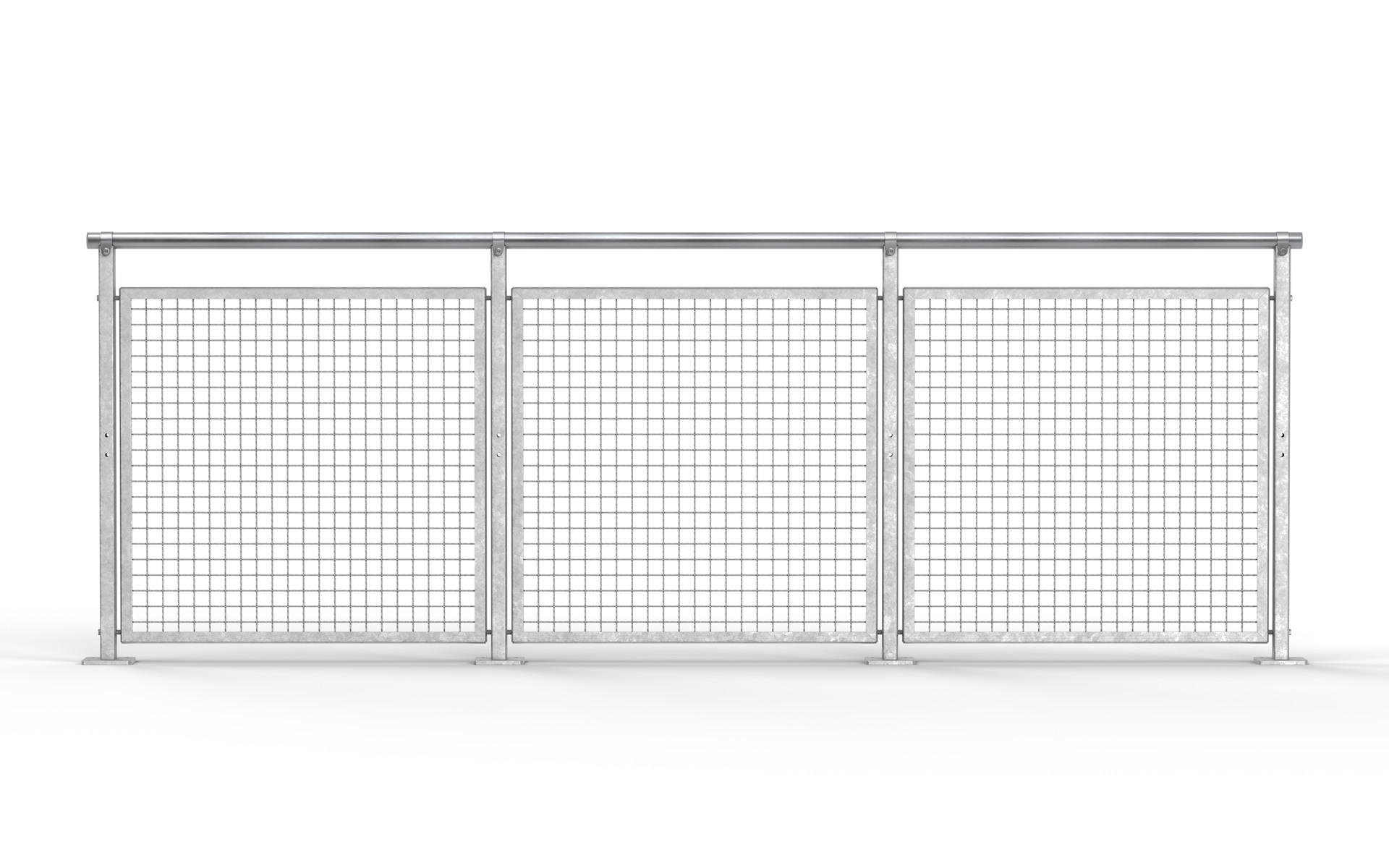

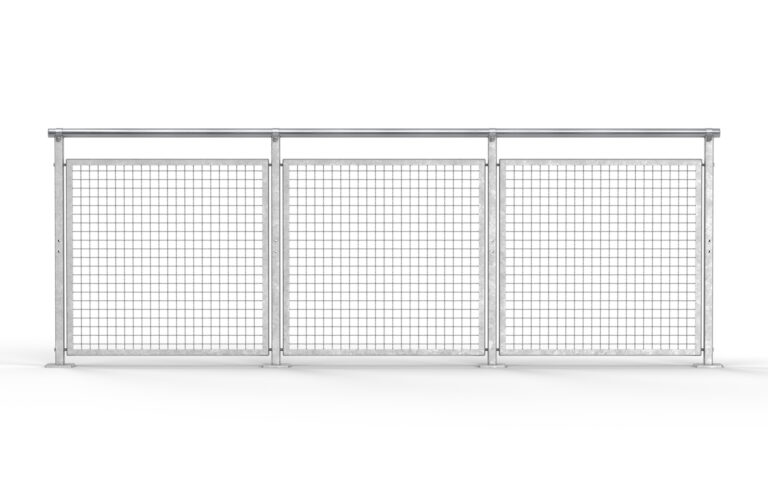

Railing, Woven wire mesh

Railing in crenelated mesh plate. Childproof with maximum opening 100 mm.

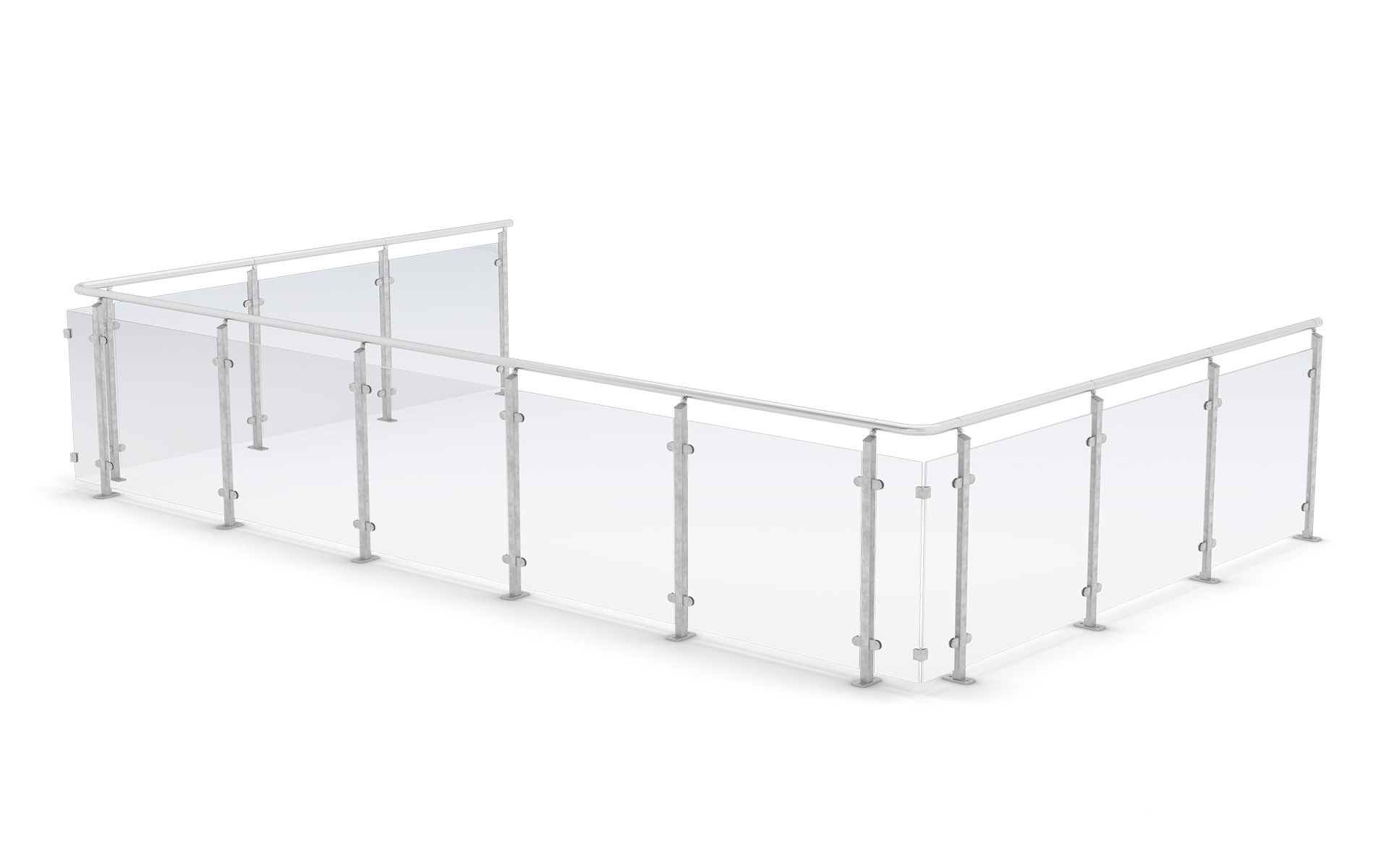

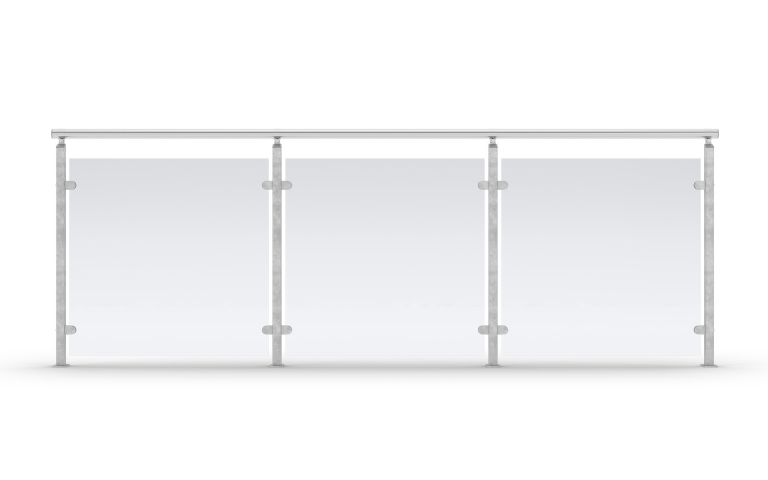

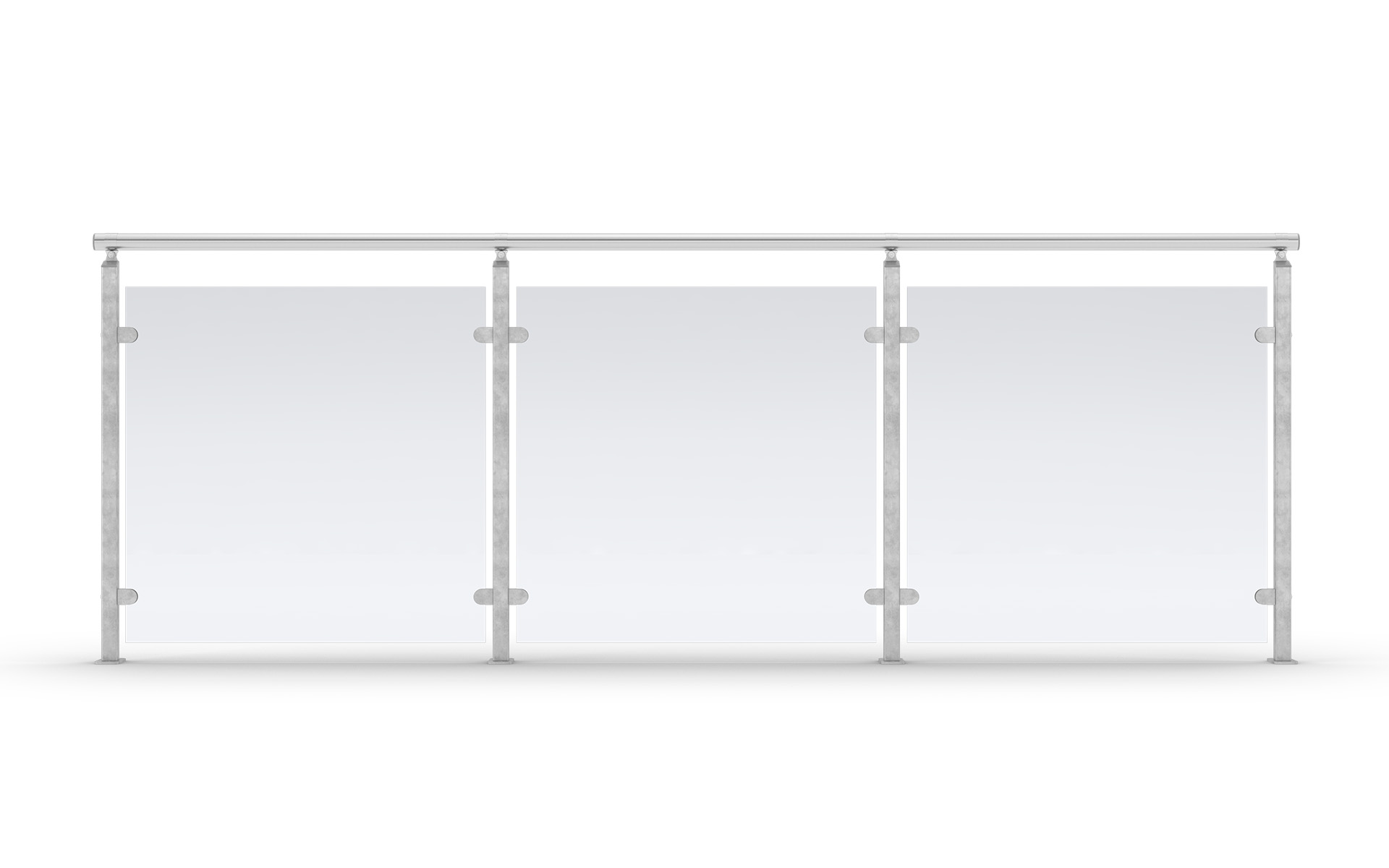

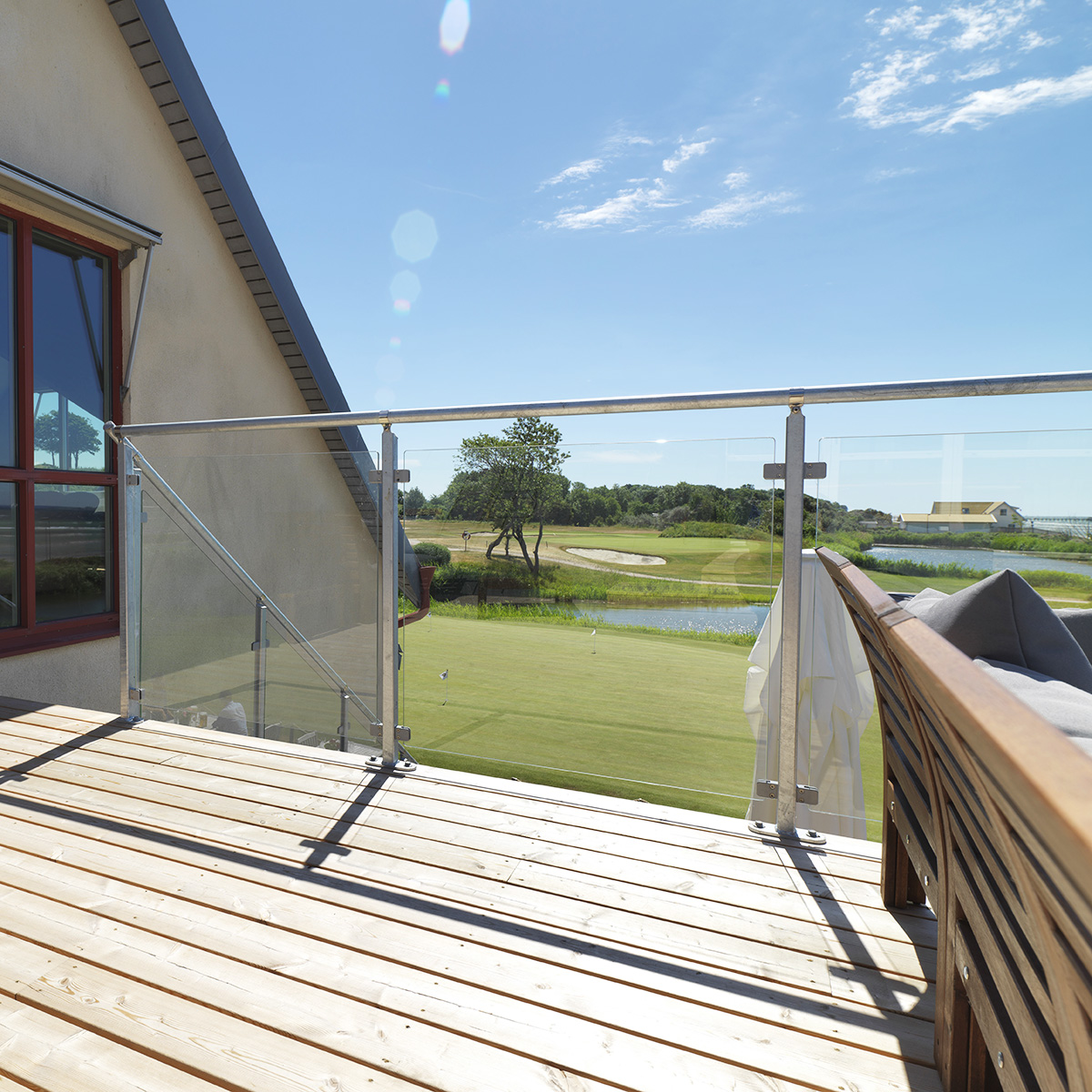

Railing, Glass

Railing filled with glass for an extra finish. Childproof with maximum opening 100 mm.

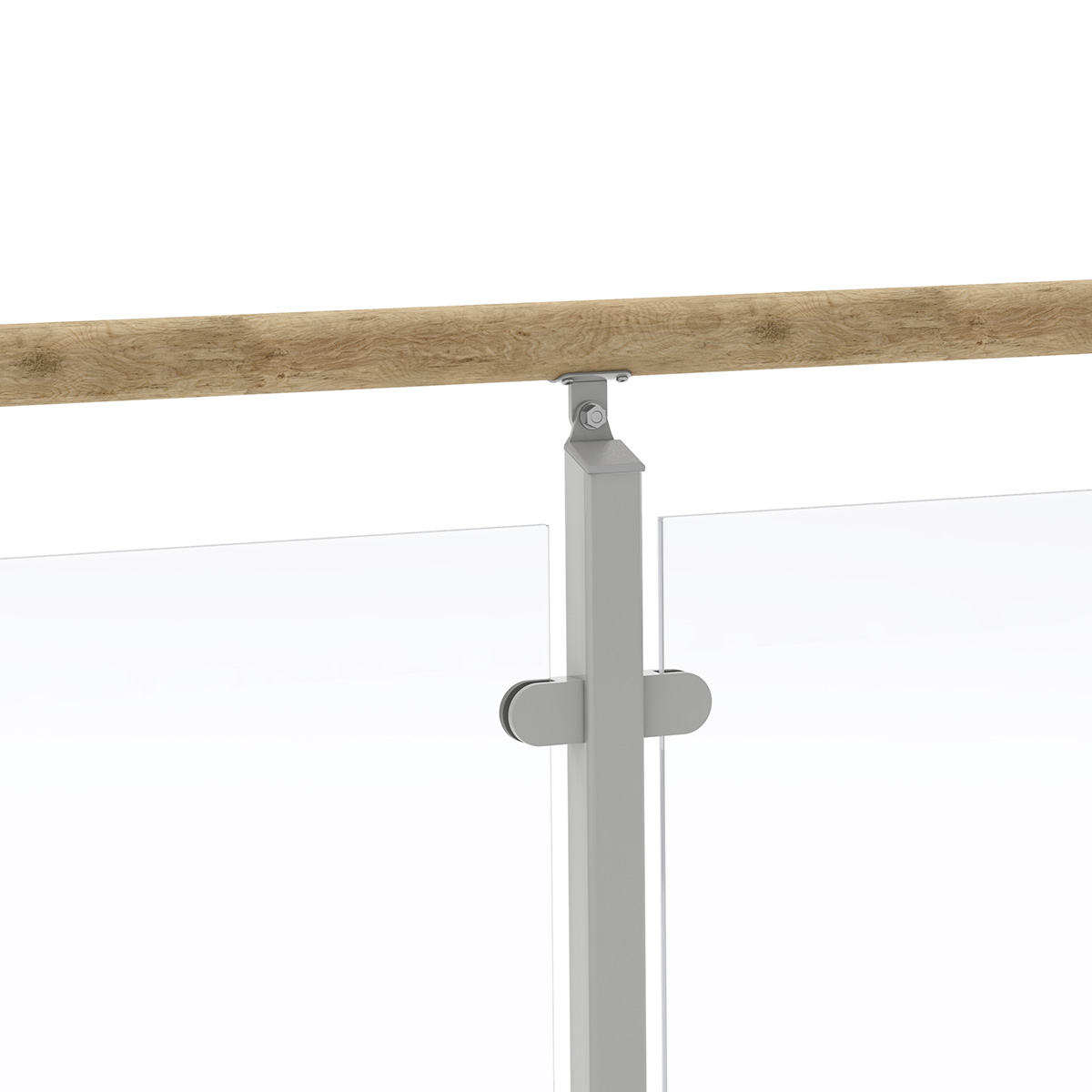

Handrail

Normally, our handrails are manufactured in a stainless untreated finish. We also offer a wide range of other types of materials and surface treatments. In painted and stainless designs the handrail is 42 mm in diameter and 50 mm in wood.
We can also equip our handrails with lighting. Read more about stainless steel handrails here.

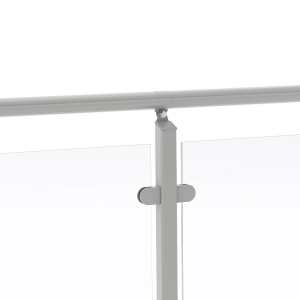

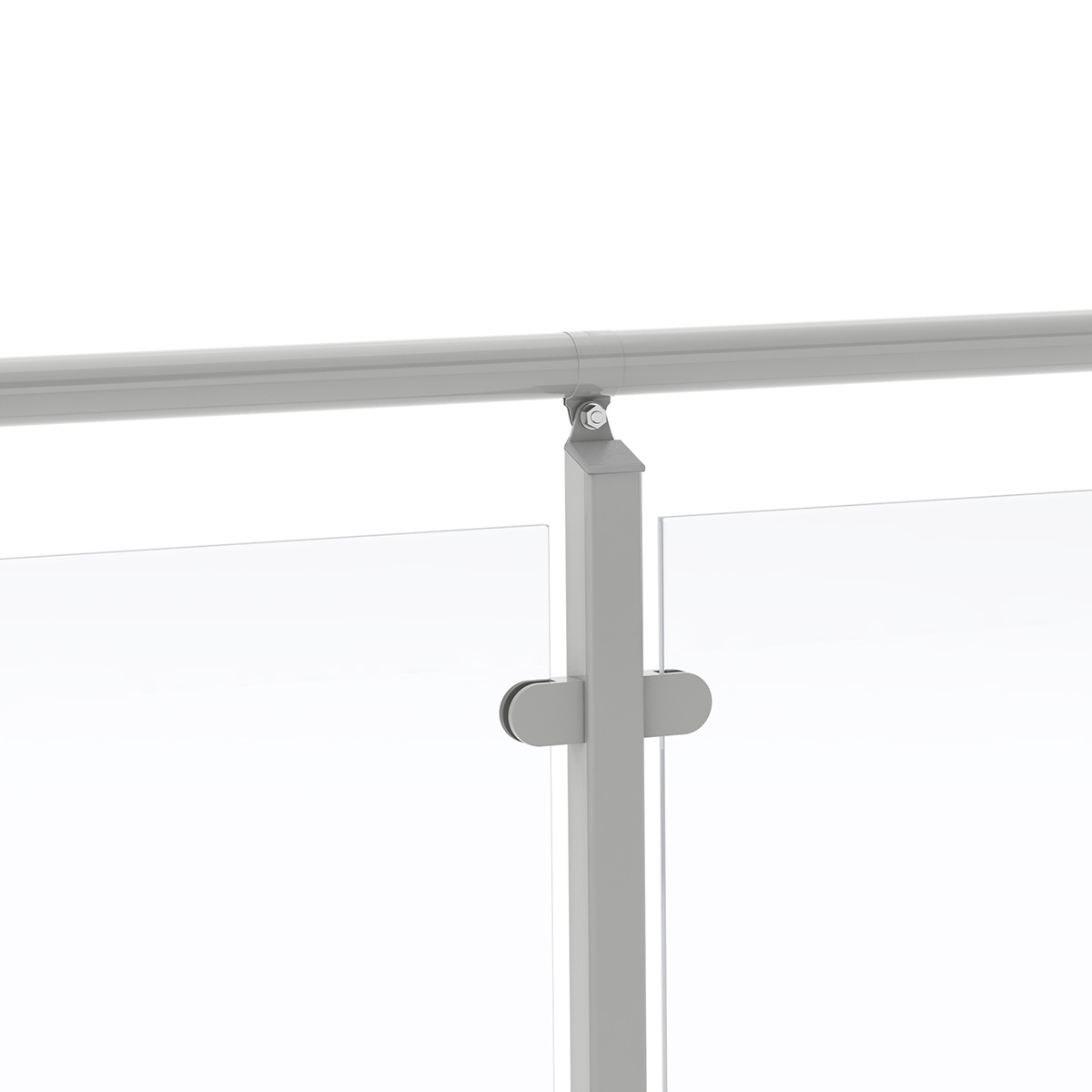

Painted

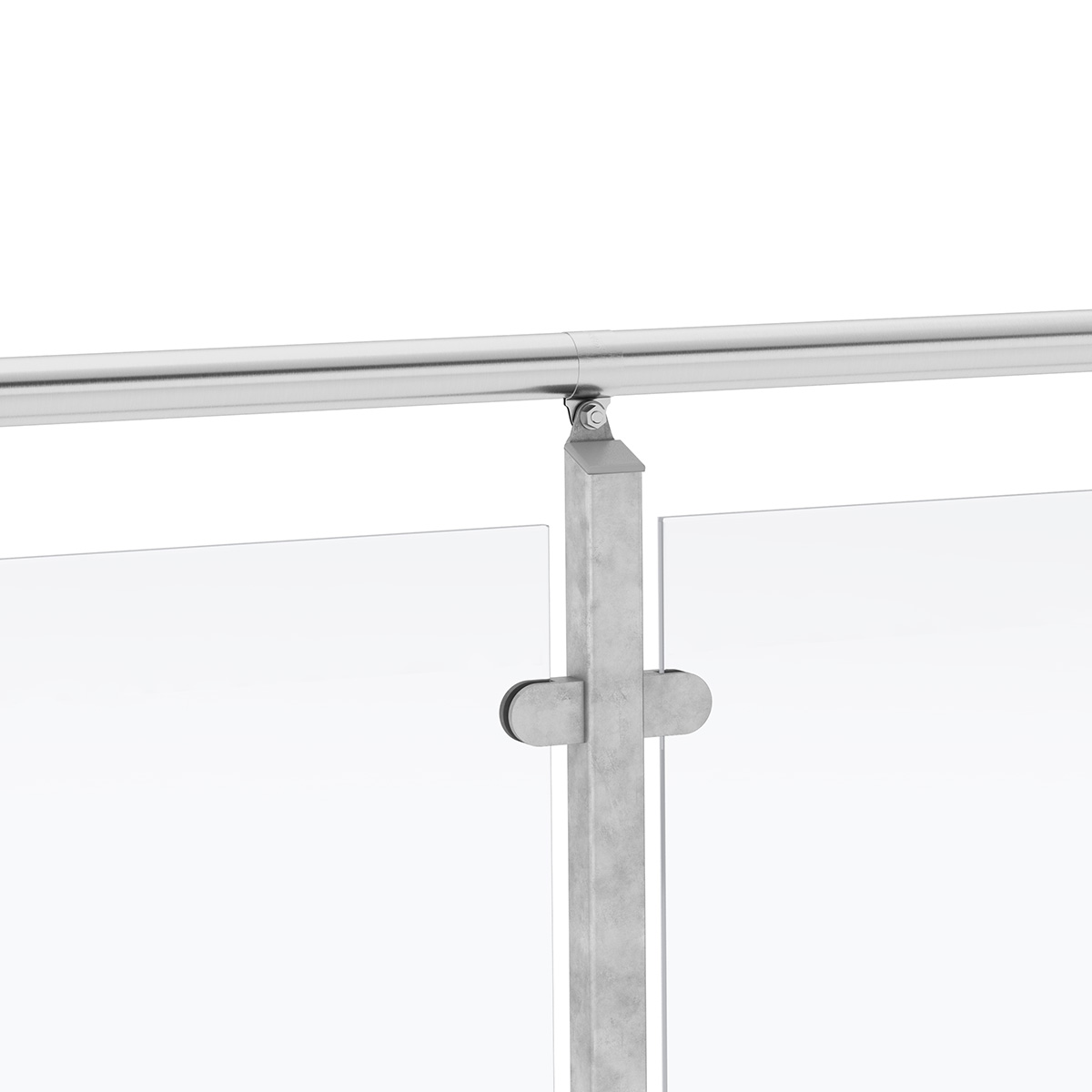

Stainless steel

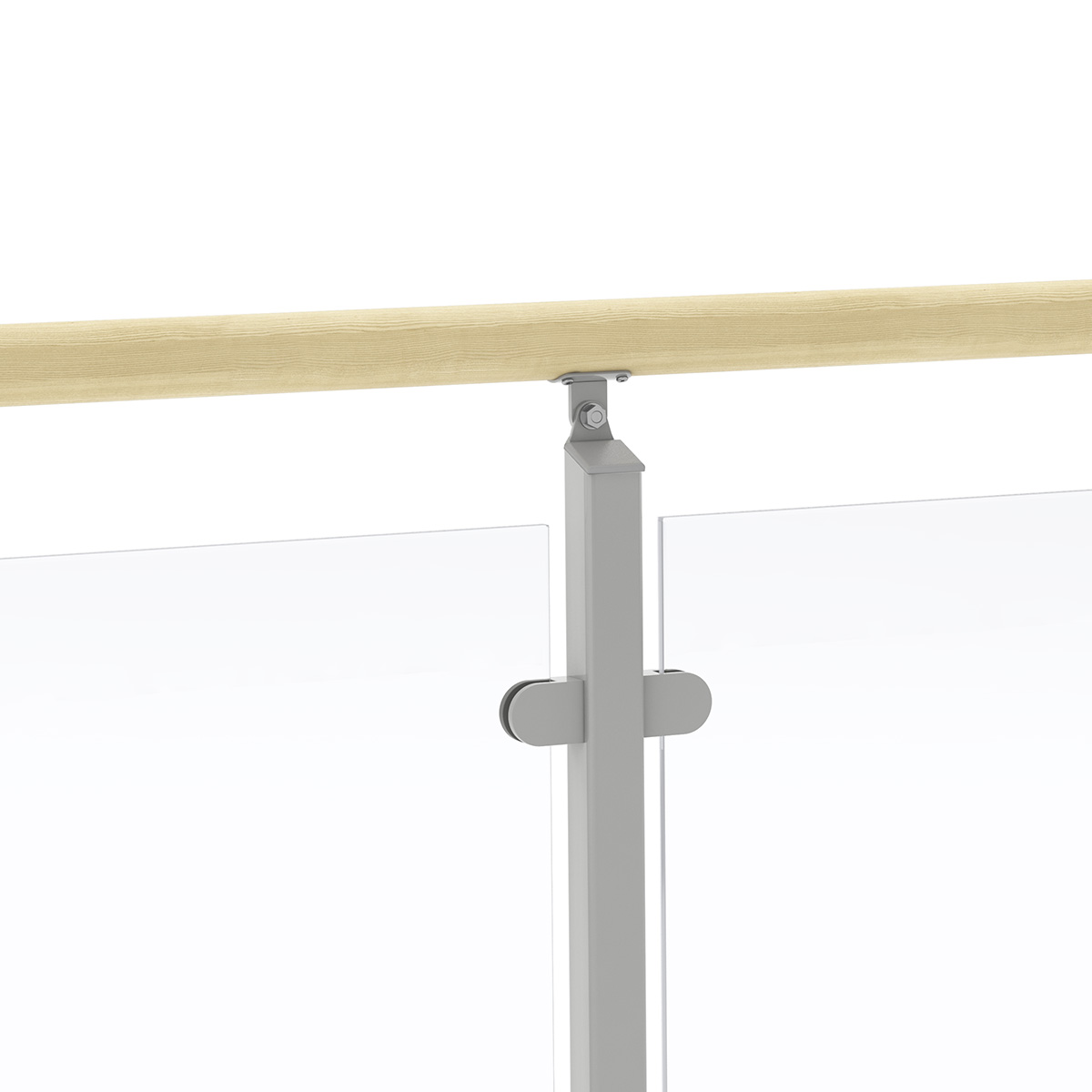

Ash

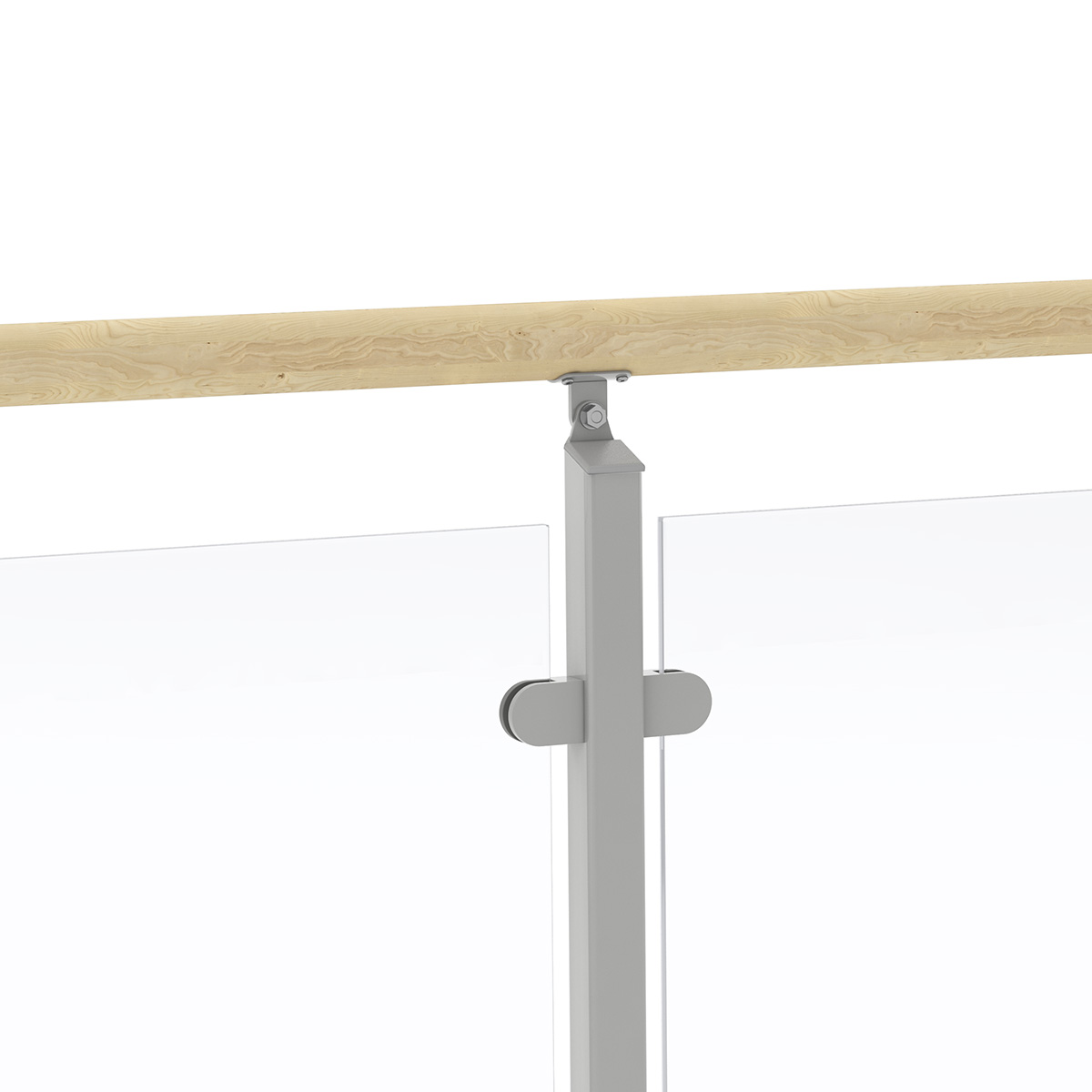

Birch

Beech

Oak


Accessories

Kick strip with height 130 mm can be mounted to Sectional Railing, Intermediate Rail.

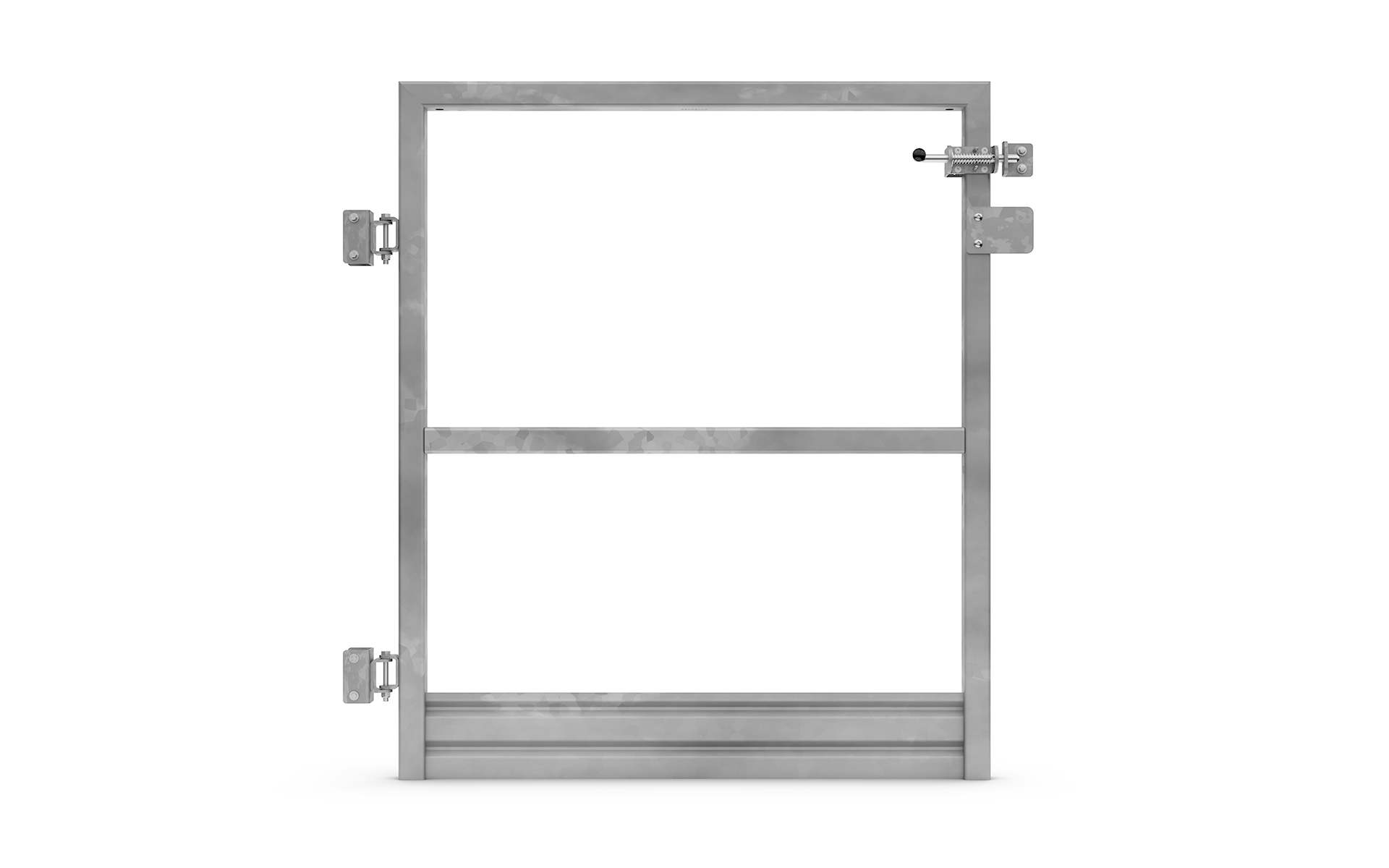

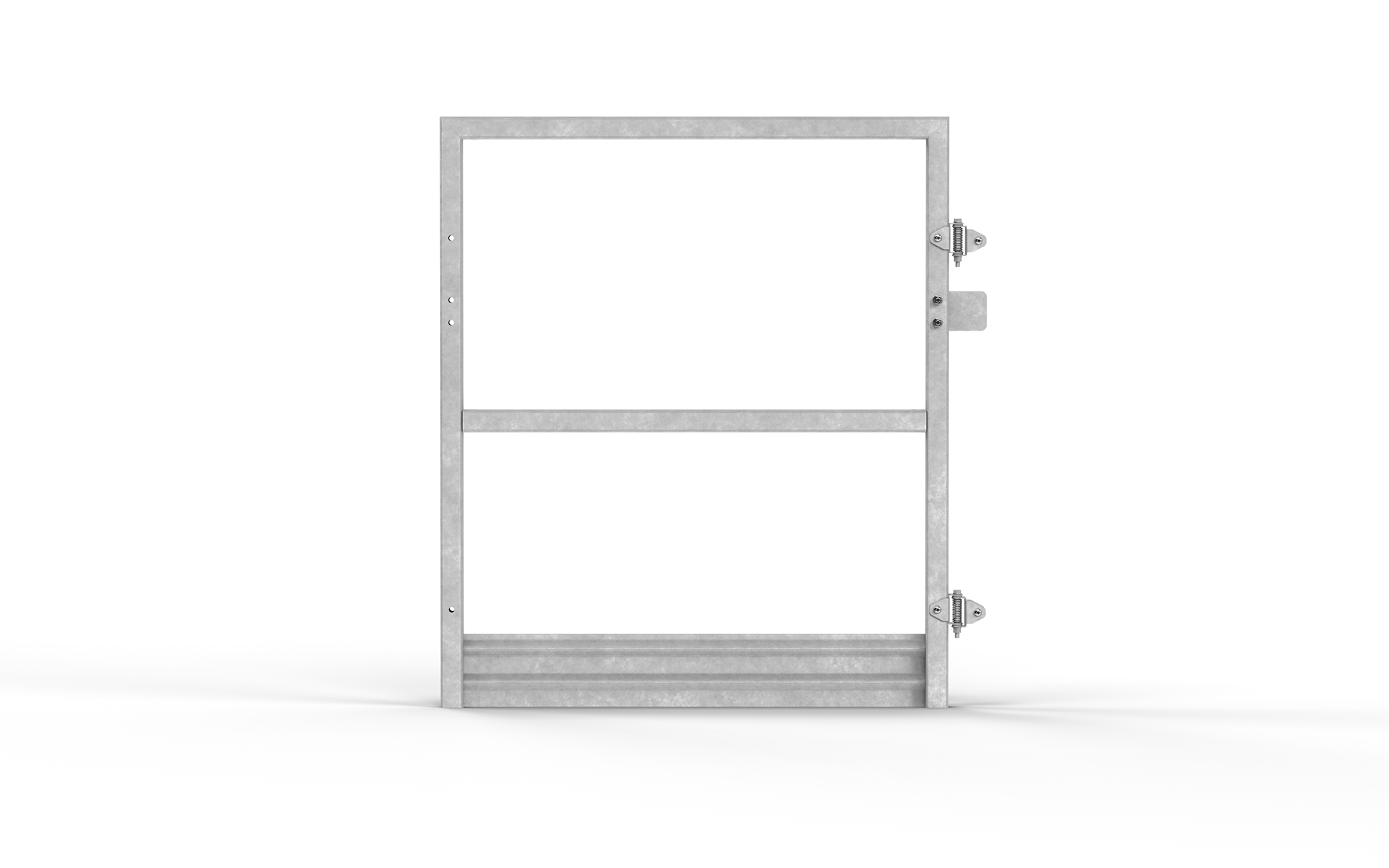

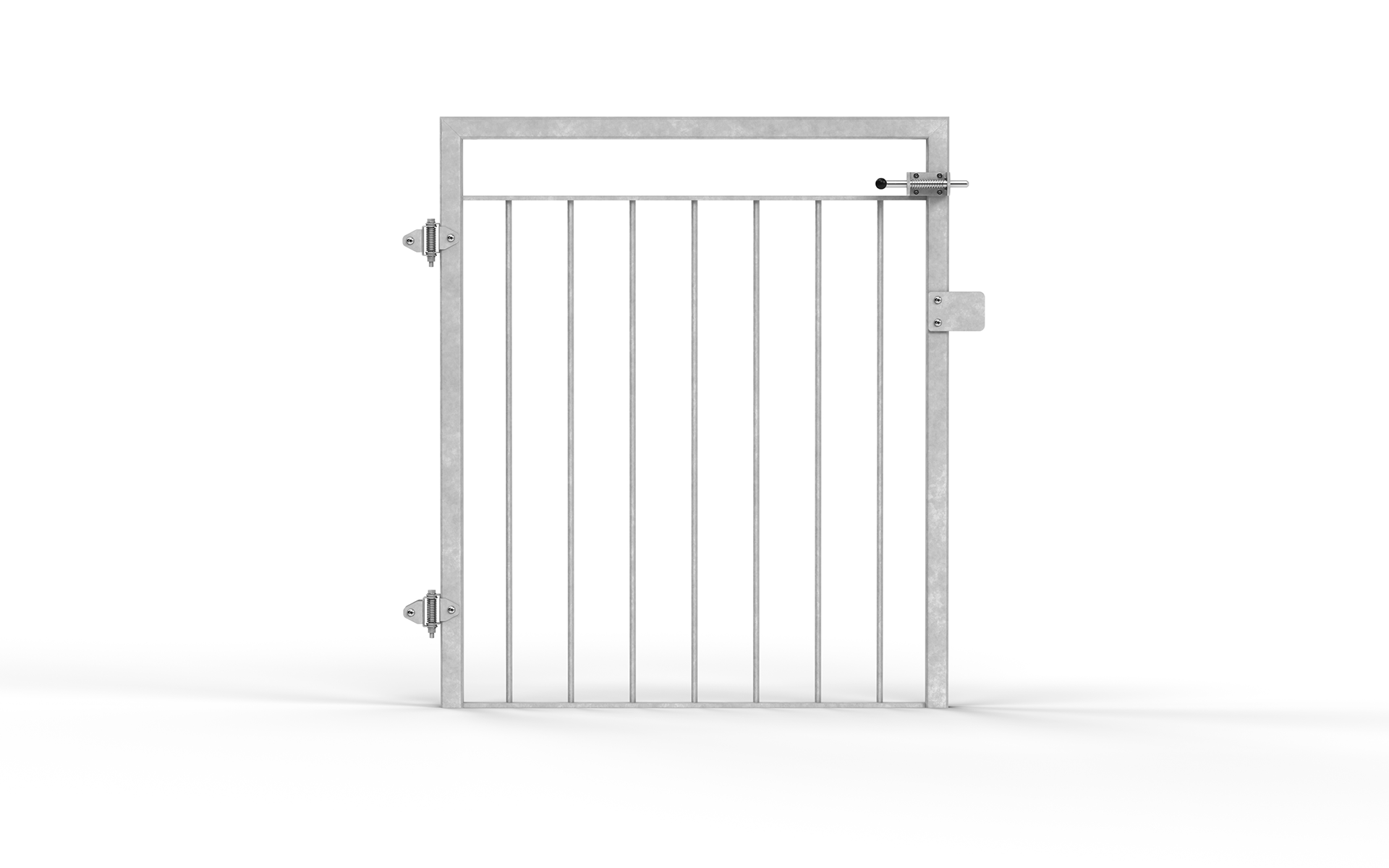

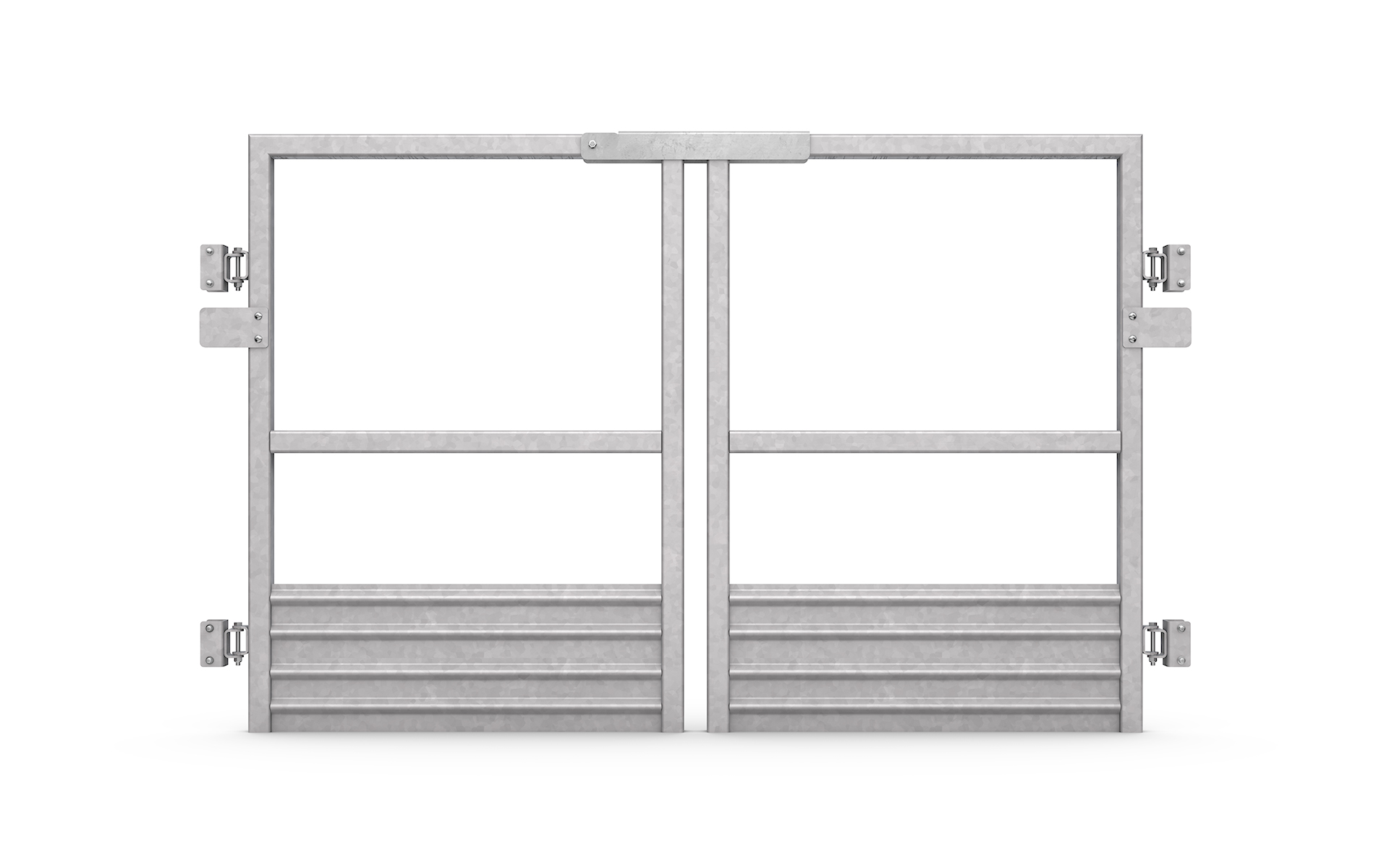

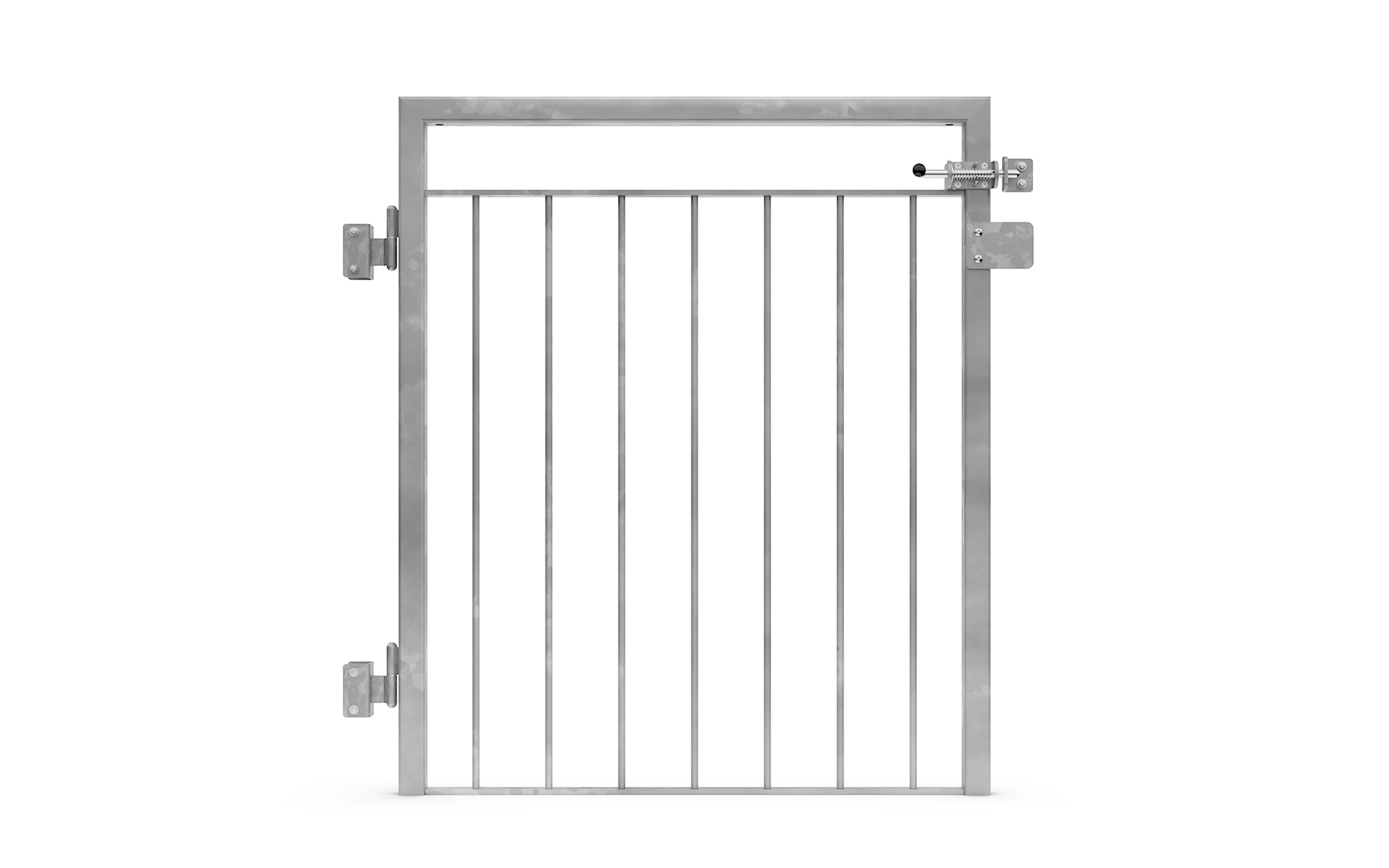

In cases where the railing requires openings, a gate can be mounted between the sections. Our gates are available in several different designs to suit your needs. A simple gate, a childproof gate and a double gate. All variants are reversible and work just as well as turning right or left. We also provide custom lengths.

Name Length (mm) Part no.
Gate 1 000 1714GR
Gate, Childproof 1 000 1714GRB
Gate, Double 1 7000 1714GR12

Weland Tip gate is a safe pallet lock that is shut both in open and closed mode. The tip gate is opened and closed easily by hand by one person. This stocked tip gate is painted in a strong yellow color as standard, RAL 1003. Dimensions as below.

Width: 1880 mm
Height: 2110 mm
Depth: 1840 mm
Widht of goods: 1710 mm
Height goods: 1250-2070 mm
Depth goods: 1800 mm

Name Part no. Stocked
Tip gate 1714VG

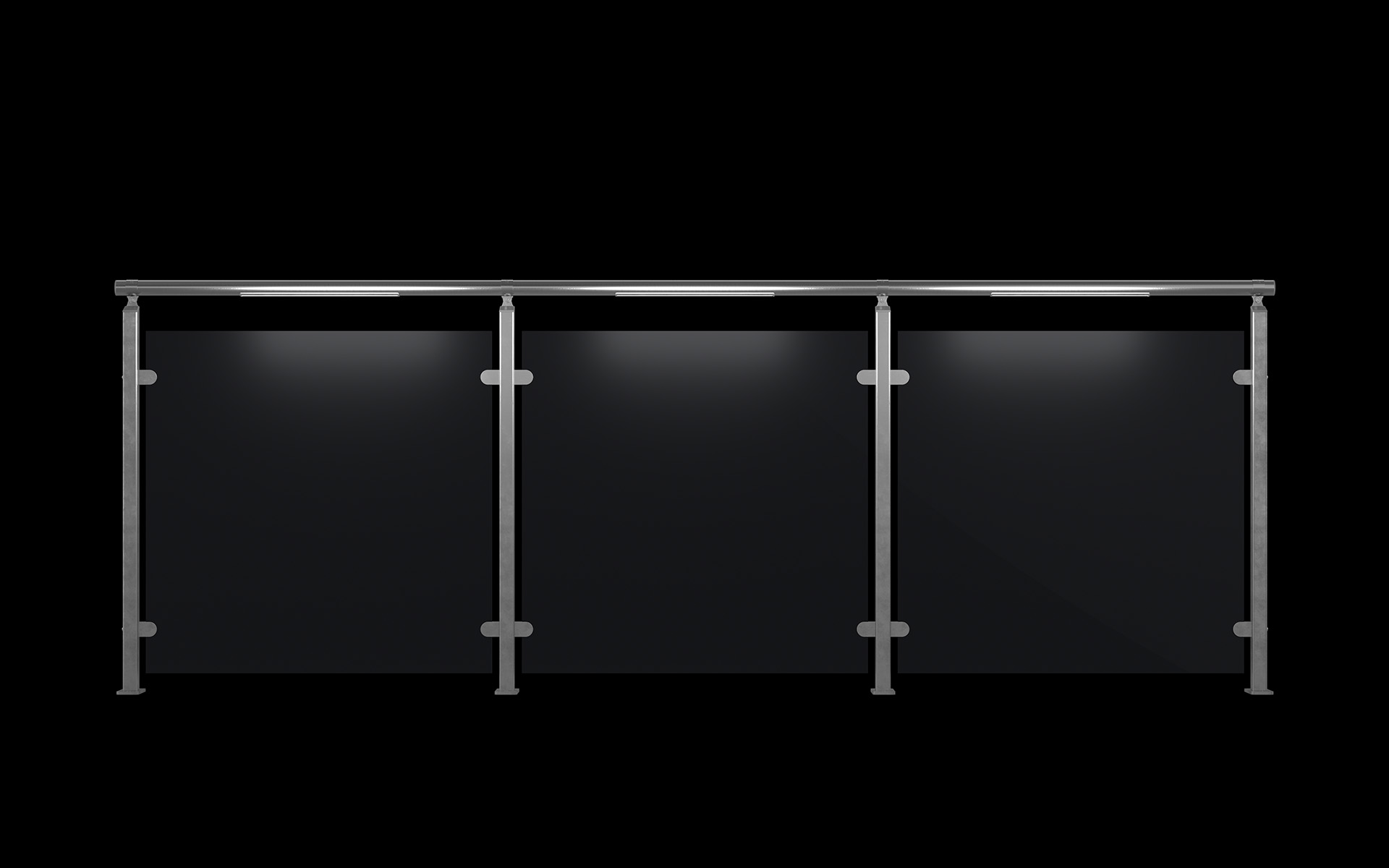

To create a decorative and pleasing milieu, all of our sectional railings can be provided with lighting. Lighting from the handrail can also act as a functional addition to light up unsafe environments. The construction is design protected.


Surface treatment

Our sectional railings are hot dip galvanized as standard. In our own plant, the railings are surface treated to withstand great stress. The method provides a very robust protection against corrosion. We also have modern painting shops at our disposal and can deliver railings for all environments in most colours. For more information, please visit our page for surface treatment.

Painted

Stainless steel

Hot dip galvanized

Downloads

Railings


  Product manual edition 7


Installation instructions Sectional railing


Sectional Railing STEP-files


Film assembly sectional railing with round bar

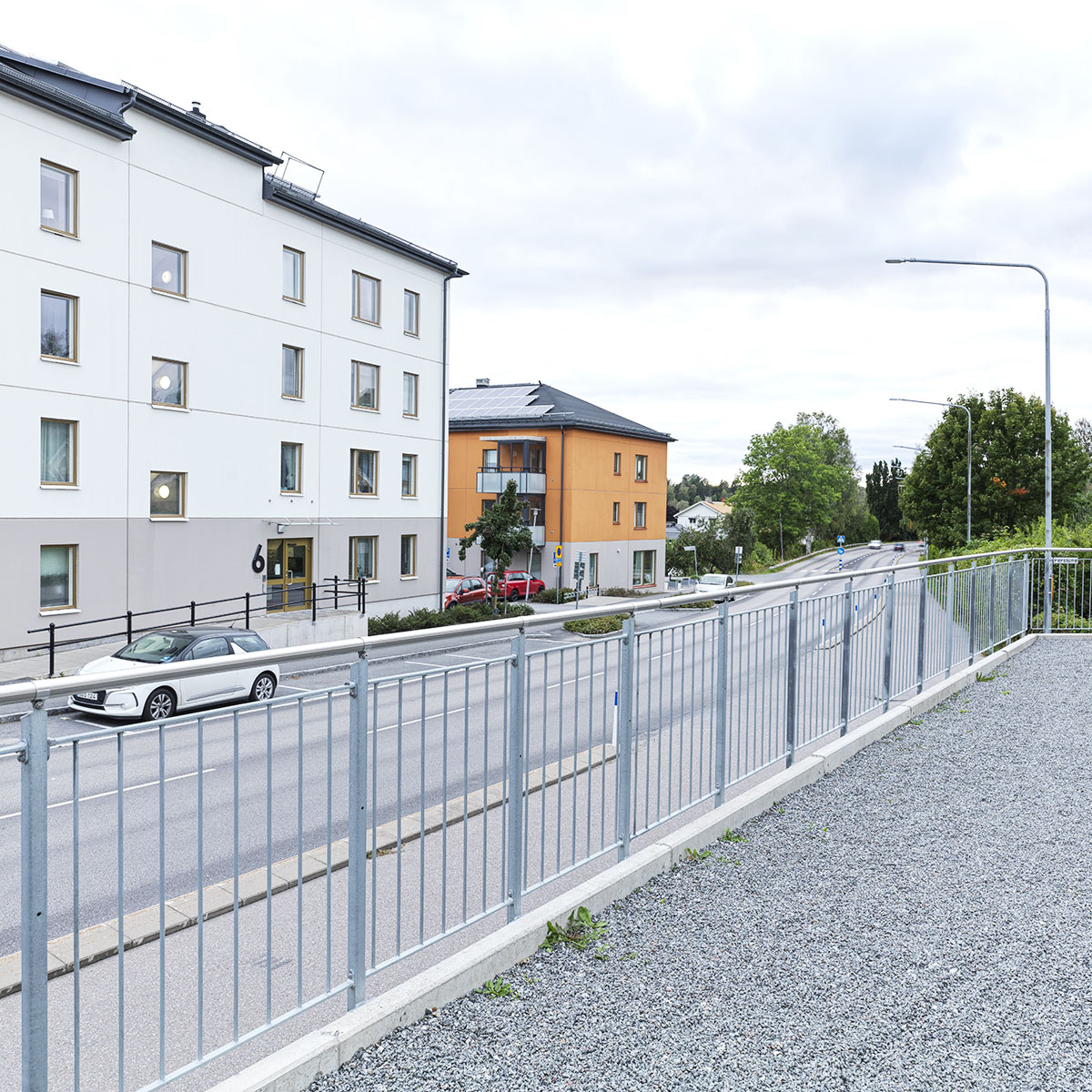

Gallery
