SIGMA BEAMS

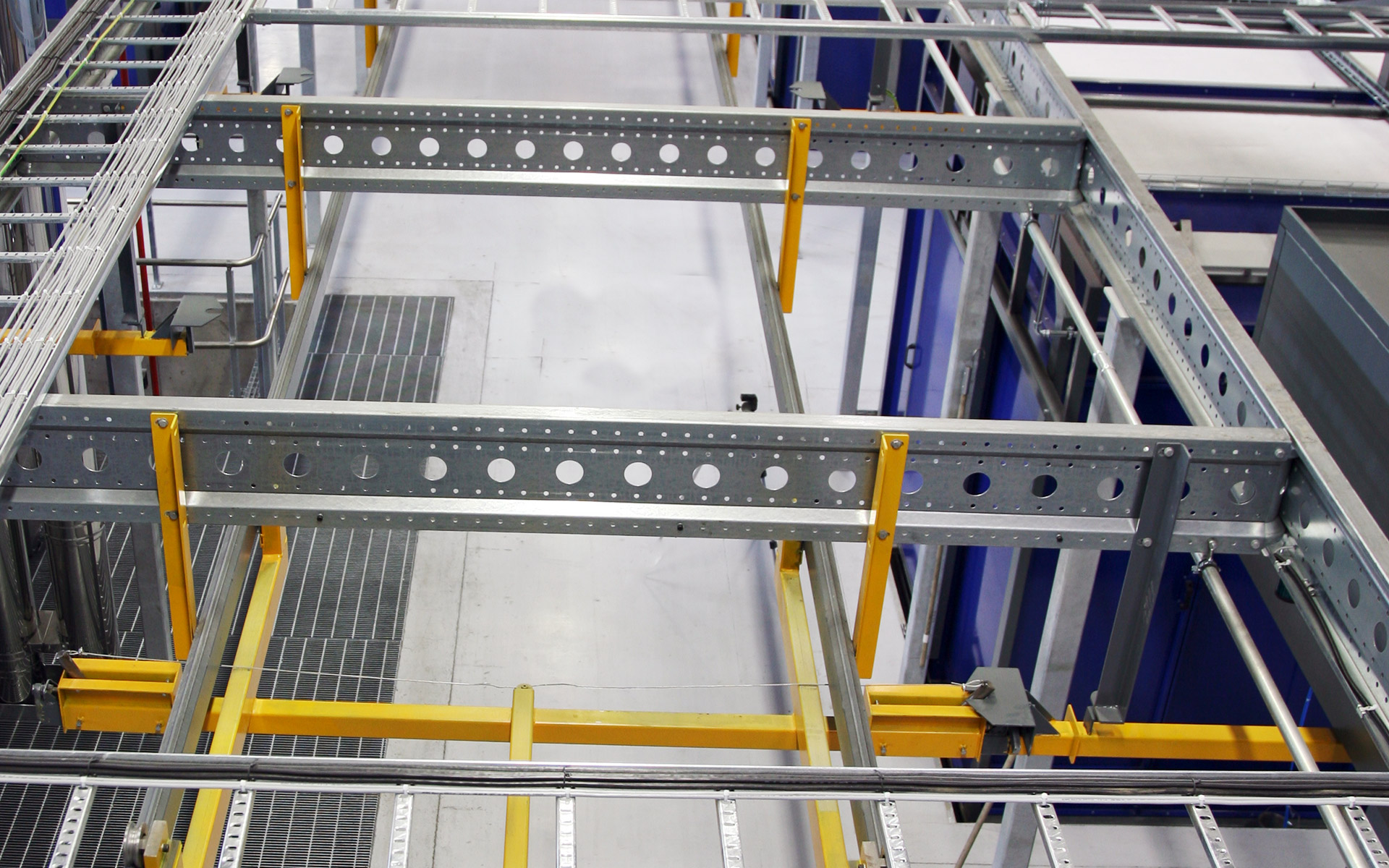

The Weland Sigma beam is a support beam with low weight and high strength. A suitable application, for example, is for mezzanine structures.
The Weland Sigma beam is a profile with low weight and high strength. The Sigma beam is very well suited to e.g. mezzanine constructions.
Sigma beams
The Sigma beams are manufactured with a yield stress of 350 N/mm2, galvanized as standard according to ZM310, in a number of different standard heights, material thicknesses and lengths, and they can be used both indoors and outdoors without any further surface treatment.
The beams have punched holes with a separation of 50 mm, which match our assembly fittings and railing systems. This means that assembly can be performed quickly and easily, with no need for welding. The Sigma beams are so light that they usually do not require lifting assistance. Our lightest model weighs under 6 kg/lpm. There are also large holes in the centre of the beam for routing electrical cables and pipes.
See download at the bottom of the section for cross-sectional data.
Finish: galvanized according to ZM310
| Beam height (mm) | Material thickness (mm) | Part no. | Stocked |
|---|---|---|---|
| 200 | 2,0 | 1951101202 | |
| 200 | 3,0 | 1951101302 | |
| 200 | 4,0 | 1951101402 | |
| 200 | 5,0 | 1951101502 | |
| 300 | 2,0 | 1951101203 | |
| 300 | 3,0 | 1951101303 | |
| 300 | 4,0 | 1951101403 | |
| 300 | 5,0 | 1951101503 | |
| 400 | 2,0 | 1951101204 | |
| 400 | 3,0 | 1951101304 | |
| 400 | 4,0 | 1951101404 | |
| 400 | 5,0 | 1951101504 | |

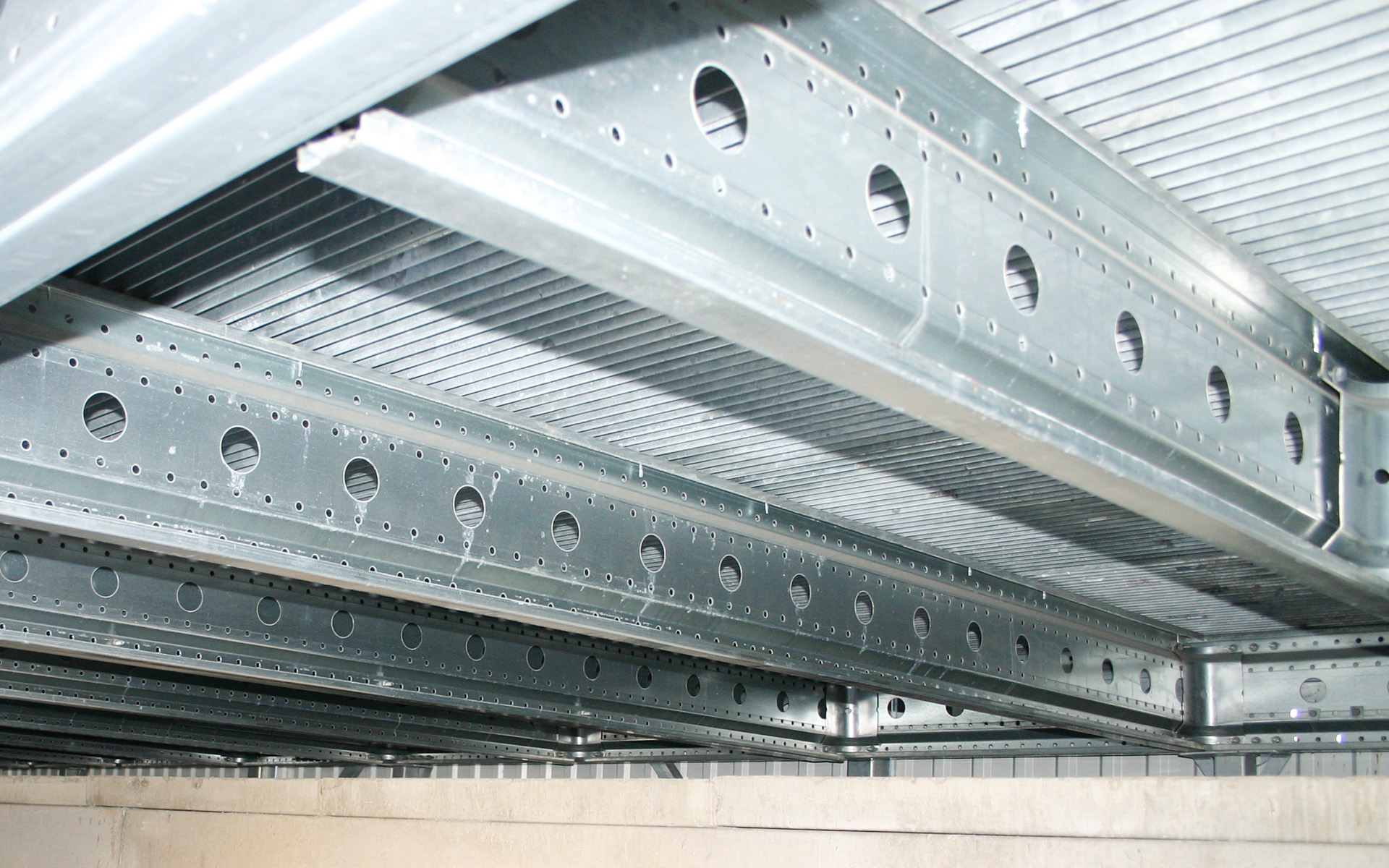

We stock Sigma beams in lengths of 6000 and 8000 mm for immediate delivery. The beams are 200 – 400 mm high with a material thickness of 2 – 5 mm. The yield stress is 350 N/mm2. We also offer cutting to length.
| Length (mm) | Height (mm) | Material thickness (mm) | Part no. | Stocked |
|---|---|---|---|---|
| 6000 | 200 | 2,0 | 195110520206000 | |
| 8000 | 200 | 2,0 | 195110520208000 | |
| 6000 | 300 | 2,0 | 195110520306000 | |
| 8000 | 300 | 2,0 | 195110520308000 | |
| 6000 | 400 | 2,0 | 195110520406000 | |
| 8000 | 400 | 2,0 | 195110520408000 | |
| 6000 | 200 | 3,0 | 195110530206000 | |
| 8000 | 200 | 3,0 | 195110530208000 | |
| 6000 | 300 | 3,0 | 195110530306000 | |
| 8000 | 300 | 3,0 | 195110530308000 | |
| 6000 | 400 | 3,0 | 195110530406000 | |
| 8000 | 400 | 3,0 | 195110530408000 | |
| 6000 | 200 | 4,0 | 195110540206000 | |
| 8000 | 200 | 4,0 | 195110540208000 | |
| 6000 | 300 | 4,0 | 195110540306000 | |
| 8000 | 300 | 4,0 | 195110540308000 | |
| 6000 | 400 | 4,0 | 195110540406000 | |
| 8000 | 400 | 4,0 | 195110540408000 | |
| 6000 | 200 | 5,0 | 195110550206000 | |
| 8000 | 200 | 5,0 | 195110550208000 | |
| 6000 | 300 | 5,0 | 195110550306000 | |
| 8000 | 300 | 5,0 | 195110550308000 | |
| 6000 | 400 | 5,0 | 195110550406000 | |
| 8000 | 400 | 5,0 | 195110550408000 |
Fittings
We stock a number of different fittings for the easy and stable assembly of Sigma beams into the desired structures. Everything is based on screwing them together using existing holes in the Sigma beams and fittings.
Fittings

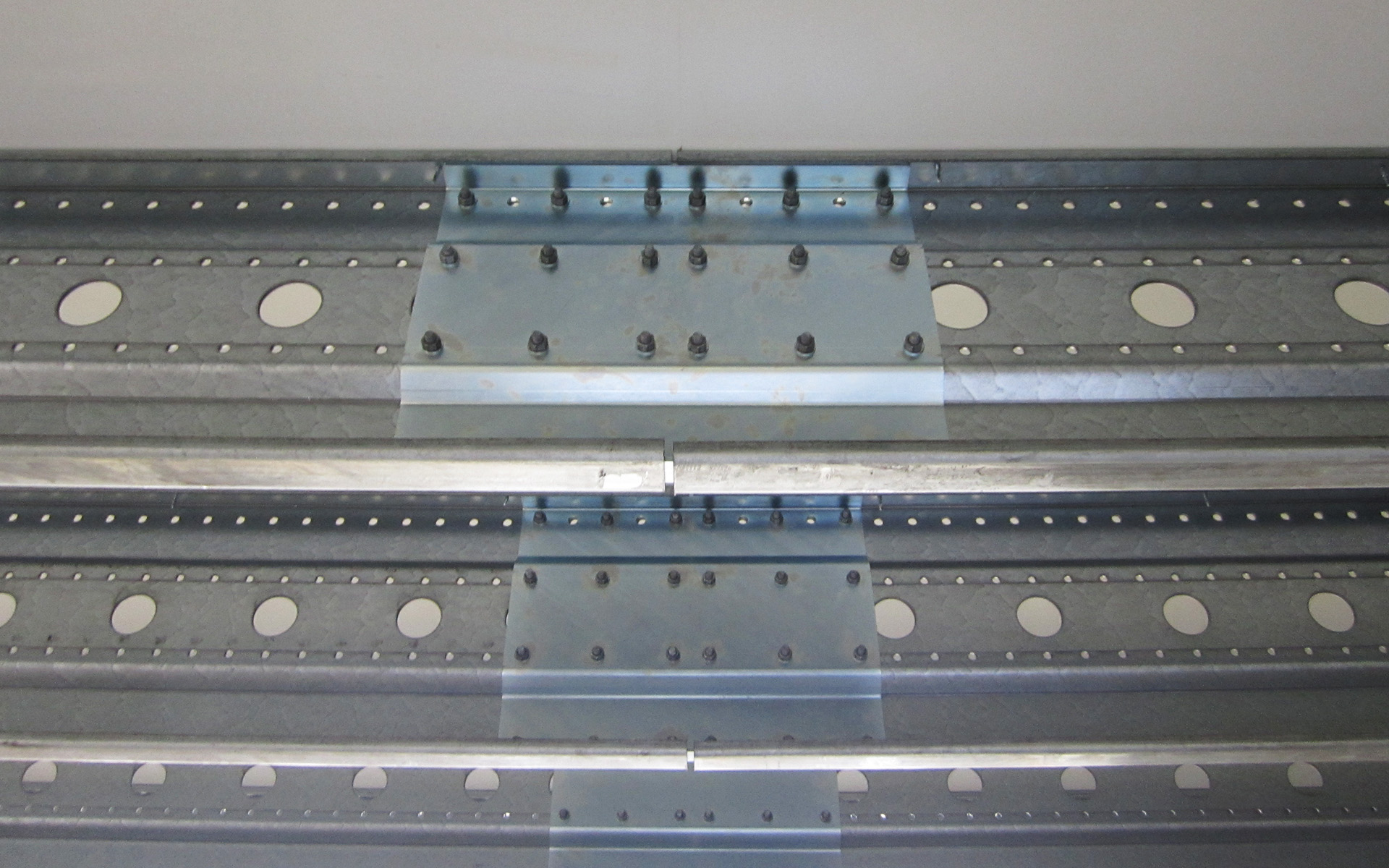

In stock, we have beam joints (length 500 mm) for all Sigma beam heights.
Steel sectional railings, which are assembled without any welding at all, are also available as accessories.
Finish: galvanized according to ZM310
| Name (mm) | Height (mm) | Part no. | Stocked |
|---|---|---|---|
| Beam joint model 200 | 188 | 19511040018 | |
| Beam joint model 300 | 288 | 19511040020 | |
| Beam joint model 400 | 388 | 19511040022 |
In stock, we have beam joints (length 500 mm) for all Sigma beam heights.
Steel sectional railings, which are assembled without any welding at all, are also available as accessories.
Finish: galvanized according to ZM310
| Name (mm) | Height (mm) | Part no. | Stocked |
|---|---|---|---|
| Beam joint model 200 | 188 | 19511040019 | |
| Beam joint model 300 | 288 | 19511040021 | |
| Beam joint model 400 | 388 | 19511040023 |

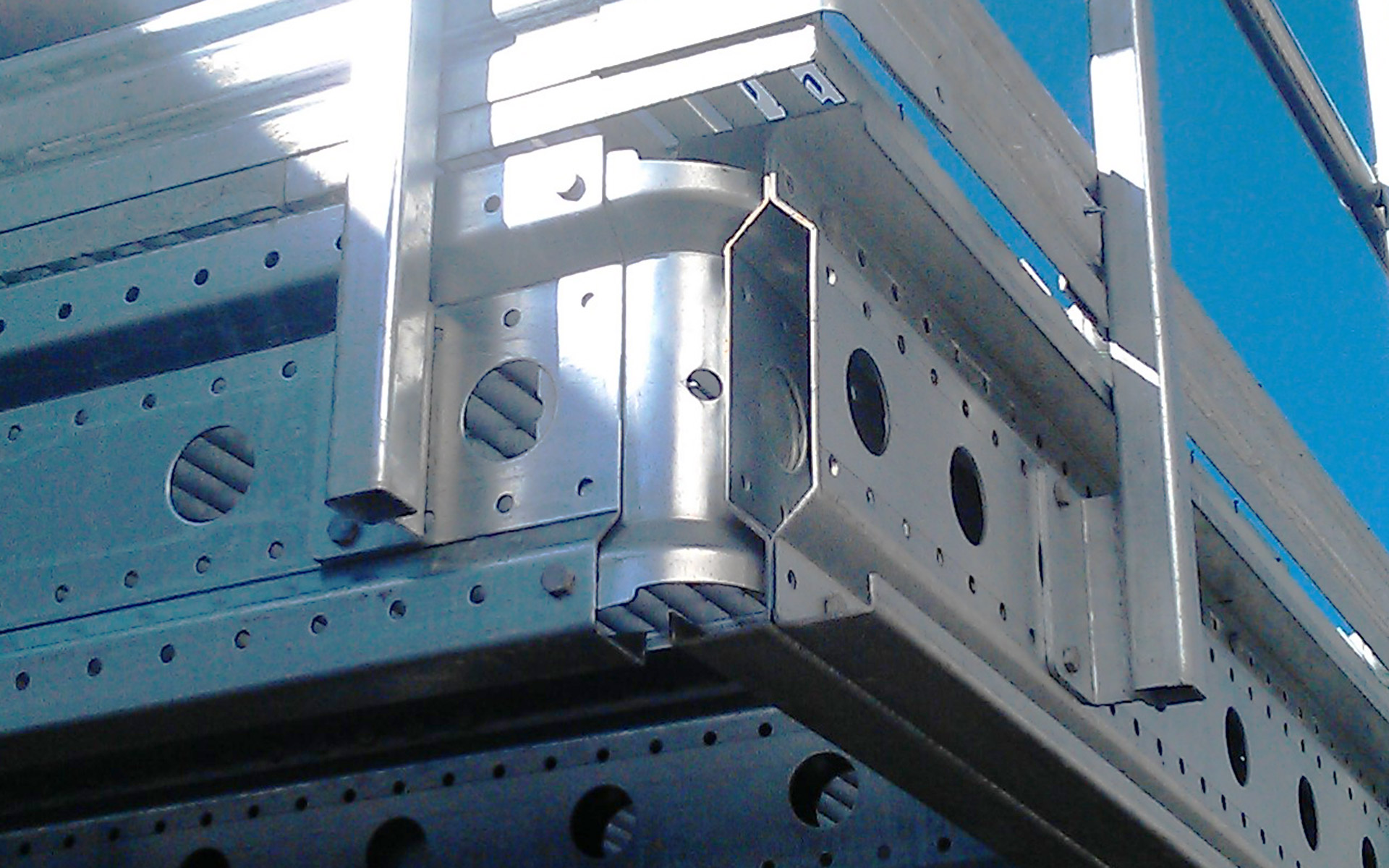

Used for right-angled corners and other right-angle joins of Sigma beams at the same height. Corner joints for all Sigma beam heights are kept in stock.
Finish: galvanized according to ZM310
| Name (mm) | Height (mm) | Part no. | Stocked |
|---|---|---|---|
| Corner joint model 200 | 200 | 19511040015 | |
| Corner joint model 300 | 300 | 19511040016 | |
| Corner joint model 400 | 400 | 19511040017 |
Surface treatment
Our Sigma beam is galvanized as standard according to ZM310 to withstand great stresses. This method provides very strong protection against corrosion. For more information about our other surface treatment options, visit our page for surface treatment.
Hot dip galvanized
