FIXINGS
Grating, slit plank type floor and plank type flooring should be anchored to the supporting structure. This can be done in various ways. Here are some alternatives that Weland recommends for securing the various grating products in the support structure. ika durkprodukterna i underredet.
Stock fixings are available as both complete and separate components. Fixings are also available in hot dip galvanized and stainless steel versions.
See more about parts for gratings, slit plank type flooring and plank type flooring and find what will suit your installation.
Complete fixings for gratings
Grating fixings are available as both complete and separate components. Standard pack for complete fixings is 100 components per box.
Complete clamps for gratings in four parts. Top part, bottom part, screw and nut. Available in screw lengths 50, 60, 70 and 80 mm. Installed without drilling into the supporting structure.
Suitable for grating types: A, D, F, H, J, HN9-T and JN9-T.
Finish: Hot dip galvanized or stainless, grade EN 1.4404
| For plank type | For grating height (mm) |
Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| D4, D6, A22x22 | 20-25 | Hot dip galvanized | 163222011 | |
| D4, D6, A22x22 | 30-35 | Hot dip galvanized | 163222021 | |
| D4, D6, A22x22 | 40-45 | Hot dip galvanized | 163222031 | |
| F4 | 20-25 | Hot dip galvanized | 163252011 | |
| F4 | 30-35 | Hot dip galvanized | 163252021 | |
| F4 | 40-45 | Hot dip galvanized | 163252031 | |
| F4 | 50 | Hot dip galvanized | 163252041 | |
| H3, H4, H6, H9 | 20-25 | Hot dip galvanized | 163332011 | |
| H3, H4, H6, H9 | 30-35 | Hot dip galvanized | 163332021 | |
| H3, H4, H6, H9 | 40-45 | Hot dip galvanized | 163332031 | |
| H3, H4, H6, H9 | 50 | Hot dip galvanized | 163332041 | |
| H3, H4, H6, H9 | 30-35 | Stainless steel | 163332022 | |
| H3, H4, H6, H9 | 40-45 | Stainless steel | 163332032 | |
| J9 | 20-25 | Hot dip galvanized | 163413011 | |
| J9 | 30-35 | Hot dip galvanized | 163413021 | |
| J9 | 40-45 | Hot dip galvanized | 163413031 | |
| J9 | 50 | Hot dip galvanized | 163413041 | |
| HN9-T, JN9-T | 20-25 | Hot dip galvanized | 163483011 | |
| HN9-T, JN9-T | 30-35 | Hot dip galvanized | 163483021 | |
| HN9-T, JN9-T | 40-45 | Hot dip galvanized | 163483031 | |
| HN9-T, JN9-T | 50 | Hot dip galvanized | 163483041 |
Complete clamp in four parts. Special top part, bottom part, screw and nut. Available in screw lengths 50, 60, 70 and 80 mm. Installed without drilling into the supporting structure.
Suitable for plank types: H and J.
Finish: Hot dip galvanized
| For plank type | For grating height (mm) | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| H3, H4, H6, H9 | 20-25 | Hot dip galvanized | 163362511 | |
| H3, H4, H6, H9 | 30-35 | Hot dip galvanized | 163362521 | |
| H3, H4, H6, H9 | 40-45 | Hot dip galvanized | 163362531 | |
| H3, H4, H6, H9 | 50 | Hot dip galvanized | 163362541 | |
| J9 | 20-25 | Hot dip galvanized | 163442511 | |
| J9 | 30-35 | Hot dip galvanized | 163442521 | |
| J9 | 40-45 | Hot dip galvanized | 163442531 | |
| J9 | 50 | Hot dip galvanized | 163442541 |
Complete clamp for close-mesh grating in four parts. Special top part, bottom part, screw and nut. Available in screw lengths 50 and 70 mm. Installed without drilling into the supporting structure.
Suitable for grating types: A, B, D and N.
Version: Hot dip galvanized or stainless, grade EN 1.4404
| For plank type | For grating height (mm) | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| B, D, N, A22x22 | 20 | Hot dip galvanized | 163280011 | |
| B, D, N, A22x22 | 20 | Stainless | 163280012 | |
| B, D, N, A22x22 | 25-40 | Hot dip galvanized | 163280031 | |
| B, D, N, A22x22 | 25-40 | Stainless | 163280032 |
Complete J-hook in three parts. J-hook, washer and nut. Fits all types of grating and A-type grating. Available with screw lengths 38, 48, 58, 68 and 78 mm. Holes must be drilled in the supporting structure.
Suitable for grating types: A, B, D, F, H, I, J and N.
Finish: Surface treatment zinc/nickel
| Dimensions | Thread length (mm) | For grating height (mm) | Part no. | Stocked |
|---|---|---|---|---|
| M8 x 38 | 20 | <20 | 163603801 | |
| M8 x 48 | 20 | 25-30 | 163604801 | |
| M8 x 58 | 20 | 35-40 | 163605801 | |
| M8 x 68 | 20 | 45-50 | 163606801 | |
| M8 x 78 | 20 | 55-60 | 163607801 |
Separate fixings for gratings
Grating fixings are available as both complete and separate components. Clips are available for ensuring load transfer between gratings. Standard pack for separate fixing components is 100 components per box.
NOTE! The top part with dimensions 22 x 20 mm can only be used together with screw M8x50 – M8x80 mm.
Finish: Hot dip galvanized, ZM310 or stainless A4
| For plank type | Dimensions (mm) | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| D4, D9, A22x22 | 22 x 20 | Hot dip galvanized | 163222001 | |
| F4, F9 | 25 x 20 | Hot dip galvanized | 163252001 | |
| H3, H4, H6, H9 | 33 x 20 | ZM310 | 163332001 | |
| H3, H4, H6, H9 | 33 x 20 | Stainless | 163332002 | |
| J9 | 41 x 30 | ZM310 | 163413001 |
Finish: ZM310 or stainless A4
| For plank type | Diameter | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| B, D, N, A22x22 | 28 | ZM310 | 163280001 | |
| B, D, N, A22x22 | 28 | Stainless | 163280002 |
Finish: ZM310
| For plank type | Dimensions (mm) | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| H3, H4, H6, H9 | 36 x 25 | ZM310 | 163362501 | |
| J9 | 44 x 25 | ZM310 | 163442501 |
Finish: ZM310
| For plank type | Dimensions (mm) | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| HN9-T, JN9-T | 48 x 30 | ZM310 | 163483001 |
Finish: Hot dip galvanized, Zn/Ni or stainless A4
| For grating height (mm) | Dimensions | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| 20-25 | M8 x 50 | Zn/Ni | 163605001 | |
| 30-35 | M8 x 60 | Hot dip galvanized | 163606001 | |
| 30-35 | M8 x 60 | Stainless | 163606002 | |
| 40-45 | M8 x 70 | Hot dip galvanized | 163607001 | |
| 40-45 | M8 x 70 | Stainless | 163607002 | |
| 50 | M8 x 80 | Hot dip galvanized | 163608001 |

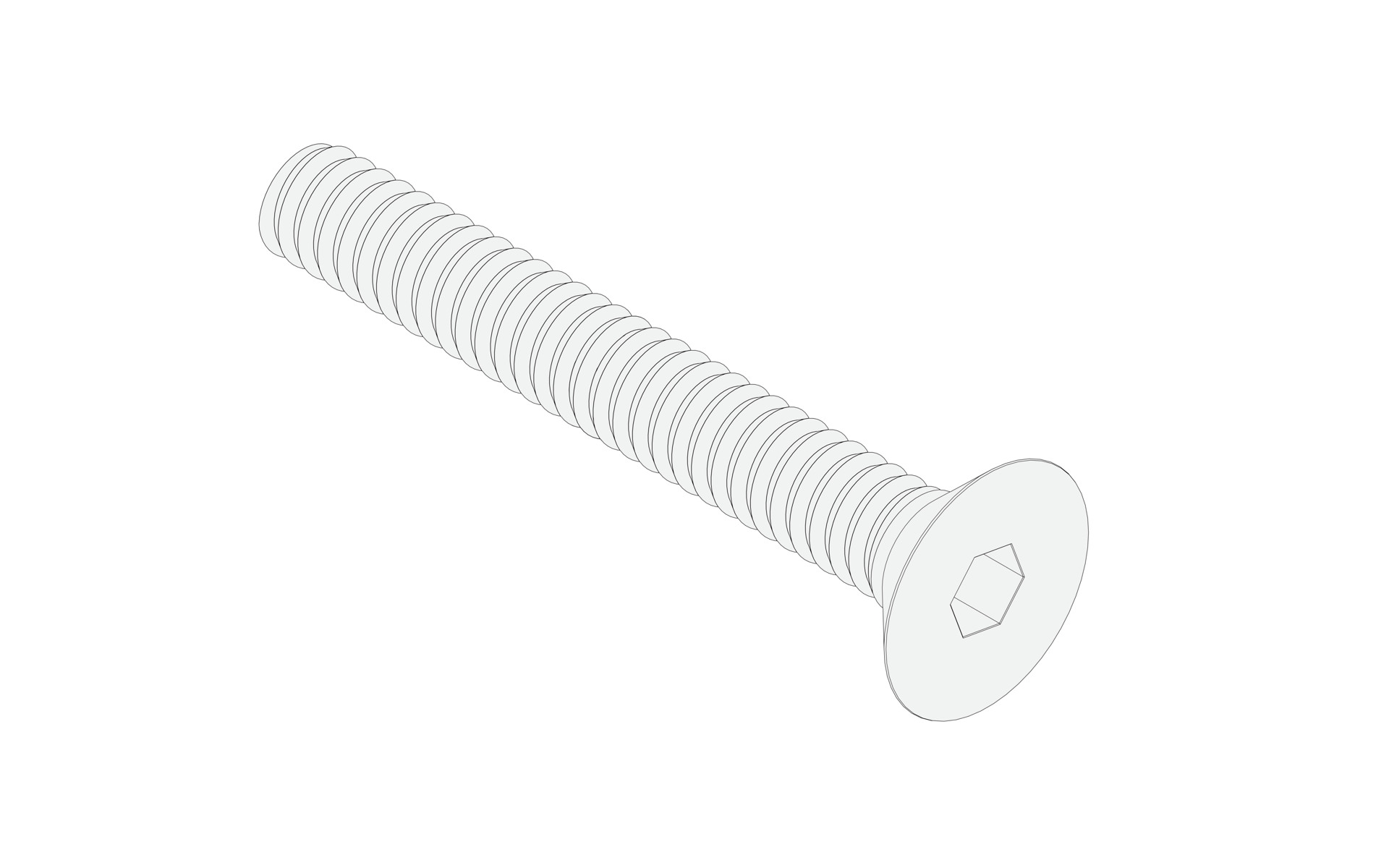

For plank type: H3, H4, H6, H9, J9
Finish: Zn/Ni, hot dip galvanized or stainless A4
| For grating height (mm) | Dimensions | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| 20-25 | M8 x 50 | Zn/Ni | 1636050041 | |
| 20-25 | M8 x 50 | Stainless steel | 1636050042 | |
| 30-40 | M8 x 70 | Hot dip galvanized | 1636070041 | |
| 30-40 | M8 x 70 | Stainless steel | 1636070042 |
Finish: Zn/Ni
| For grating height (mm) | Dimensions | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| 20-30 | M8 x 50 | Zn/Ni | 163615001 |
Bit capacity max. 6 mm thickness.
Finish: Zn/Ni
| For grating height (mm) | Dimensions | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| 20-30 | 6,3 x 50 | Zn/Ni | 163145001 |
Torx T30. Bit capacity max. 6 mm thickness.
Finish: Zn/Ni
| For grating height (mm) | Dimensions | Part no. | Stocked |
|---|---|---|---|
| 25-35 | 6,3 x 60 | 163636001 |
Drilling screw with thread section and screw head made of stainless steel A2 with drill tip made of carbon steel. Bit capacity max. 12 mm thickness.
Finish: Stainless
| For grating height (mm) | Dimensions | Part no. | Stocked |
|---|---|---|---|
| 20-25 | 5,5 x 50 | 163555002 | |
| 30-40 | 5,5 x 65 | 163556502 |

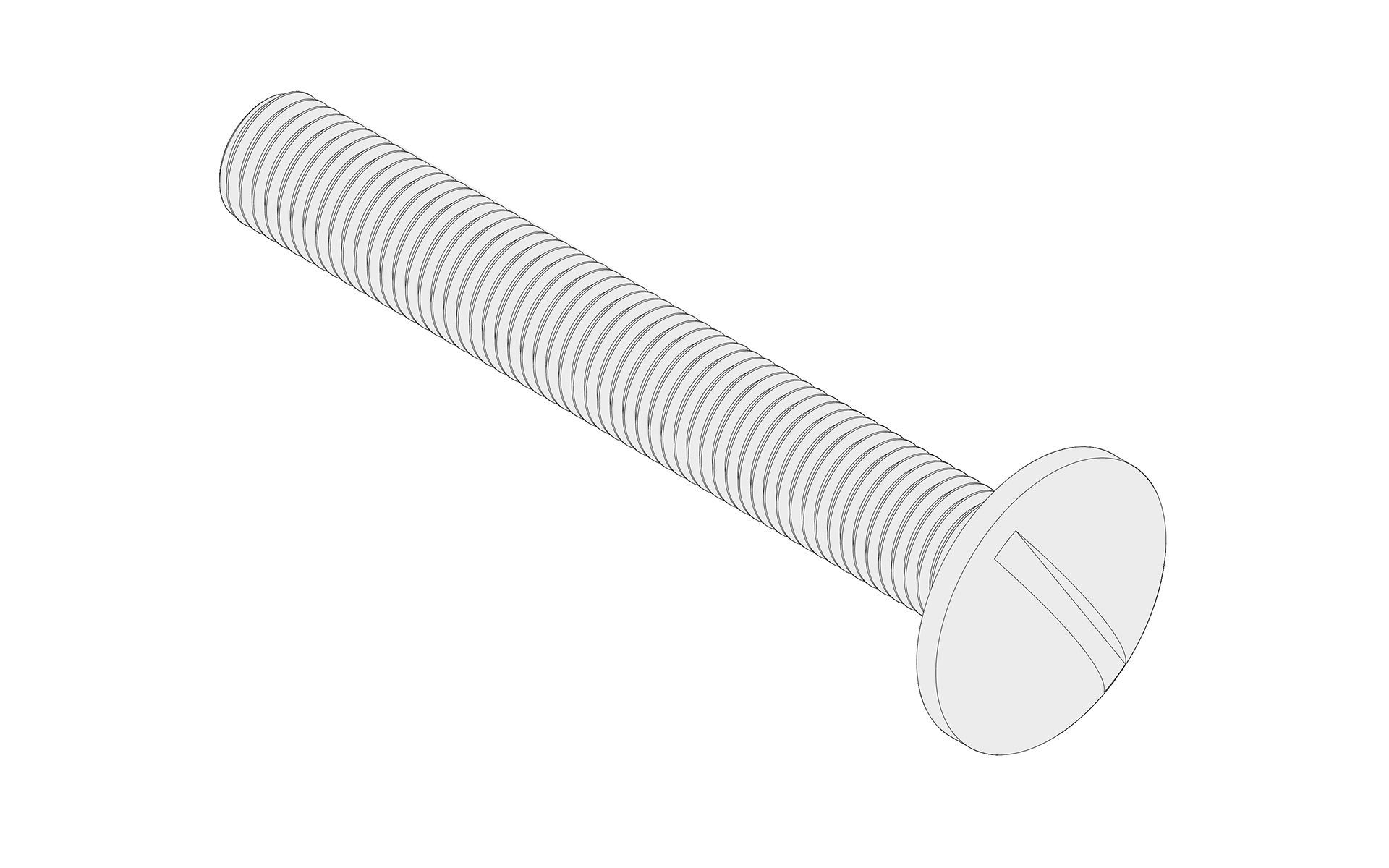

Track screw with fillister head.
Finish: Stainless A2
| For plank type | Dimensions | Part no. | Stocked |
|---|---|---|---|
| A33x11 height 20-40 mm | M8 x 60 | 164608602 |
Finish: Zn/Ni
| Name | Dimensions (mm) | Part no. | Stocked |
|---|---|---|---|
| Drill for self-cutting screw | 7,6 | 16376 |
Finish: ZM310 or stainless A4
| For plank type | Dimensions | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| A, B, D, F, H, N | 40 mm | ZM310 | 163400001 | |
| A, B, D, F, H, N | 40 mm | Stainless | 163400002 | |
| J, HN9-T, JN9-T | 50 mm | ZM310 | 163500001 | |
| J, HN9-T, JN9-T | 50 mm | Stainless | 163500002 |
Fits e.g. the above bottom section. M8
Finish: ZM310 or stainless A4
| For plank type | Dimensions | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| A, B, D, F, H, N | 15 x 18 mm | Zn/Ni | 163601501 | |
| A, B, D, F, H, N | 15 x 18 mm | Stainless | 163601502 | |
| J, HN9-T, JN9-T | 22 x 27 mm | Zn/Ni | 163602201 | |
| J, HN9-T, JN9-T | 22 x 27 mm | Stainless | 163602202 |
Fits e.g. J-hook. M12.
| Name | Part no. | Stocked |
|---|---|---|
| M12 RF A4 | 1646120012 |
The clips counteract deflection between grating. The clips
contribute to keeping the grating as one whole. Suitable for all
types of grating with heights 20, 25, 30, 35 and 40 mm.
Suitable for grating types: A, B, D, F, H, I, J and N.
Finish: Stainless, grade EN 1.4404
Installation instructions (See slideshow)
1. Push the clip into the gap between two gratings.
2. Turn the clip.
3. Knock the top part of the clip down with a hammer to secure.
| For grating height (mm) | Part no. | Stocked |
|---|---|---|
| 20 | 163032032 | |
| 25 | 163032532 | |
| 30 | 163033032 | |
| 35 | 163033532 | |
| 40 | 163034032 |
Separate fixing components for plank type flooring
Separate fixing components for plank type flooring. Standard pack for separate fixing components is 100 components per box.
Fixing screw MFT Taptite M6x65. Holes must be drilled in the supporting beams.
Suitable for grating types: Plank type flooring
Finish: ZnNi
| Name | For plank type | Part no. | Stocked |
|---|---|---|---|
| Screw | Plank type flooring 50 mm | 0501381 |
Complete fixing components for slit plank type flooring
Slit plank type flooring fixings are available as both complete and separate components. The fixing components can also be used for LDS slit plank type flooring. Standard pack for complete fixings is 100 components per box.
Complete clamp in three parts for fixing slit plank type flooring. Top section, screw (M8) and nut. Available in screw lengths 70 and 100 mm. Holes must be drilled in the supporting beams.
Suitable for grating types: Slit plank type flooring with 40 and 70 mm height.
Finish: Hot dip galvanized top section. Stainless screw and nut.
| Name | For grating height (mm) | Part no. | Stocked |
|---|---|---|---|
| Complete clamp | 40 | 1634002 | |
| Complete clamp | 70 | 1637002 |
Complete clamp in four parts for fixing slit plank type flooring. Top part, bottom part, screw and nut. Available in screw lengths 70 and 100 mm. Installed without drilling into the supporting structure.
Suitable for grating types: Slit plank type flooring with 40 and 70 mm height.
Finish: Hot dip galvanized top and bottom section. Stainless screw and nut.
| Name | For grating height (mm) | Part no. | Stocked |
|---|---|---|---|
| Complete clamp | 40 | 1634001 | |
| Complete clamp | 70 | 1637001 |

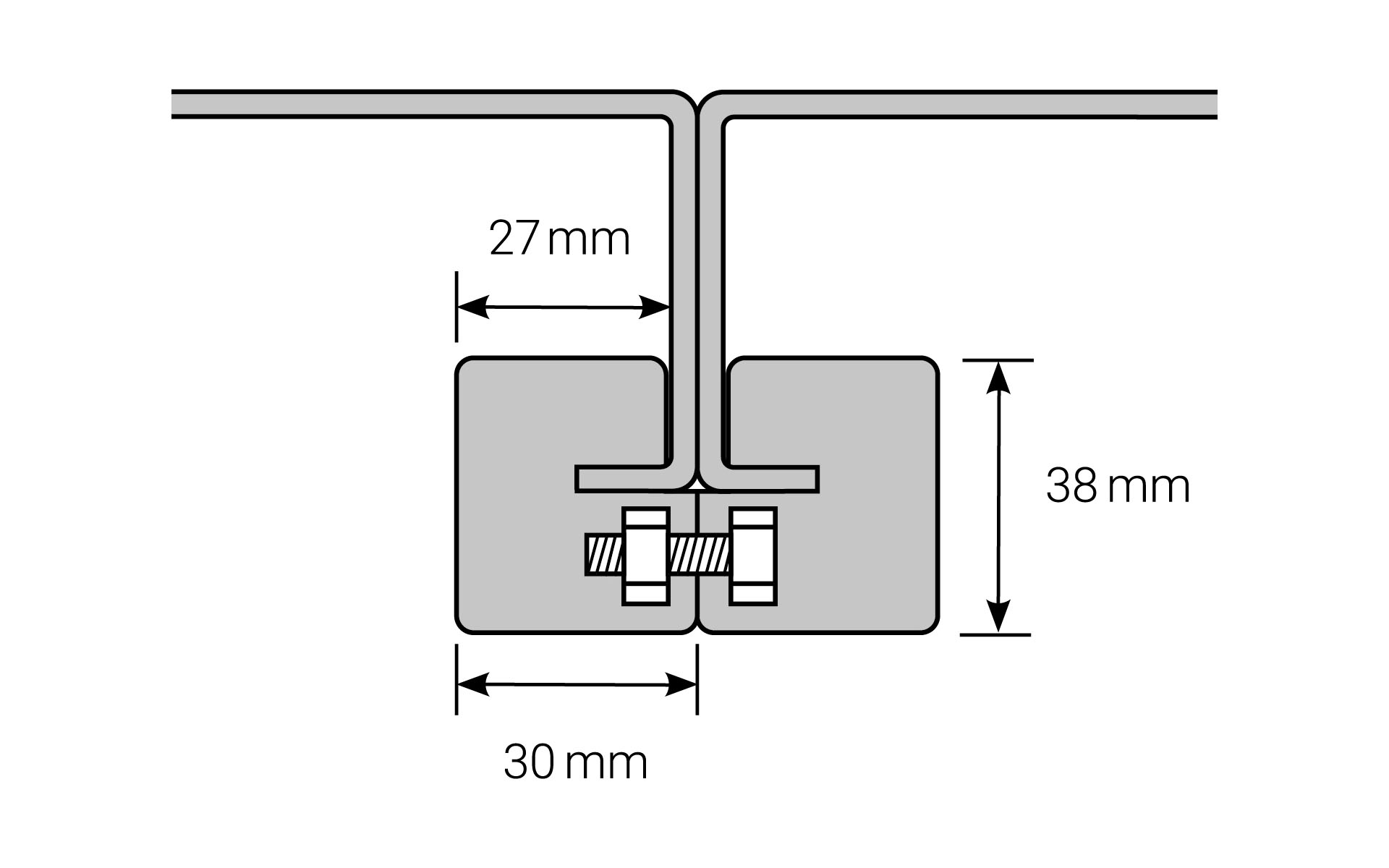

Separate fixing components for slit plank type flooring
Many separate components such as screw are available. A standard pack comprises 100 components per box.

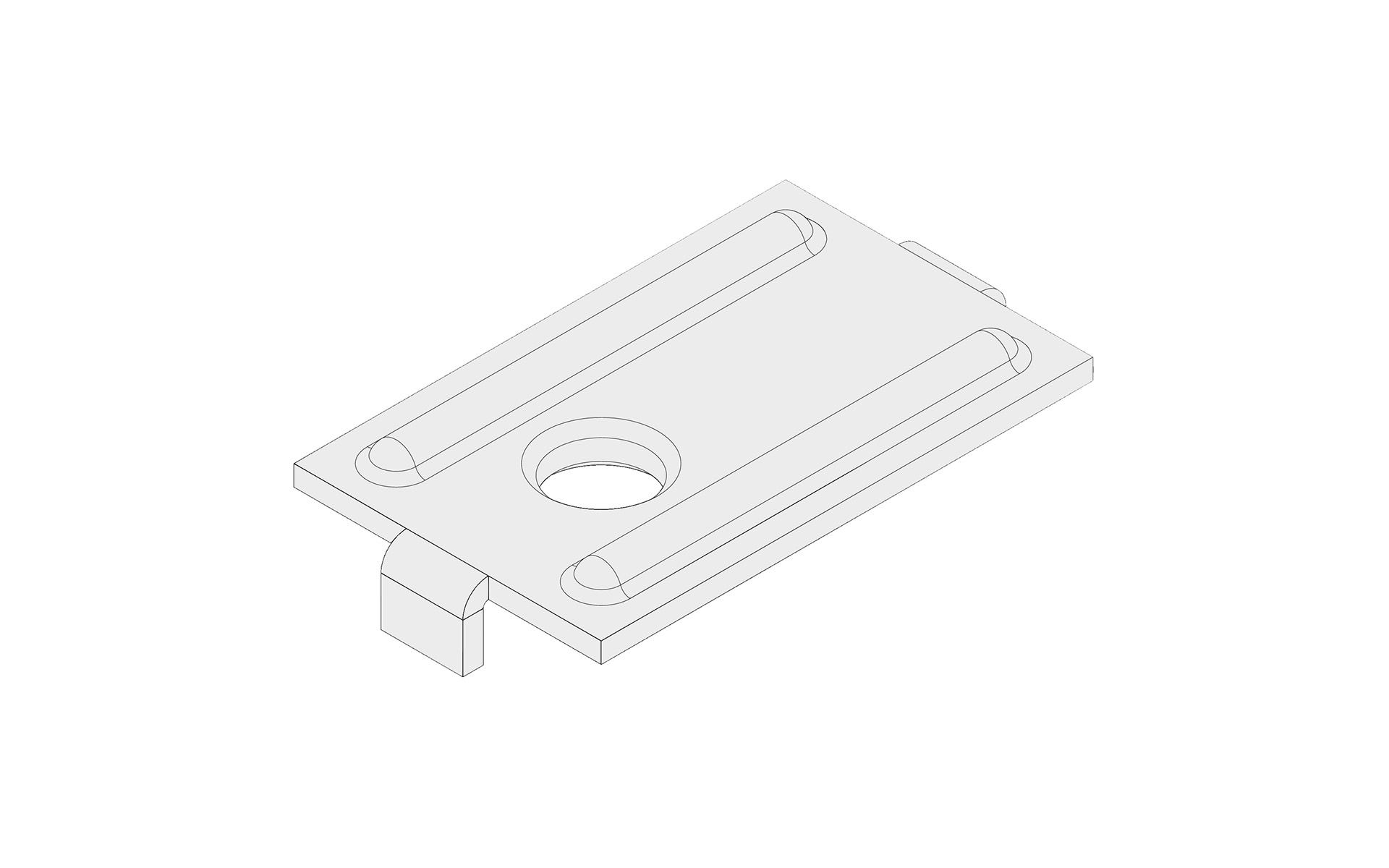

Top section for slit plank type flooring and plank type flooring LDS.
Finish: Hot dip galvanized
| For plank type | Dimensions (mm) | Surface treatment | Part no. | Stocked |
|---|---|---|---|---|
| Slit grating | 22 x 60 | Hot dip galvanized | 16360221 |
